Only Rear Wiper Does Not Operate

REAR WIPER AND WASHER SYSTEM


Only Rear Wiper Does Not Operate

1.CHECK COMBINATION SWITCH (WIPER SWITCH) INPUT SIGNAL

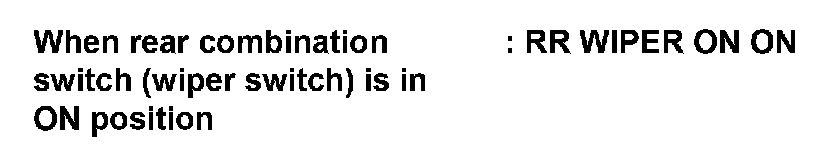

Select "BCM" on CONSULT-III. With "WIPER" data monitor, make sure "RR WIPER ON" turns ON-OFF according to operation of combination switch (wiper switch).





OK or NG
OK - Replace BCM. Service and Repair .
NG - Check the combination switch (wiper switch). System Description .
