B1777

DTC Logic

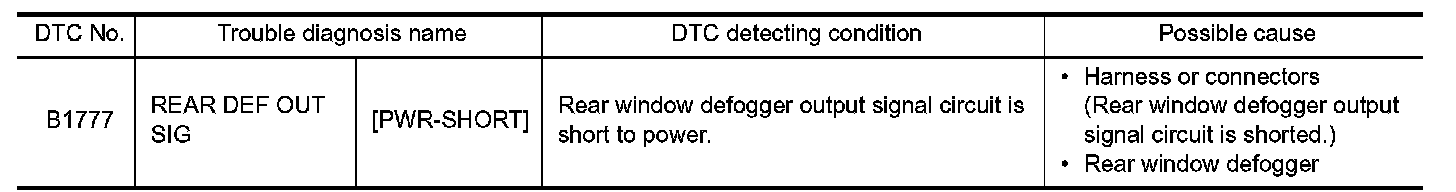

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, Related Tests, Information And Procedures, and determine trouble diagnosis order.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start engine.
2.Operate soft top to fully open and fully close.
3.Select "Self Diagnostic Result" mode of "CONVERTIBLE ROOF" using CONSULT.
4.Check DTC.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure

Roadster.
