B177A

DTC Logic

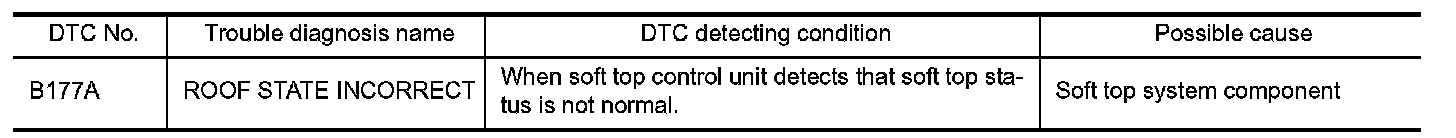

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, Related Tests, Information And Procedures, and determine trouble diagnosis order.






DTC CONFIRMATION PROCEDURE


1. ADJUST SOFT TOP POSITION

1.Turn ignition switch OFF and wait at least 4 minutes.
2.Manually operate soft top to fully open.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Start engine.
2.Operate soft top to fully open and fully close.
3.Select "Self Diagnostic Result" mode of "CONVERTIBLE ROOF" using CONSULT.
4.Check DTC.
Is DTC detected?
YES- Go to B177B.
NO- INSPECTION END


Diagnosis Procedure


1. CHECK SOFT TOP SYSTEM COMPONENT

Check that soft top system component is installed normally and is not damaged.
Is the inspection result normal?
YES- INSPECTION END
NO- Repair or replace malfunctioning part.
