B261F

Description

BCM judges that clutch pedal is operated by clutch interlock switch and clutch pedal position switch operation.


DTC Logic

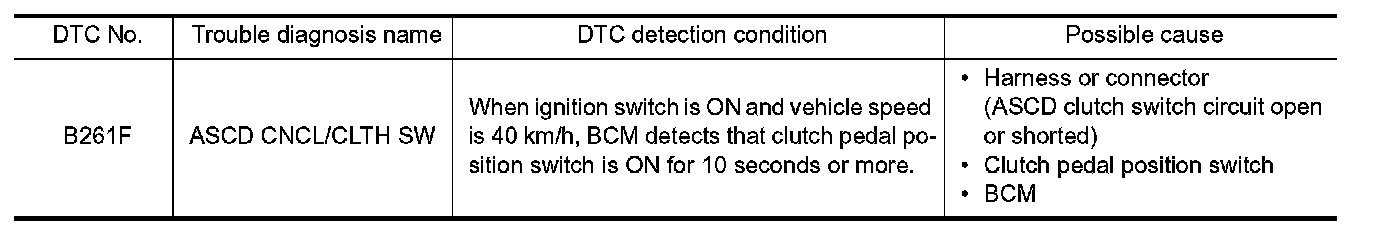

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Drive the vehicle at the vehicle speed of 40 km/h (24.8 MPH) or more wait 10 seconds or more.
2.Check "Self-diagnostic result" using CONSULT.
Is DTC detected?
YES - Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK CLUTCH PEDAL POSITION SWITCH POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect clutch pedal position switch connector.
3.Turn ignition switch ON.

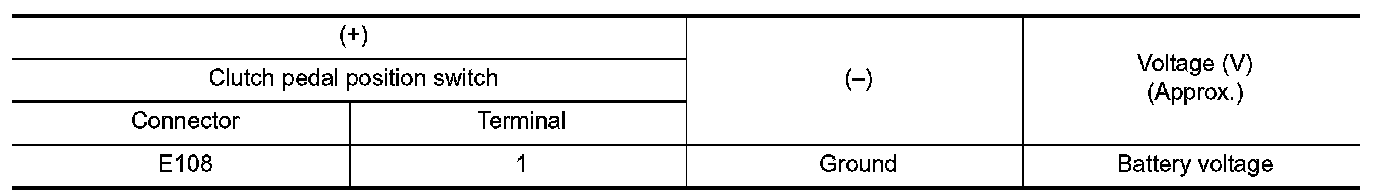

4.Check voltage between clutch pedal position switch harness connector and ground.





Is the inspection result normal?
YES- GO TO 2.
NO-1- Check 10 A fuse [No. 3, located in the fuse block (J/B)]
NO-2- Check harness for open or short between clutch pedal position switch and fuse.

2. CHECK CLUTCH PEDAL POSITION SWITCH SIGNAL

1.Turn ignition switch OFF.
2.Connect clutch pedal position switch connector.
3.Disconnect BCM connector.
4.Turn ignition switch ON.
5.Check voltage between BCM harness connector and ground.





Is the inspection result normal?
YES- Replace BCM. Removal And Installation.
NO- GO TO 3.

3. CHECK CLUTCH PEDAL POSITION SWITCH SIGNAL CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect clutch pedal position switch connector.
3.Check continuity between clutch pedal position switch harness connector and BCM harness connector.





4.Check continuity between clutch pedal position switch harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace harness.

4. CHECK CLUTCH PEDAL POSITION SWITCH

.
Is the inspection result normal?
YES- GO TO 5.
NO- Replace clutch pedal position switch. Exploded View.

5. CHECK INTERMITTENT INCIDENT

Intermittent Incident Regular Grade.
- INSPECTION END


Component Inspection


1. CHECK CLUTCH PEDAL POSITION SWITCH

1.Turn ignition switch OFF.
2.Disconnect clutch pedal position switch connector.
3.Check continuity between clutch pedal position switch terminals.
.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace clutch pedal position switch. Exploded View.
