Accessory Control Display: Testing and Inspection




FRONT DISPLAY UNIT

Reference Value

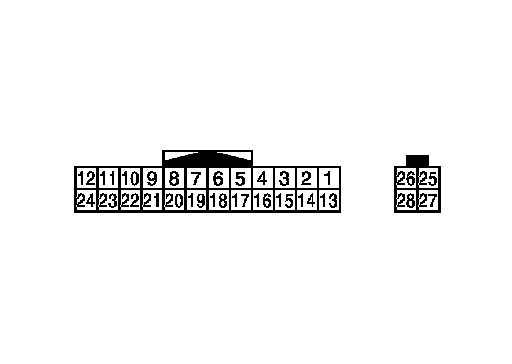

TERMINAL LAYOUT

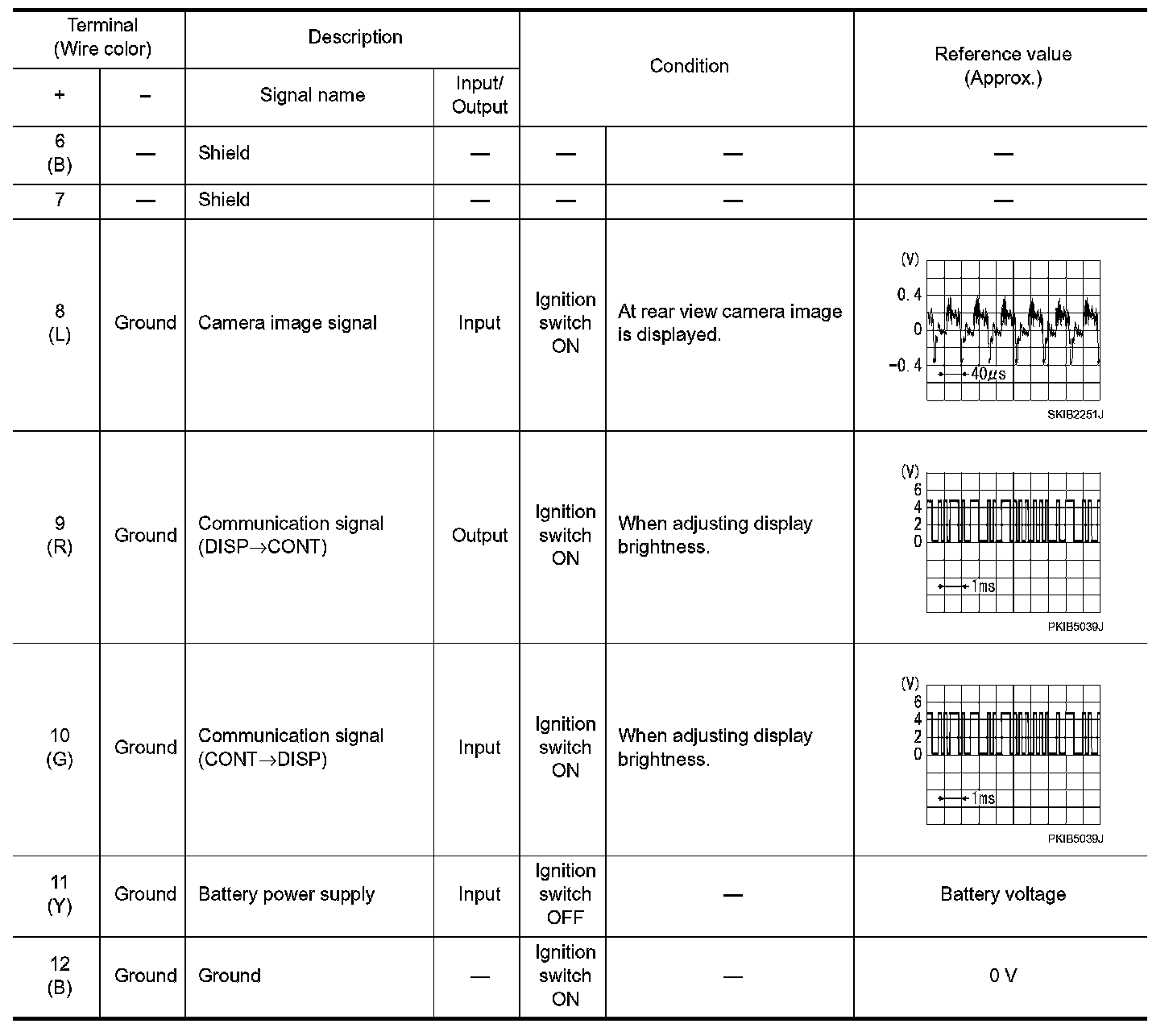

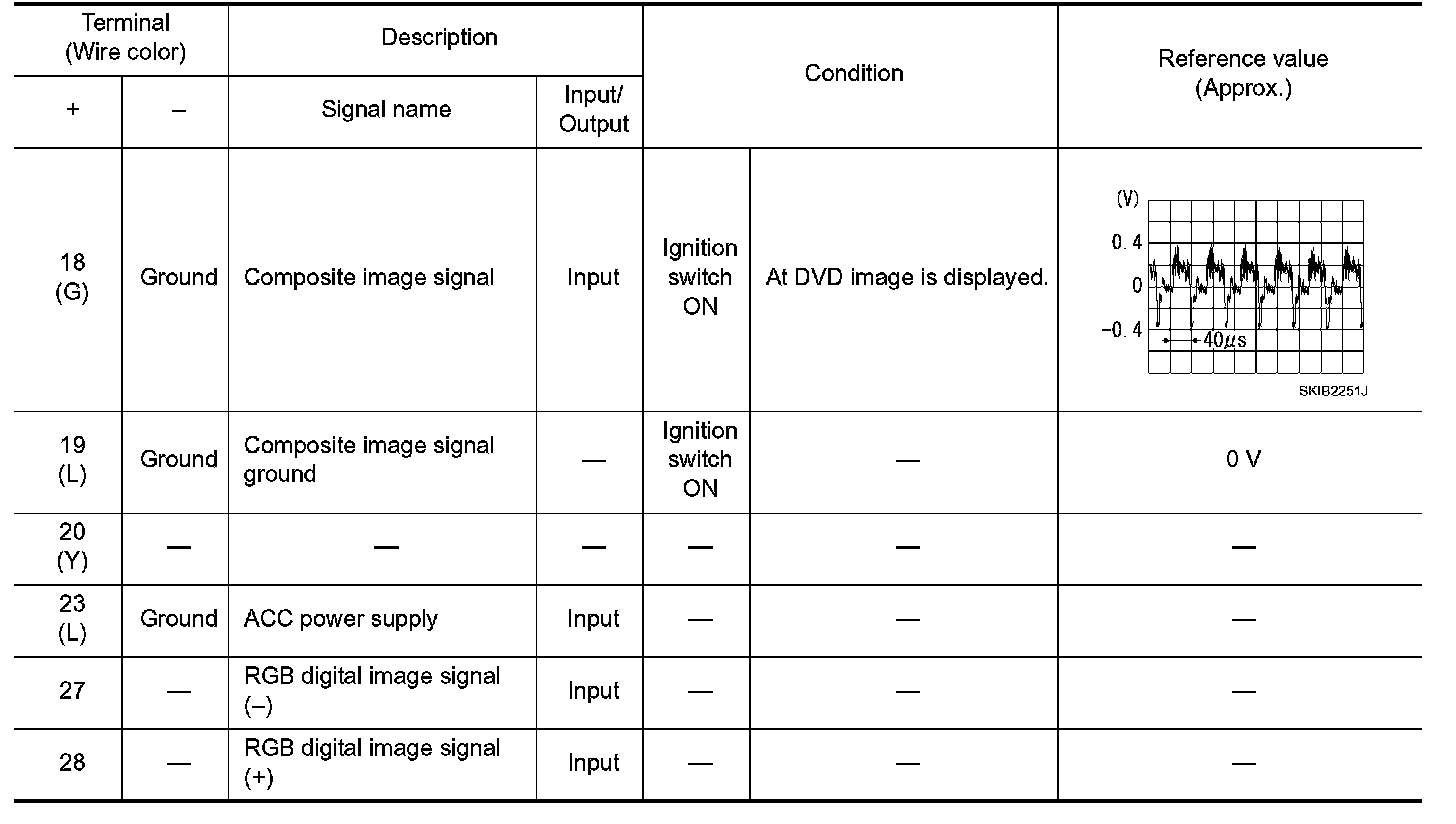

PHYSICAL VALUES
