Home
>>
Nissan-Datsun
>>
2012
>>
370Z V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Locations
>>
Turn Signal And Hazard Warning Lamp System
Turn Signal And Hazard Warning Lamp System
COMPONENT PARTS

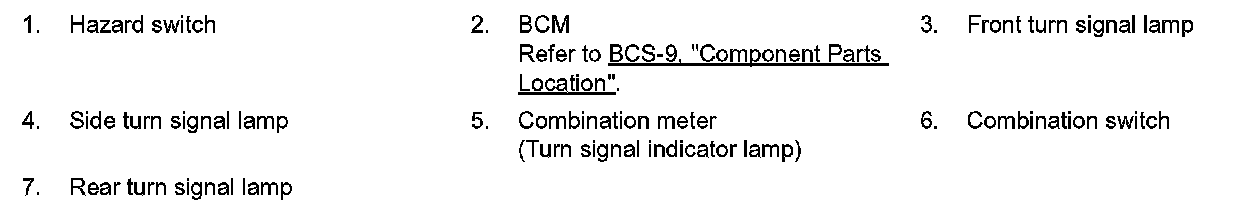

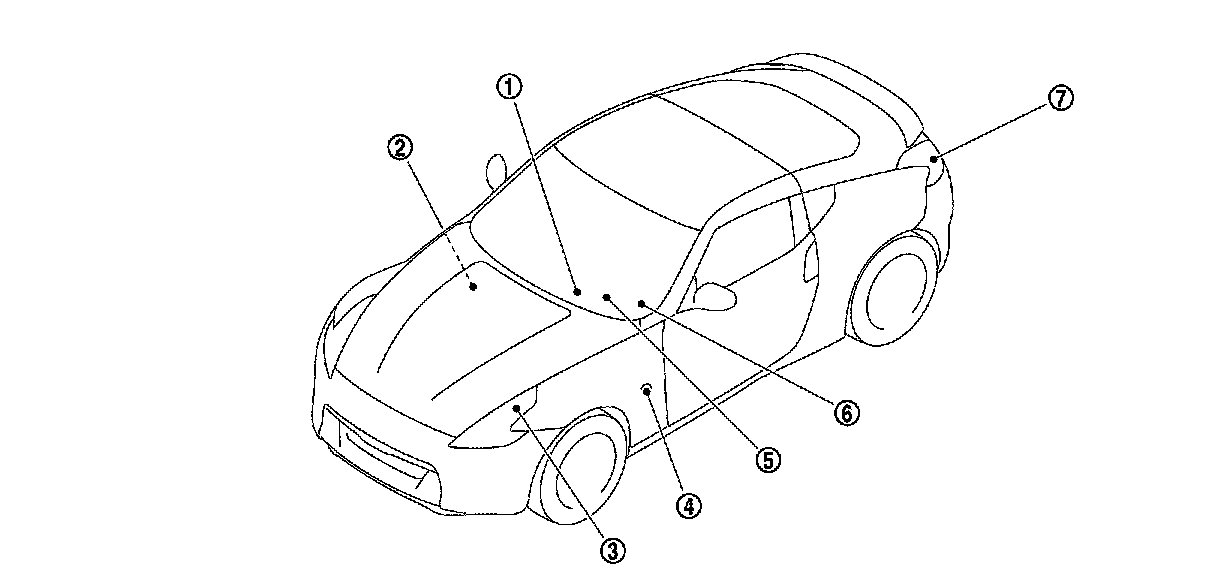

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : Component Parts Location
