P1715 INPUT SPEED SENSOR

Description

ECM receives input speed sensor signal from TCM through CAN communication line. ECM uses this signal for engine control.



DTC Logic

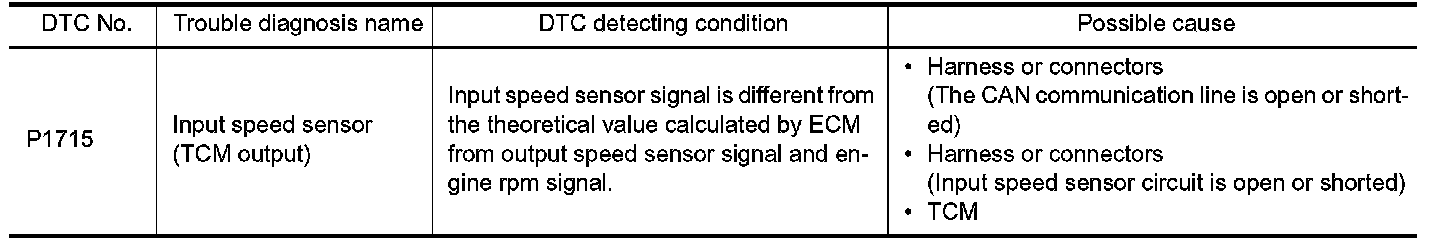

DTC DETECTION LOGIC

NOTE:
- If DTC P1715 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC U1000,XXXX.
- If DTC P1715 is displayed with DTC P0335, first perform the trouble diagnosis for DTC P0335. CKP Sensor (POS) For Mexico.
- If DTC P1715 is displayed with DTC P0340, first perform the trouble diagnosis for DTC P0340. CMP Sensor (Phase) For Mexico.
- If DTC P1715 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. ECM For Mexico.
- If DTC P1715 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. ECM For Mexico.






DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Start engine and drive the vehicle at more than 50 km/h (31 MPH) for at least 5 seconds.

CAUTION:
Always drive vehicle at a safe speed.
2.Check 1st trip DTC.
Is 1st trip DTC detected?
YES- Go to "Diagnosis Procedure".
NO- INSPECTION END


Diagnosis Procedure


1. CHECK DTC WITH TCM

Check DTC with TCM. CVT RE0F10A.
Is the inspection result normal?
YES- GO TO 2.
NO- Perform trouble shooting relevant to DTC indicated.

2. REPLACE TCM

Replace TCM. Removal And Installation.
- INSPECTION END
