Symptom Table Coupe

DOOR LOCK FUNCTION SYMPTOMS

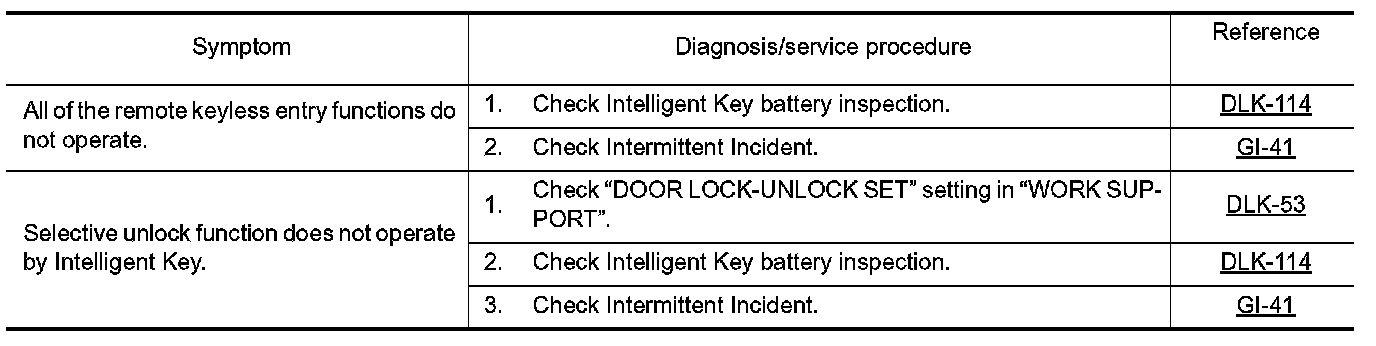

INTELLIGENT KEY : Symptom Table


REMOTE KEYLESS ENTRY FUNCTION MALFUNCTION

NOTE:
- Before performing the diagnosis in the following table, check "WORK FLOW". Coupe.
- Check that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- If the following symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
Conditions of Vehicle (Operating Conditions)
- Intelligent Key is out of key slot.
- Ignition switch is in OFF or ACC position.
- All doors are closed.
- Retained power operation does not operate. Coupe.
