Coupe With Left And Right Power Window Anti-Pinch
Coupe With Left And Right Power Window Anti-Pinch
POWER WINDOW SYSTEM

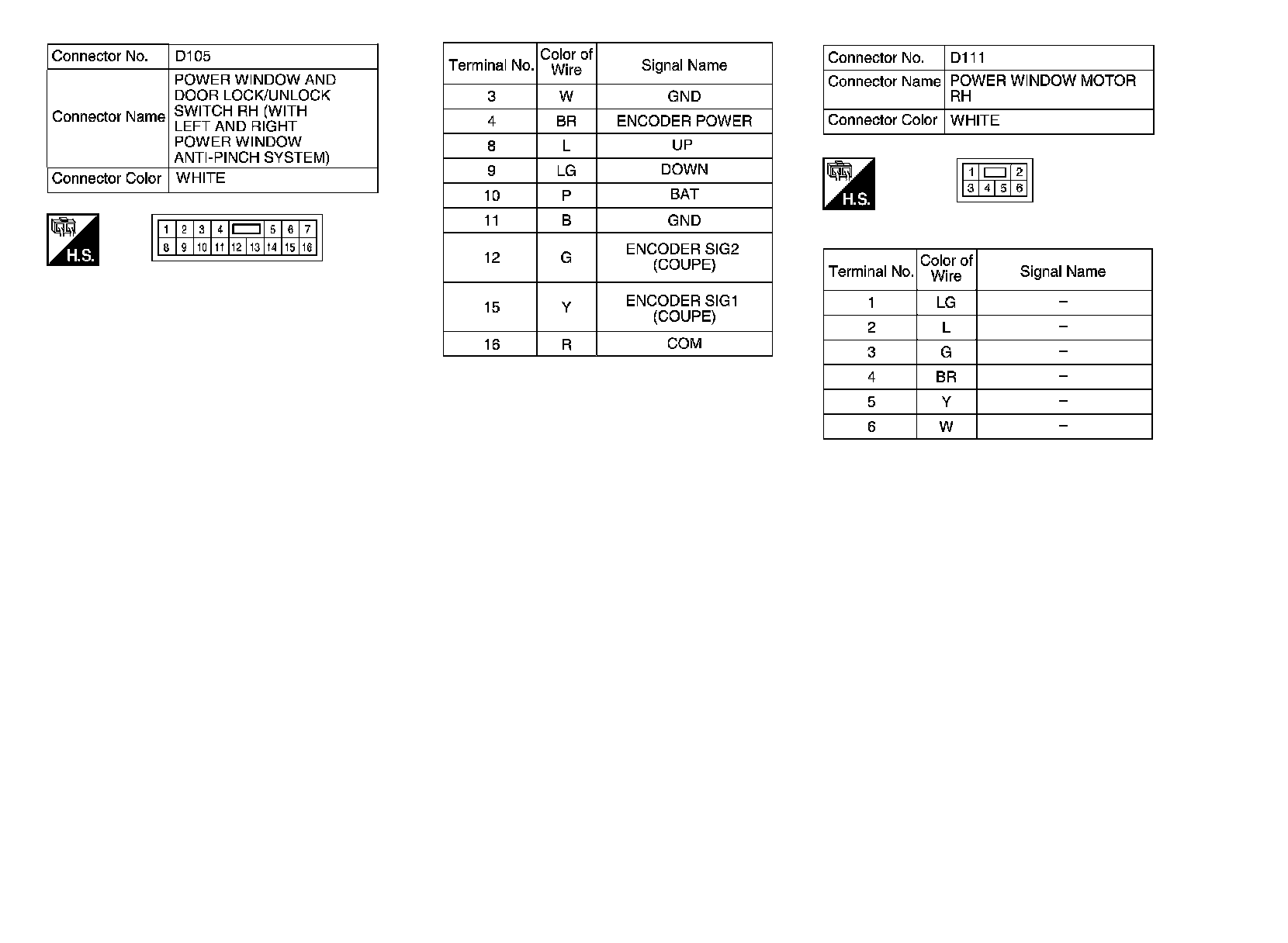

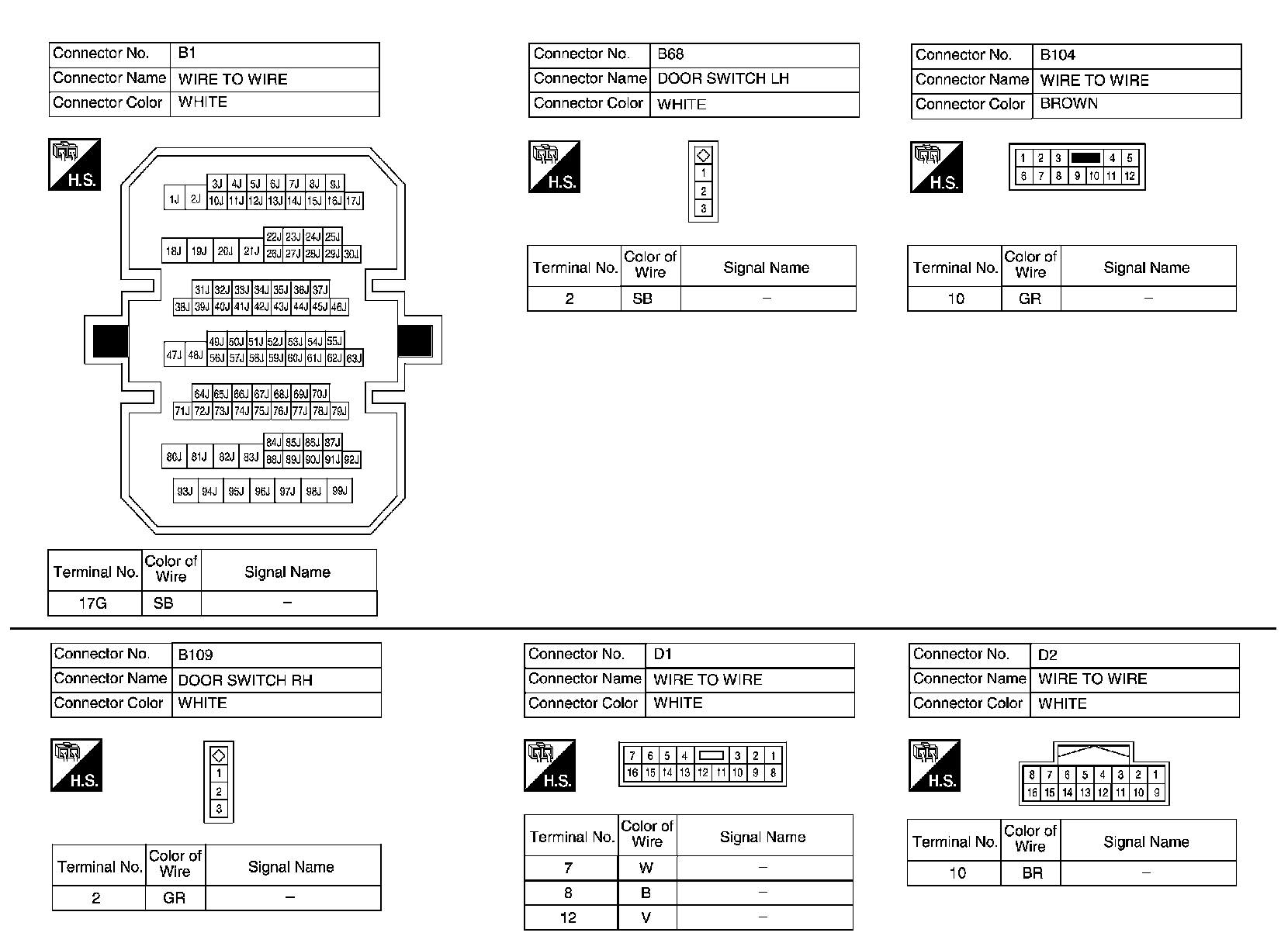

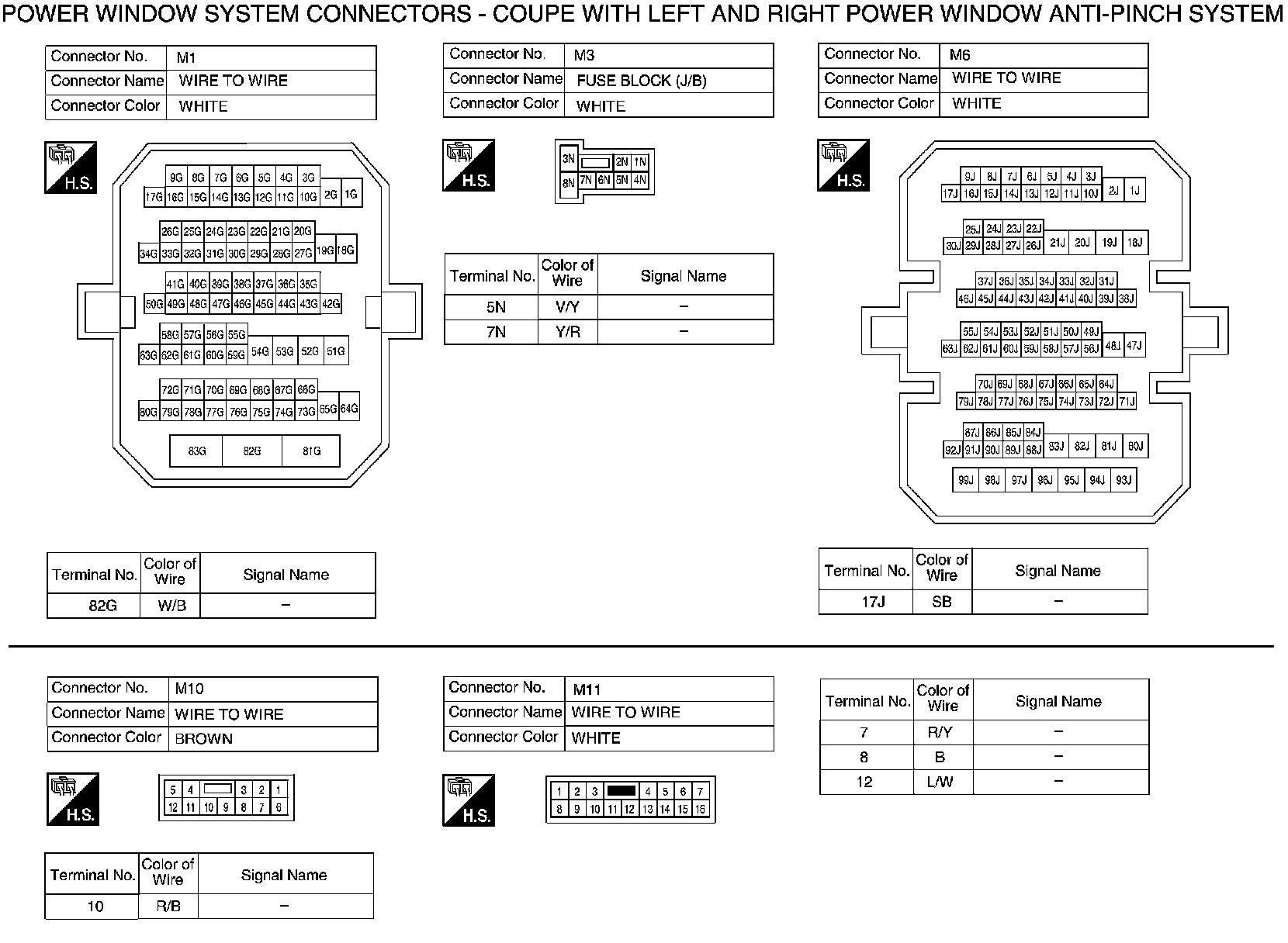

Wiring Diagram - Coupe With Left And Right Power Window Anti-Pinch
