Sedan With Left And Right Front Power Window Anti-Pinch
Sedan With Left And Right Front Power Window Anti-Pinch
POWER WINDOW SYSTEM

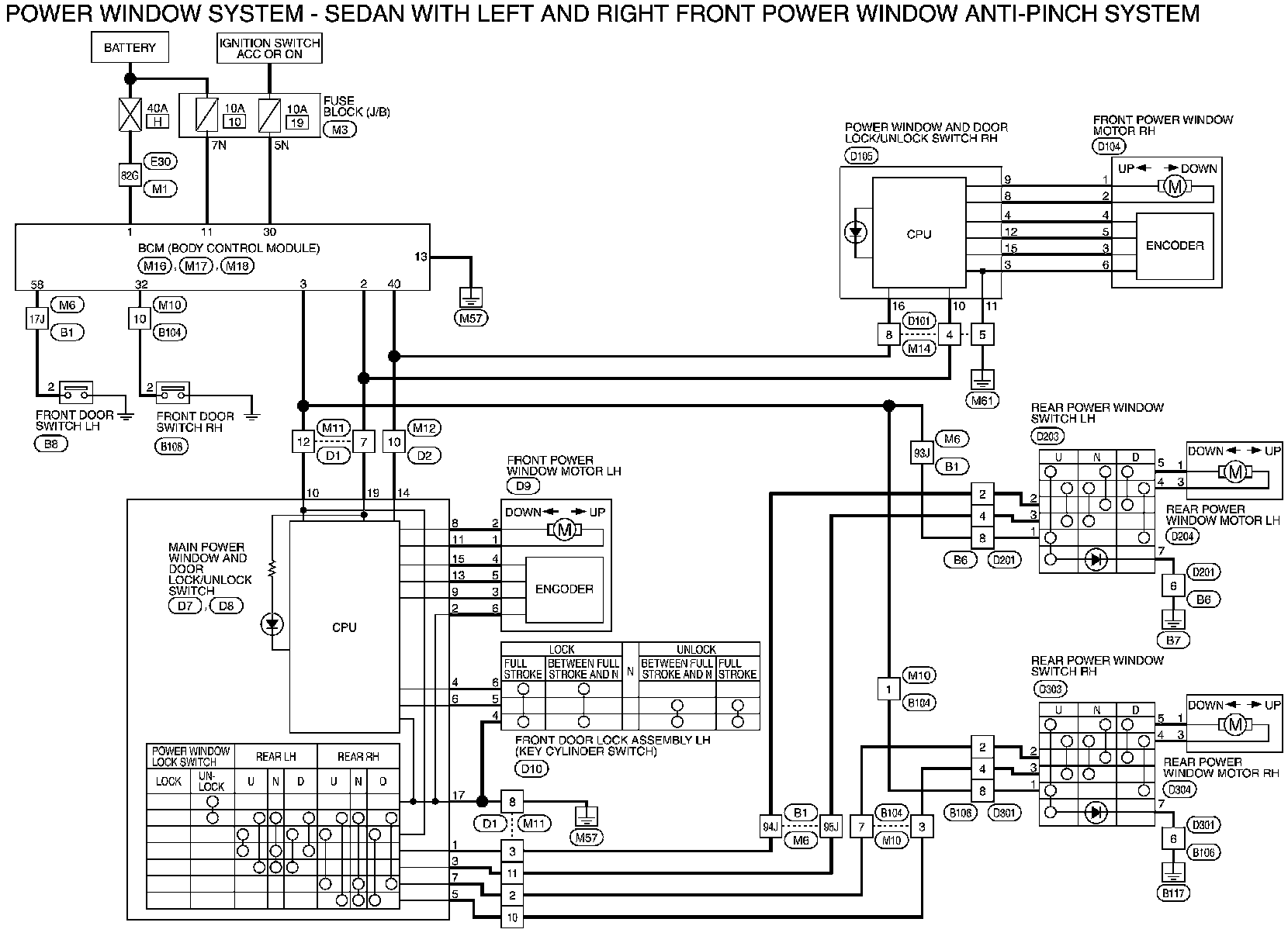

Wiring Diagram - Sedan With Left And Right Front Power Window Anti-Pinch
