Sedan With Left Front Only Power Window Anti- Pinch
Sedan With Left Front Only Power Window Anti- Pinch
POWER WINDOW SYSTEM

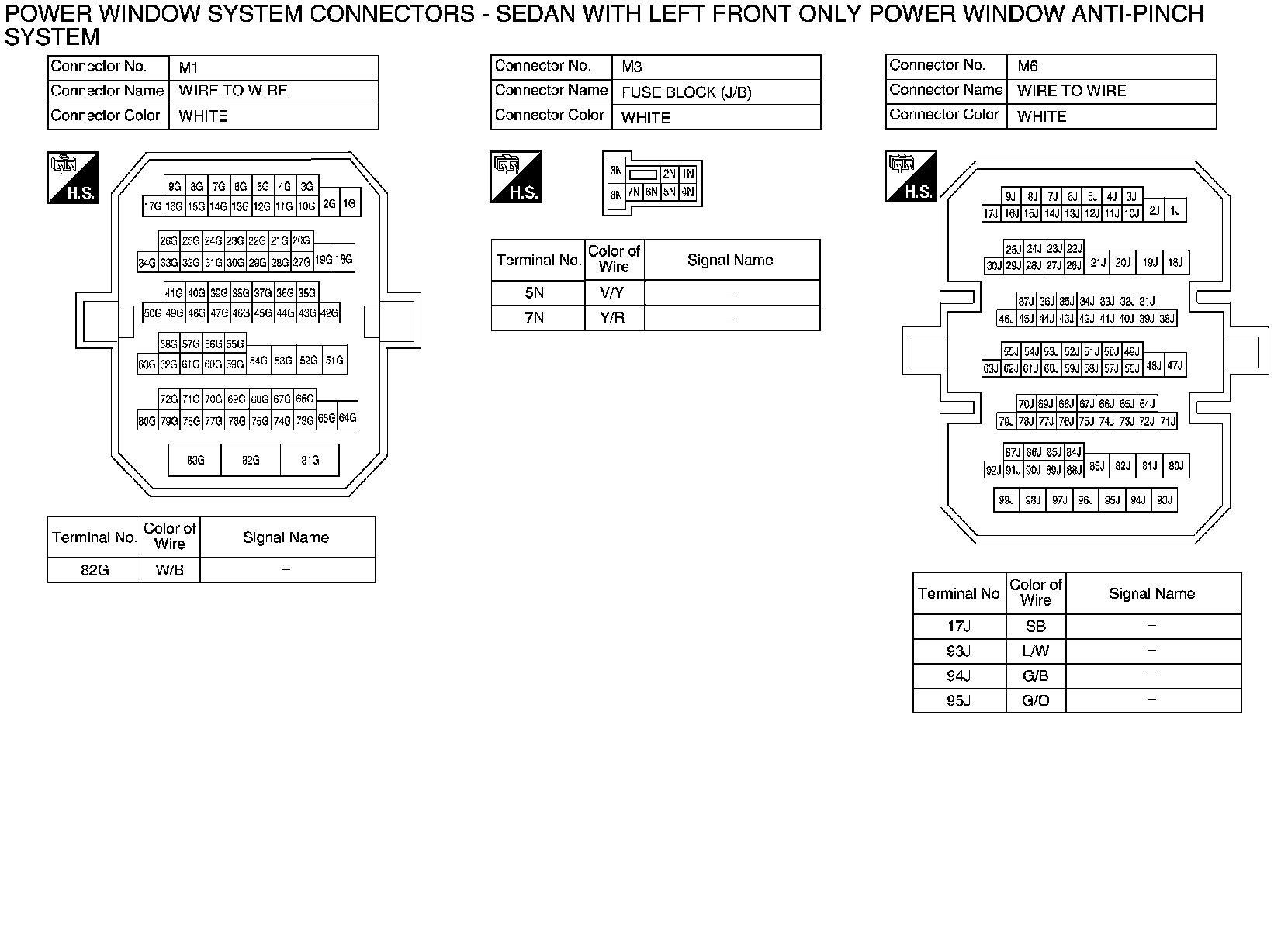

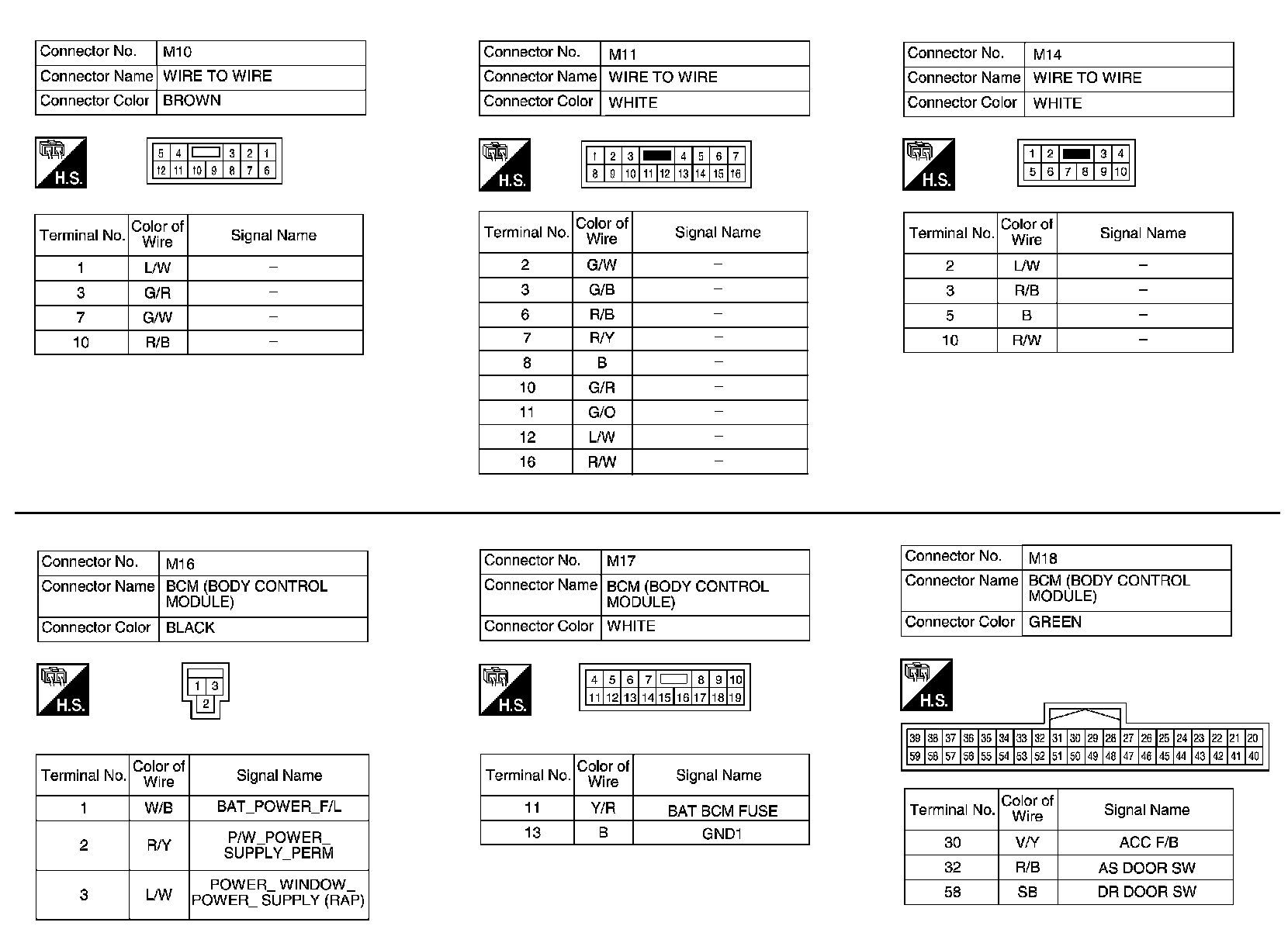

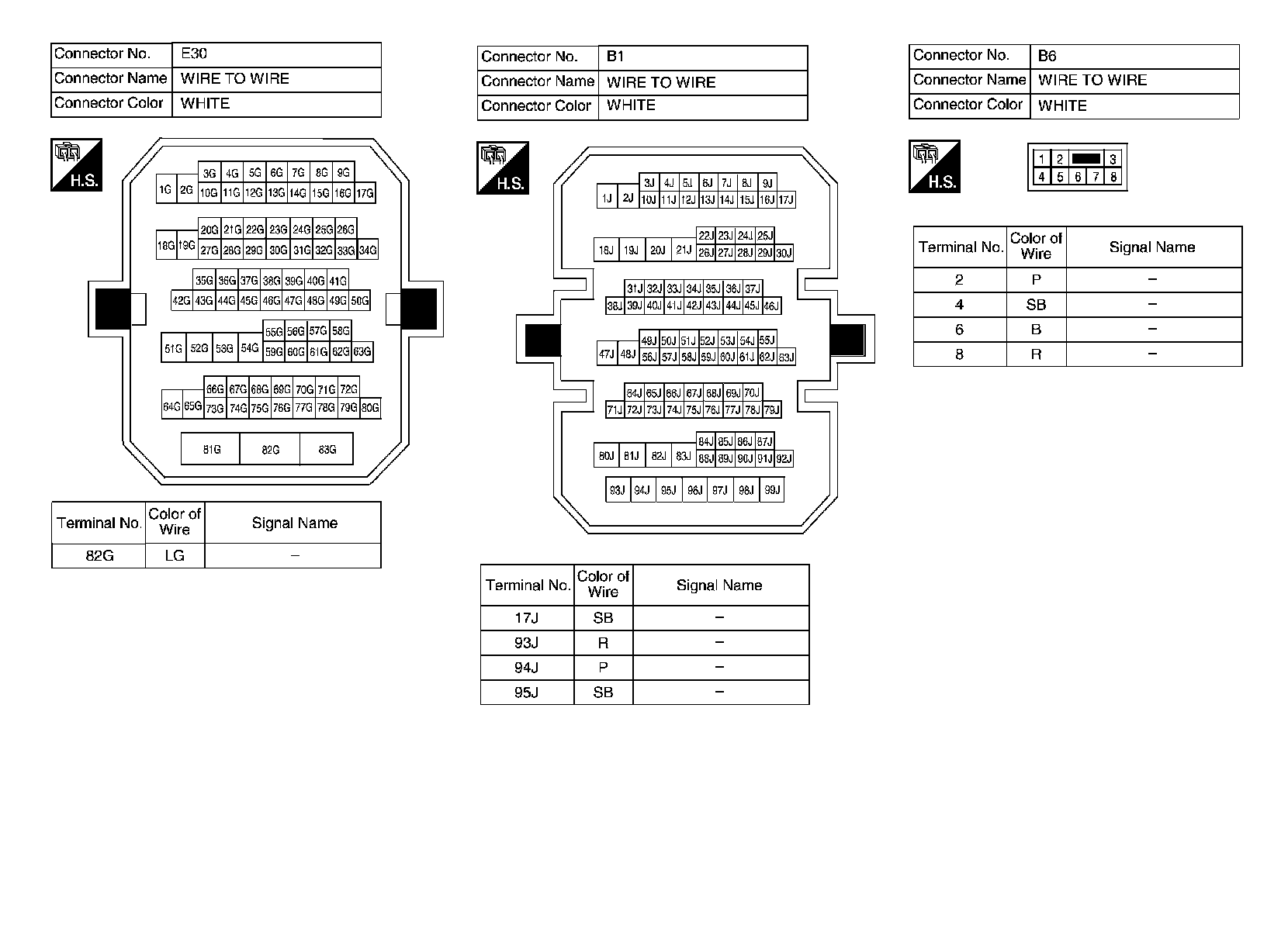

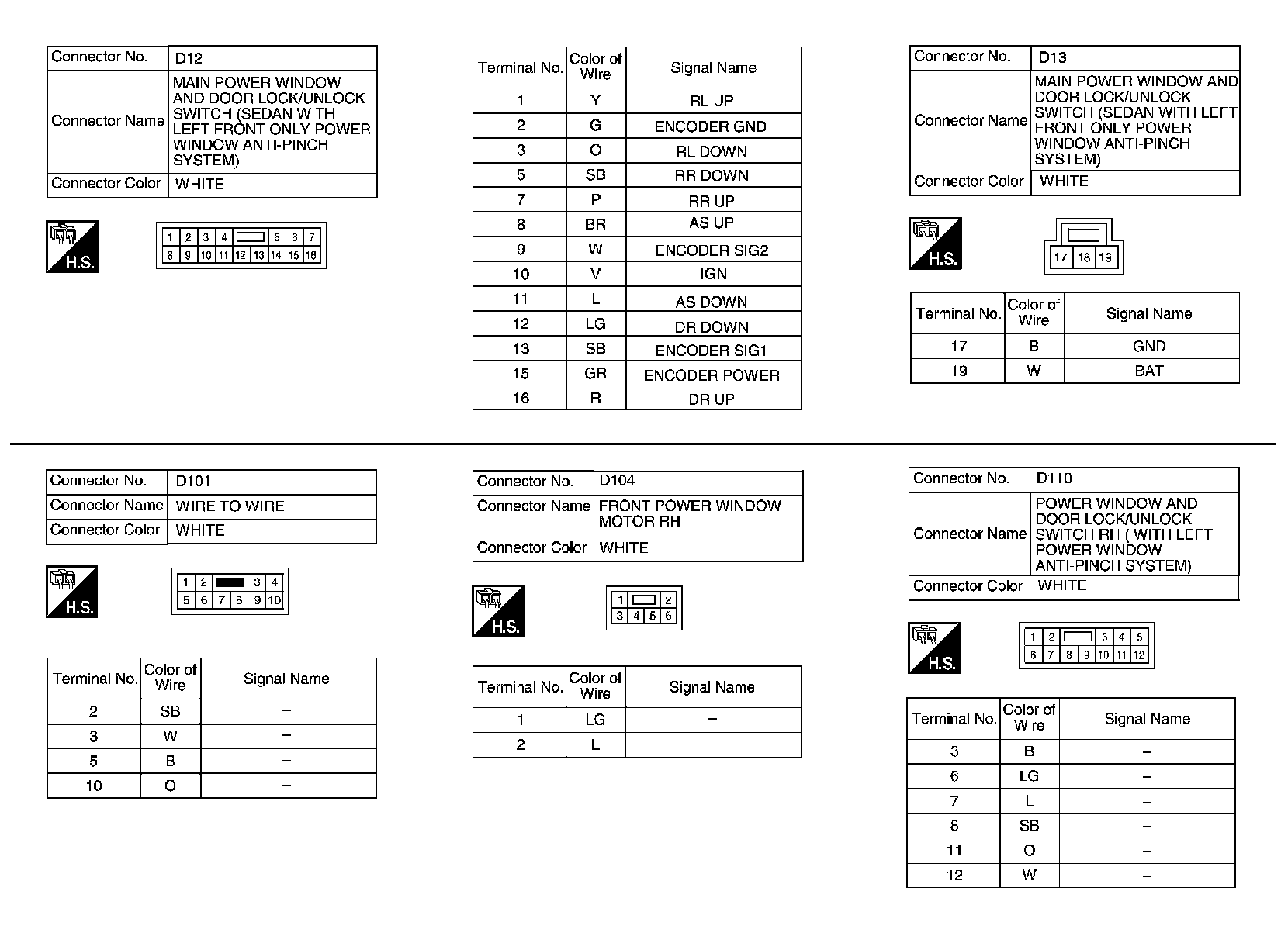

Wiring Diagram - Sedan With Left Front Only Power Window Anti- Pinch
