Antilock Brakes / Traction Control Systems
>>
Hydraulic Circuit Diagram VDC/TCS/ABS
Hydraulic Circuit Diagram VDC/TCS/ABS
VDC

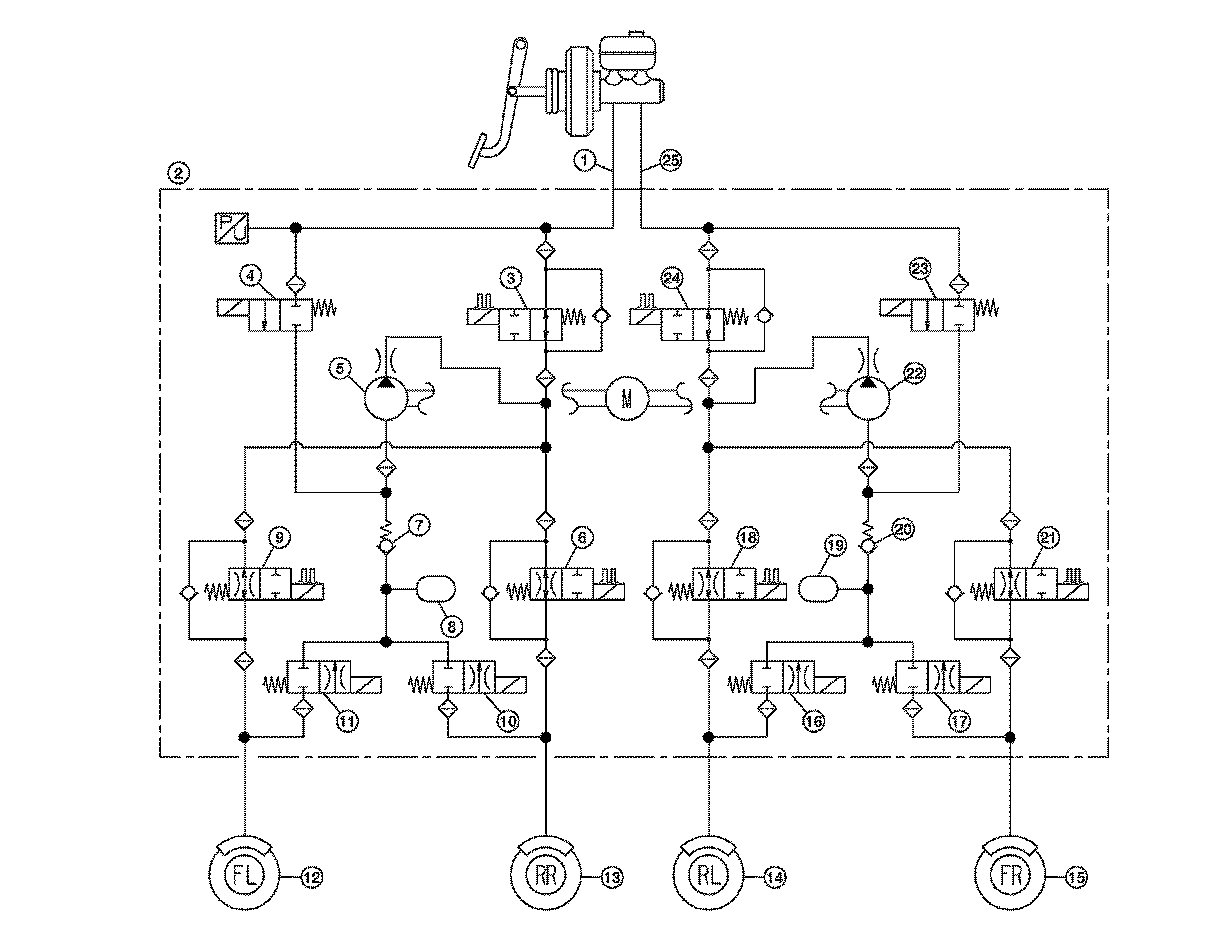

Hydraulic Circuit Diagram
