Receiver Dryer: Service and Repair

LIQUID TANK

Removal and Installation of Liquid Tank


REMOVAL


CAUTION:
Cap or wrap the joint of the hose with a suitable material such as vinyl tape to avoid the entry of contaminants.
1.Remove the condenser. Service and Repair.
2.Clean liquid tank and its surrounding area, and remove dirt and rust from liquid tank.

CAUTION:
Be sure to clean carefully.
3.Disconnect the refrigerant pressure sensor electrical connector.

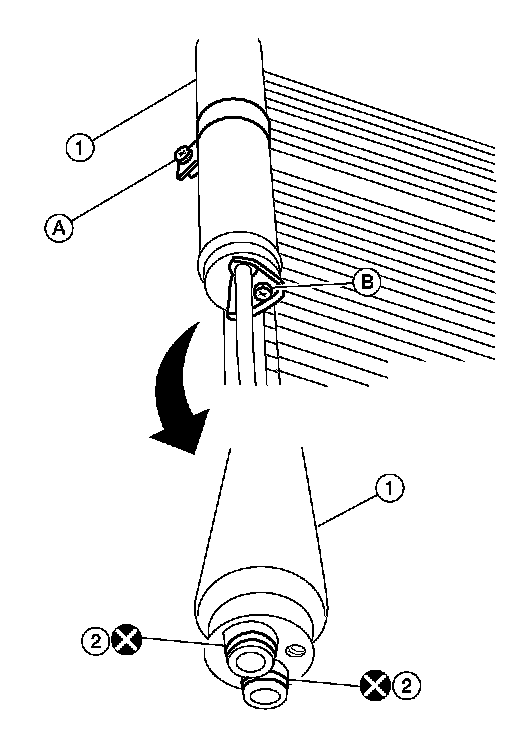

4.Remove bolt (A) and bolt (B) from the liquid tank (1) bottom and bracket.
5.Remove the liquid tank (1) with the bracket and refrigerant pressure sensor as an assembly. Slide the liquid tank (1) upward to release the bracket. Discard the two O-rings (2).
6.If necessary, remove the refrigerant pressure sensor from the liquid tank.

INSTALLATION






Installation is in the reverse order of removal.

CAUTION:
- Make sure liquid tank bracket (2) is securely installed on the protrusion of the condenser (3). Make sure the liquid tank bracket (2) does not move to a position below the center of the liquid tank (1).
- Do not reuse the O-rings.
- Apply A/C compressor oil to the new O-rings for installation.
- When recharging refrigerant, check for leaks. Checking Of Refrigerant Leaks.
