Home >> Nissan-Datsun >> 2012 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Locations >> For USA And Canada

For USA And Canada




MULTIPORT FUEL INJECTION SYSTEM

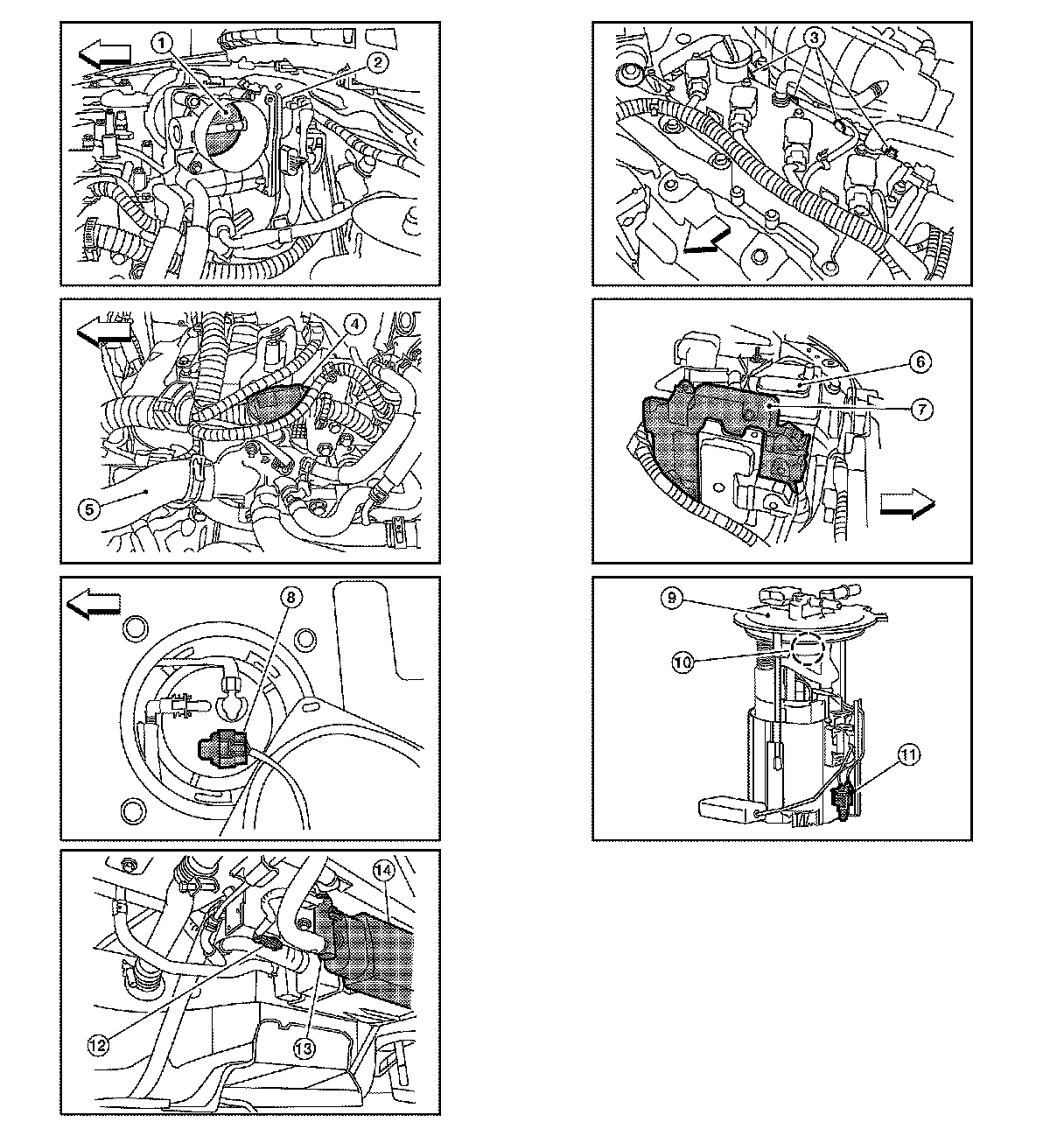

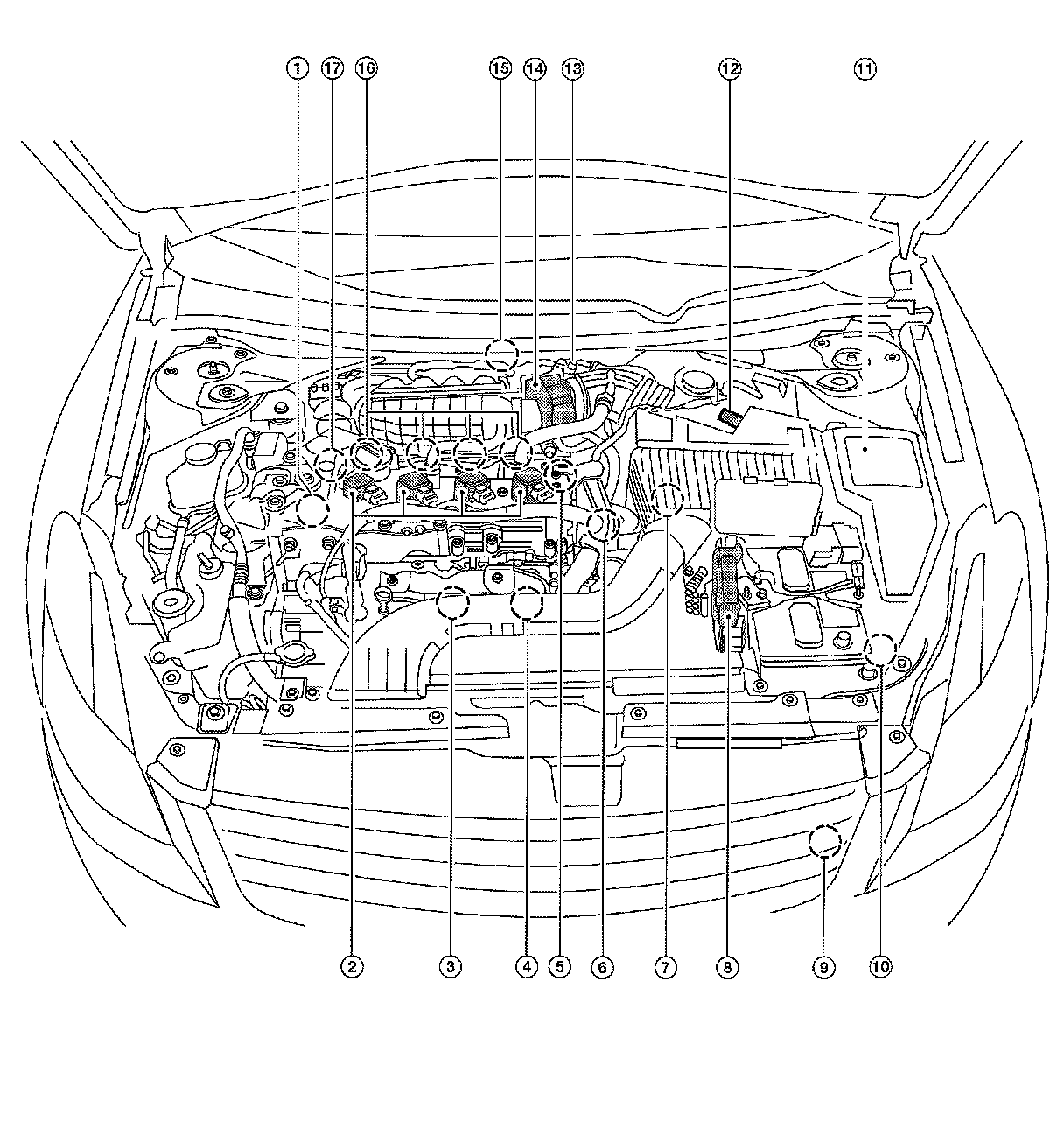

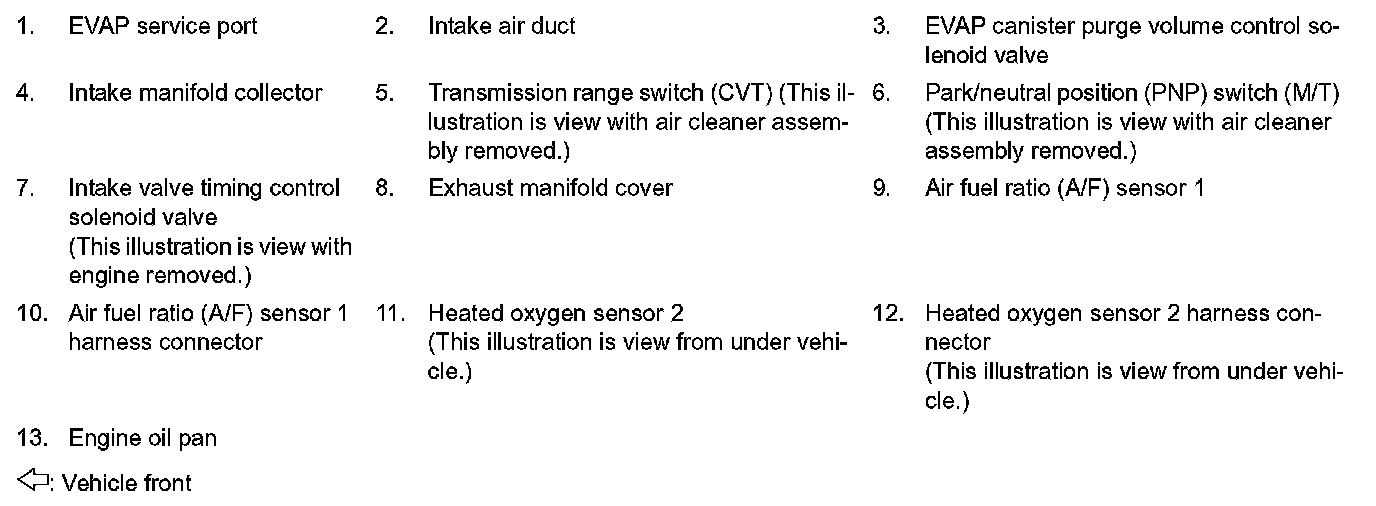

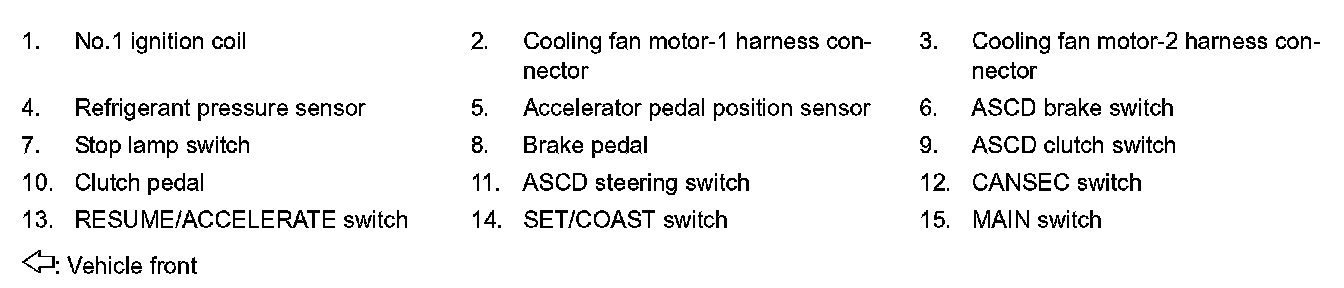

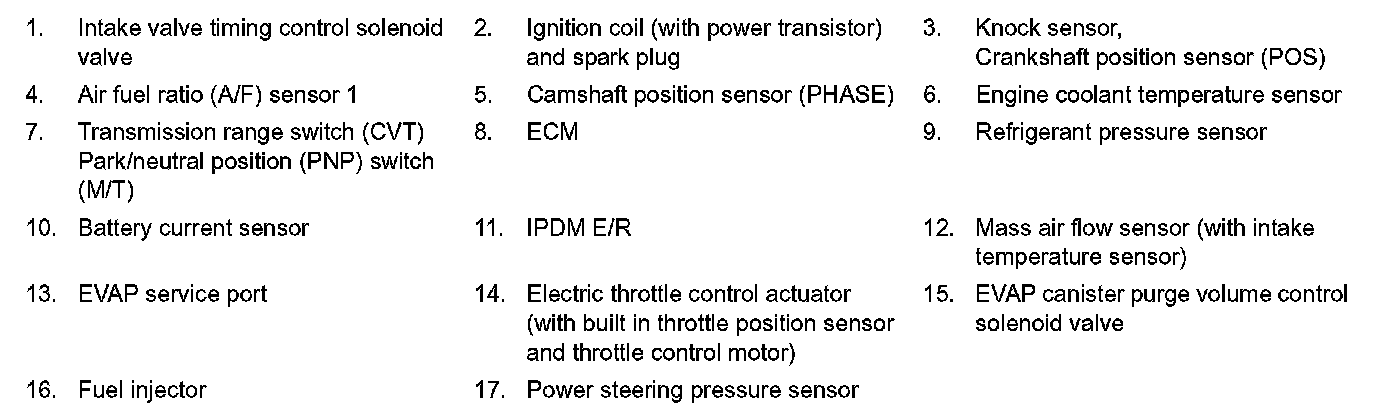

Component Parts Location
