Timing Cover

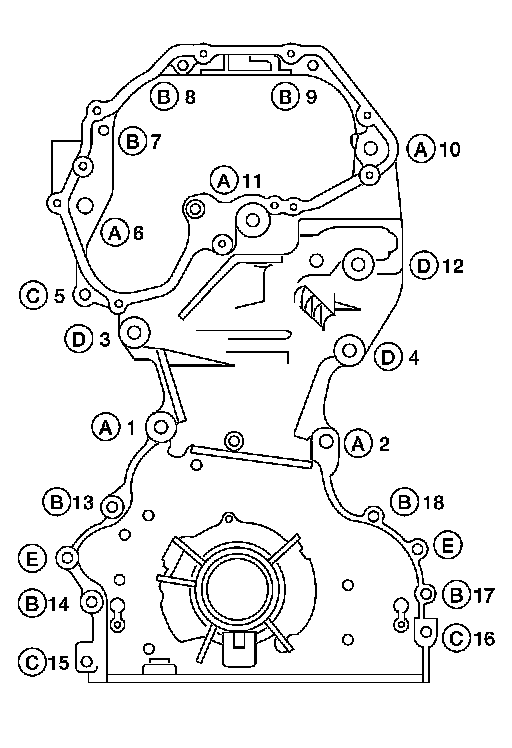

Tighten front cover bolts in the numerical order as shown.

After all bolts are tightened, retighten them to the specified torque.

Front cover bolts

Bolts (A): 49 Nm (5.0 kg-m, 36 ft-lb)
Bolts (B): 12.7 Nm (1.3 kg-m, 9 ft-lb)
Bolts (C): 12.7 Nm (1.3 kg-m, 9 ft-lb)
Bolts (D): 49 Nm (5.0 kg-m, 36 ft-lb)
(E) Dowel pins

Front cover 12.5 Nm (1.3 kg-m, 9 ft-lb)
