C1154

C1154 PNP SWITCH

Description

The transmission range switch signal is transmitted to the ABS actuator and electric unit (control unit) using the CAN communication lines.


DTC Logic


DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. CHECK SELF DIAGNOSTIC RESULT


With CONSULT.
1.Turn the ignition switch OFF to ON.
2.Perform self diagnostic result.
Is DTC C1154 detected?
YES- Proceed to diagnosis procedure. Refer to "Diagnosis Procedure".
NO- Inspection End.


Diagnosis Procedure


1. CHECK DATA MONITOR

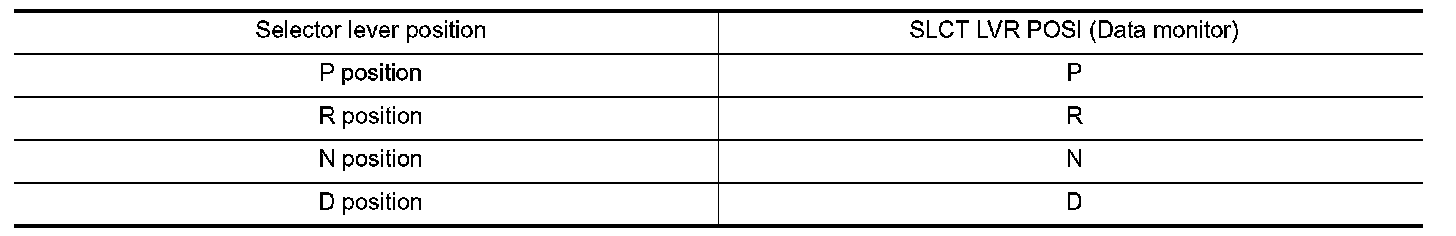

Select "SLCT LVR POSI" in "Data Monitor" and check transmission range switch signal.





Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). VDC/TCS/ABS.
NO- GO TO 2

2. CHECK TRANSMISSION RANGE SWITCH

Perform transmission range switch inspection. CVT RE0F09B Transmission Range Switch A.
Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). VDC/TCS/ABS.
NO- Repair or replace malfunctioning components.


Special Repair Requirement


1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit). Service and Repair.
- END
