Power Distribution System

U1000 CAN COMM CIRCUIT

Description

System Description.


DTC Logic

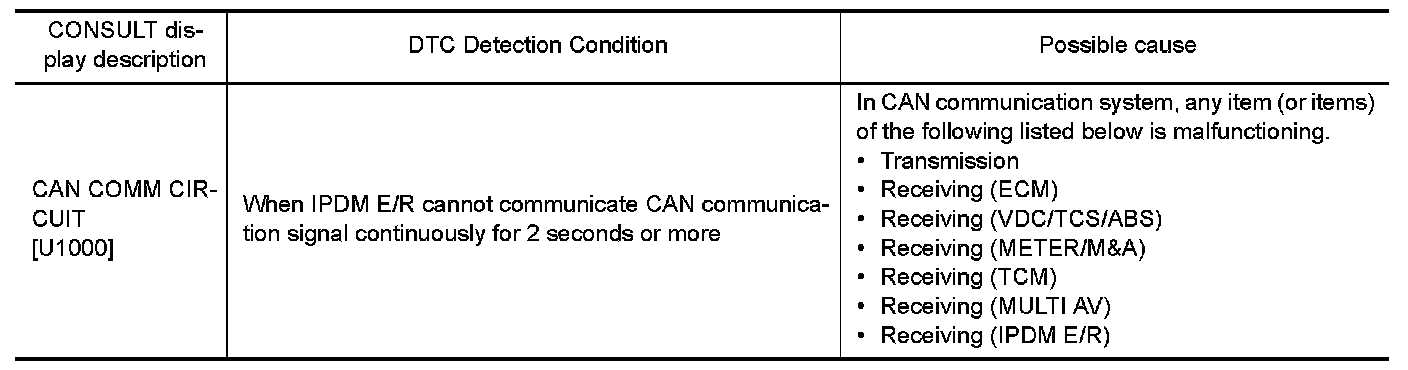

DTC DETECTION LOGIC








Diagnosis Procedure


1. PERFORM SELF DIAGNOSTIC

1.Turn ignition switch ON and wait for 2 second or more.
2.Check "Self Diagnostic Result".
Is "CAN COMM CIRCUIT" displayed?
YES- CAN Communication Control Circuit.
NO- Intermittent Incident.
