Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2012
>>
Altima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
>>
Except For Mexico
Except For Mexico
SRS
AIR BAG
CONTROL SYSTEM

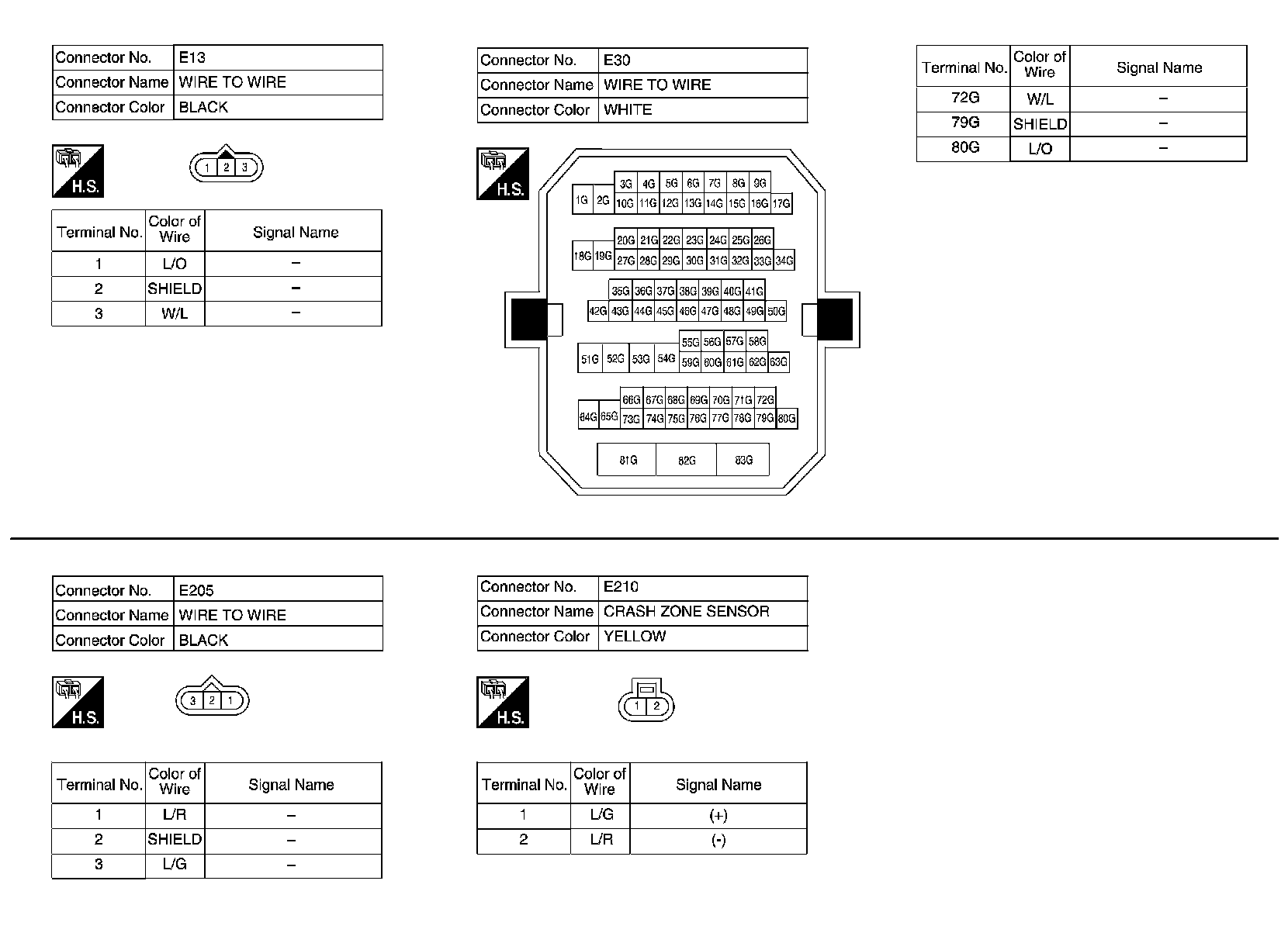

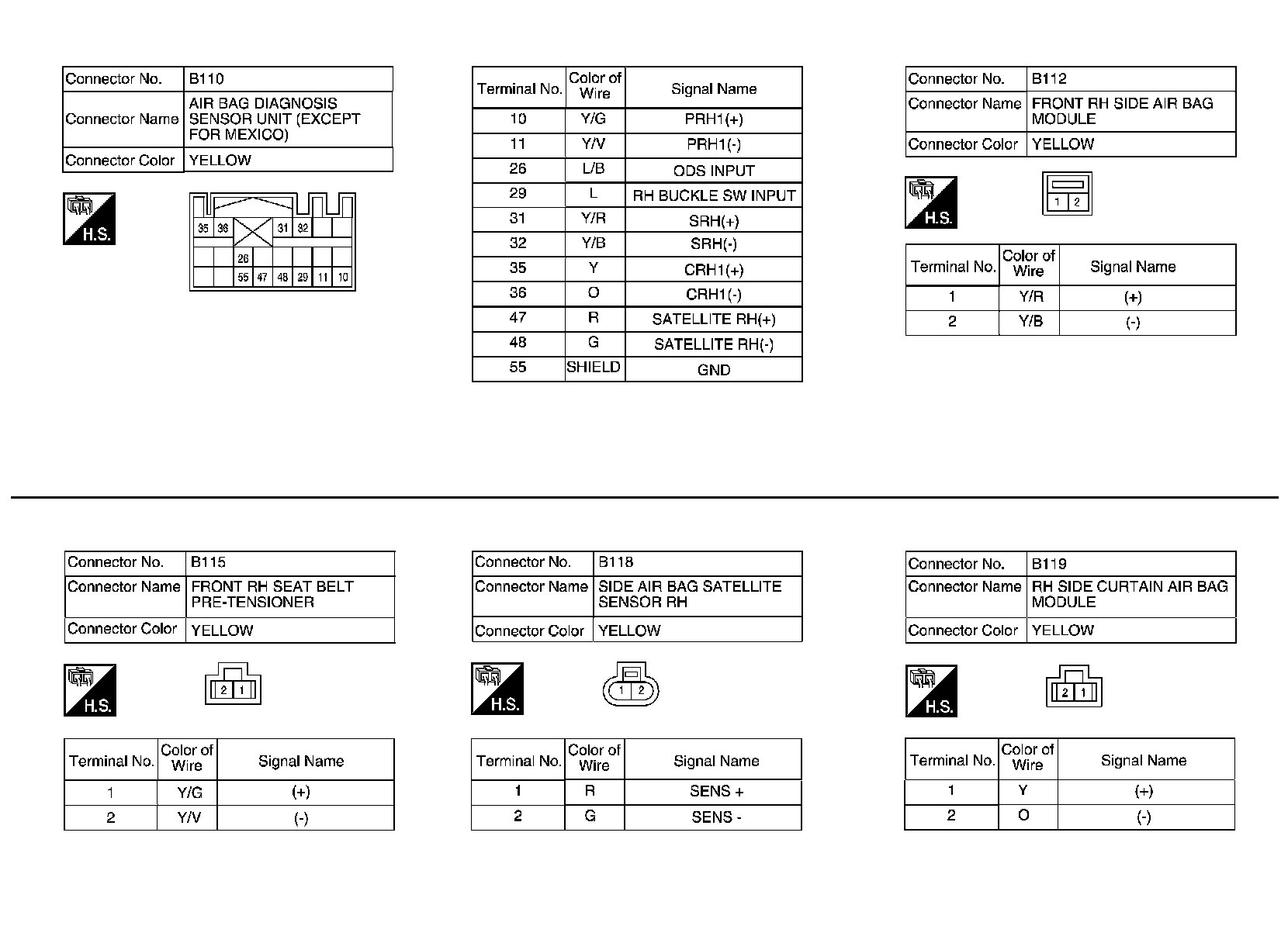

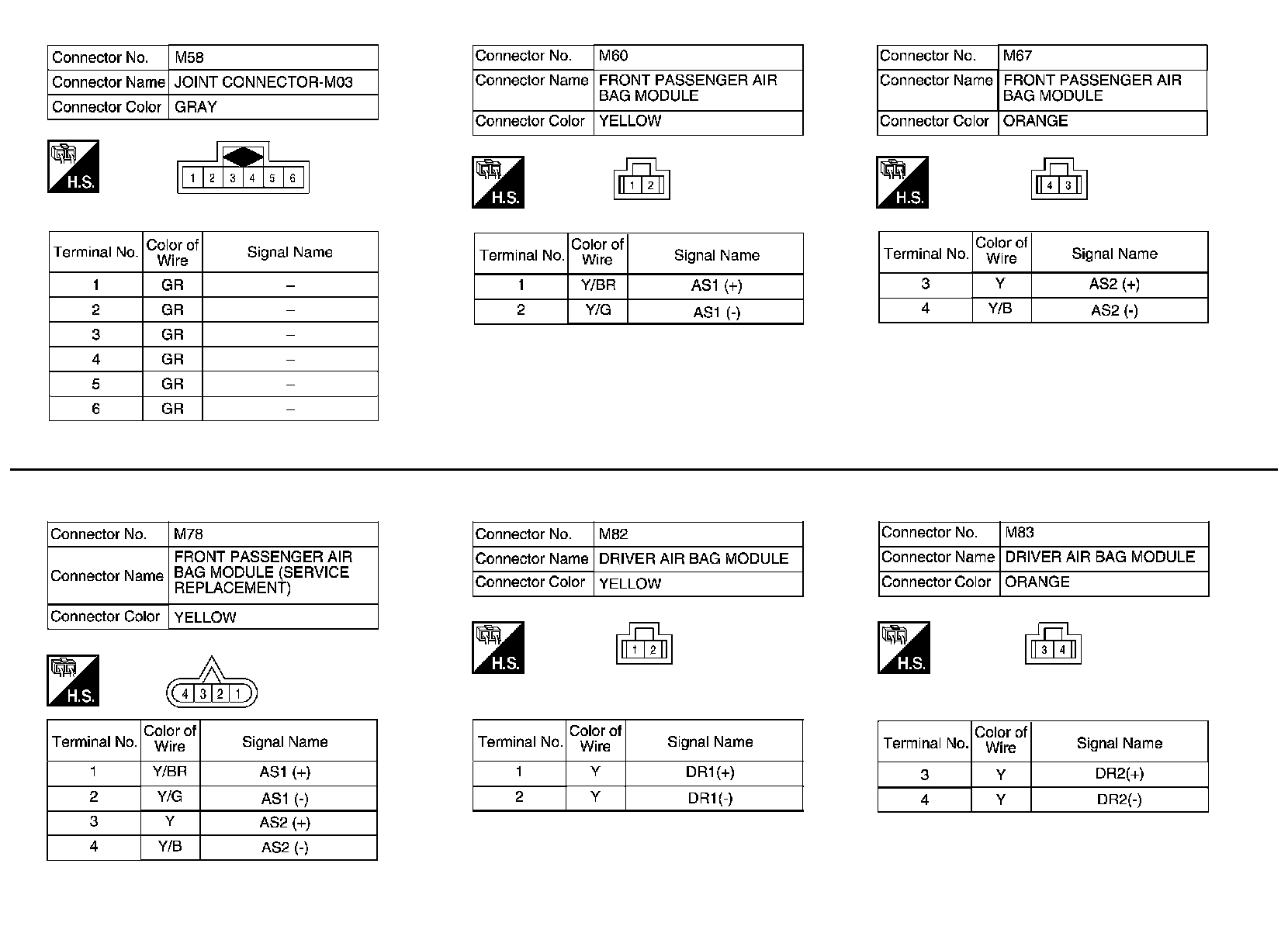

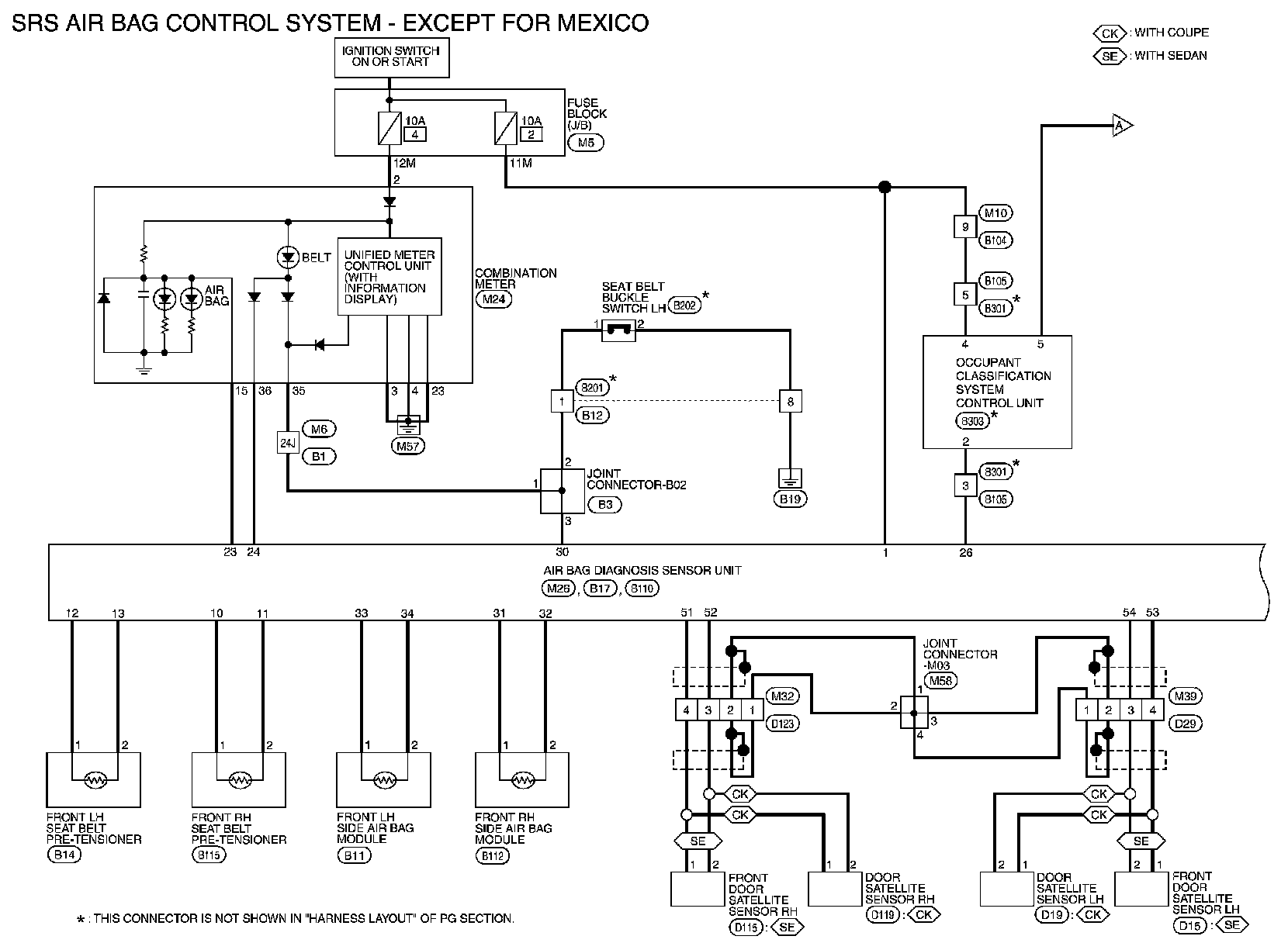

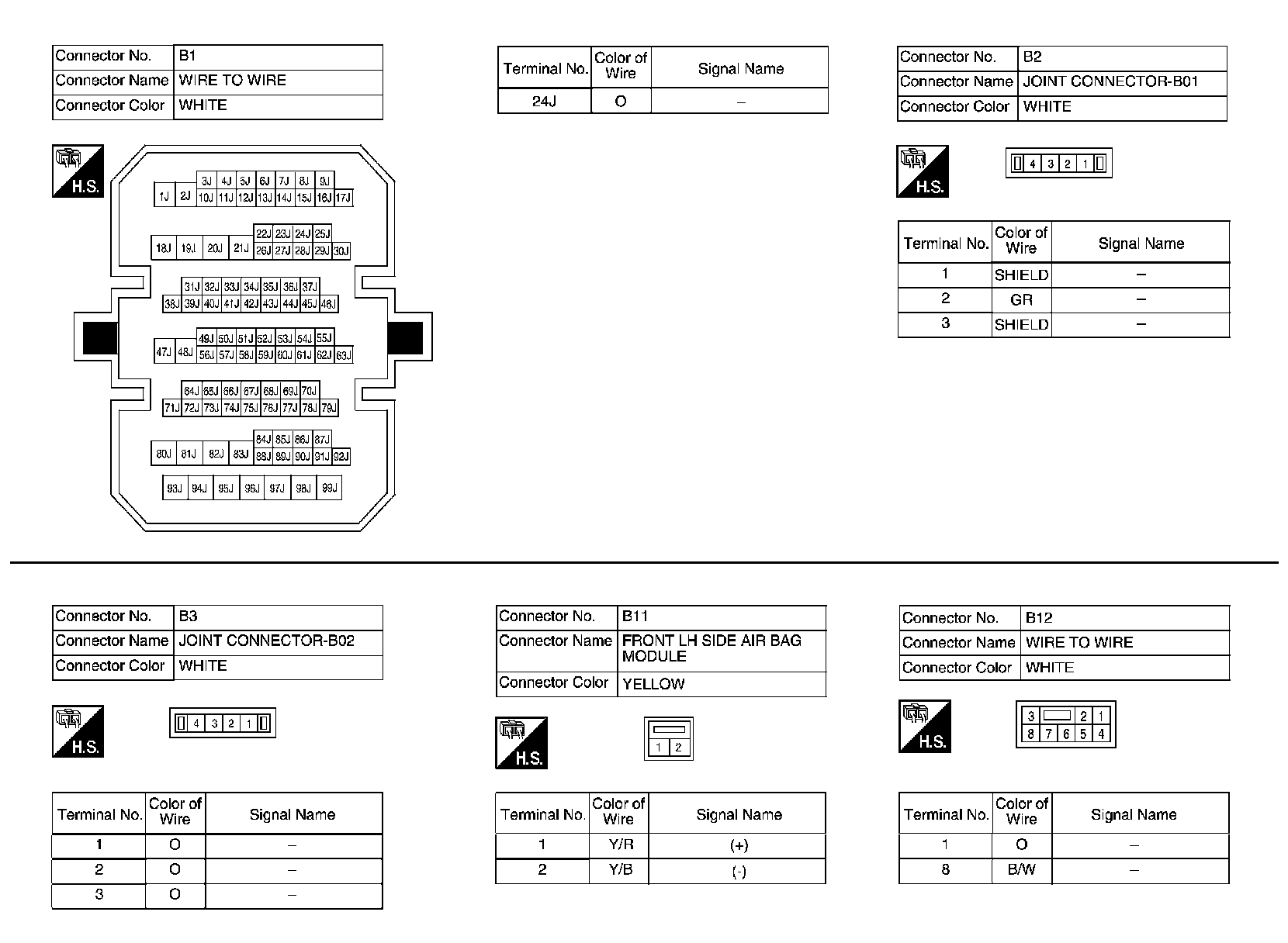

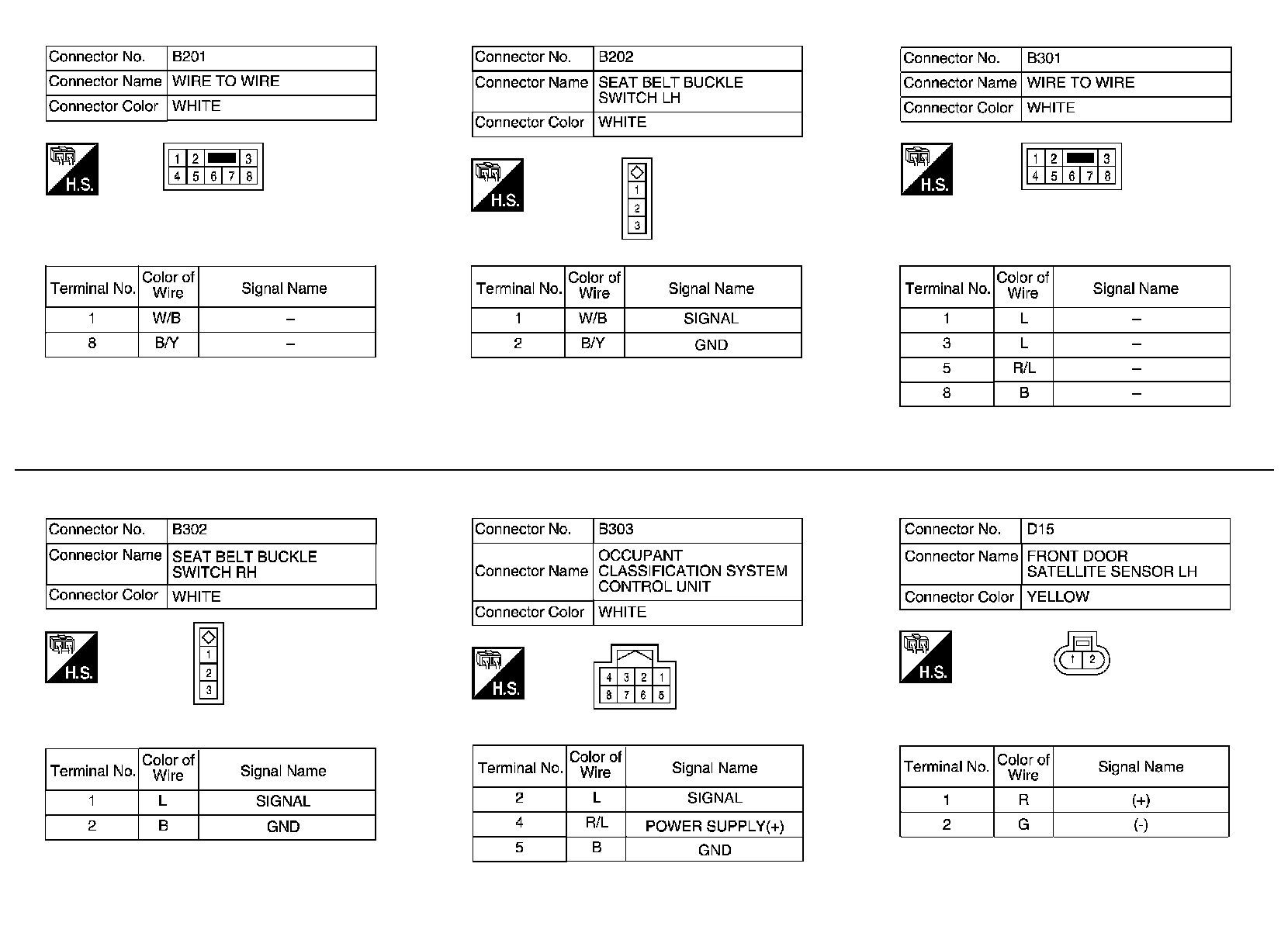

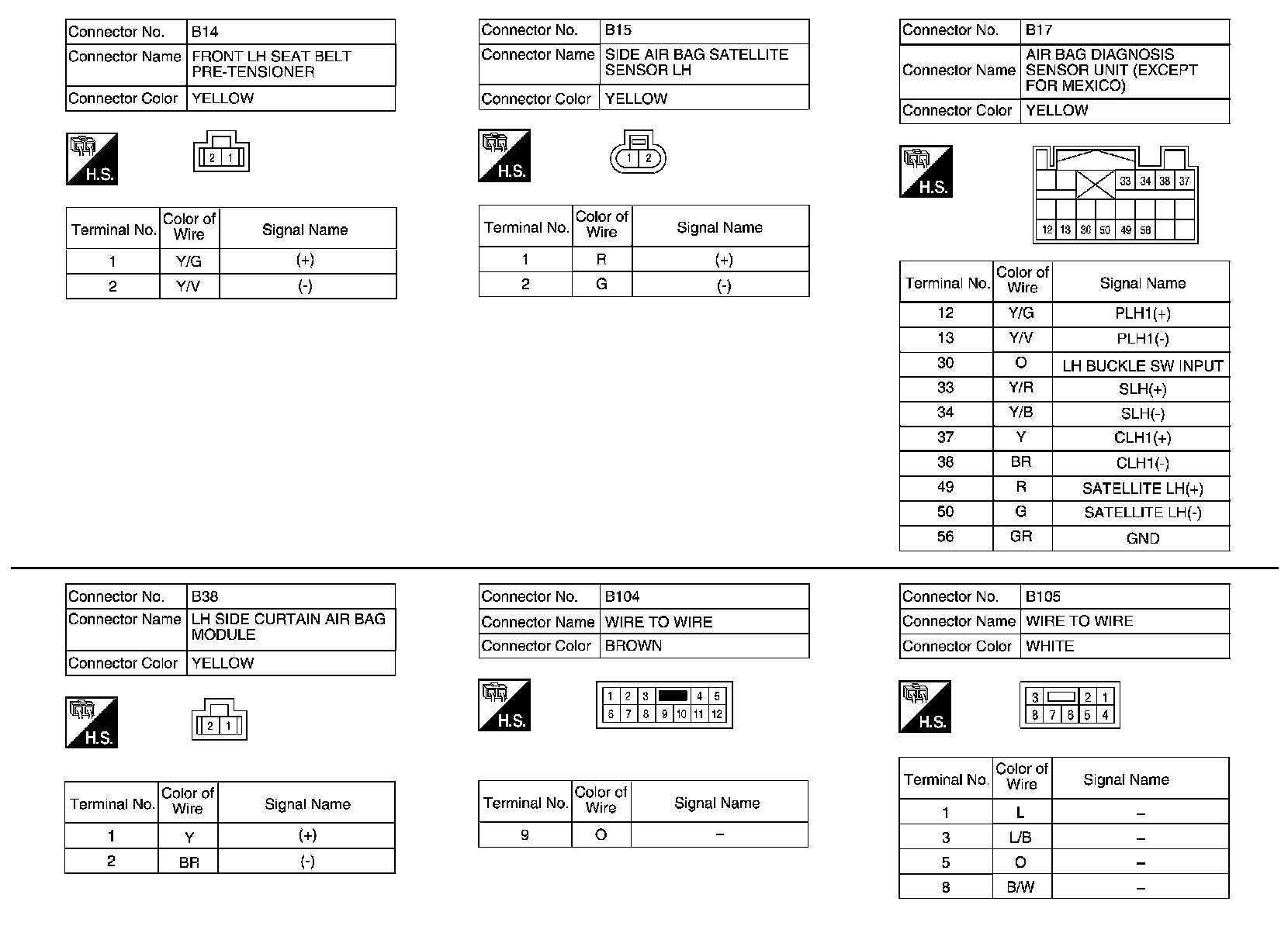

Wiring Diagram - Except For Mexico
