With Remote Keyless Entry




ENGINE START FUNCTION

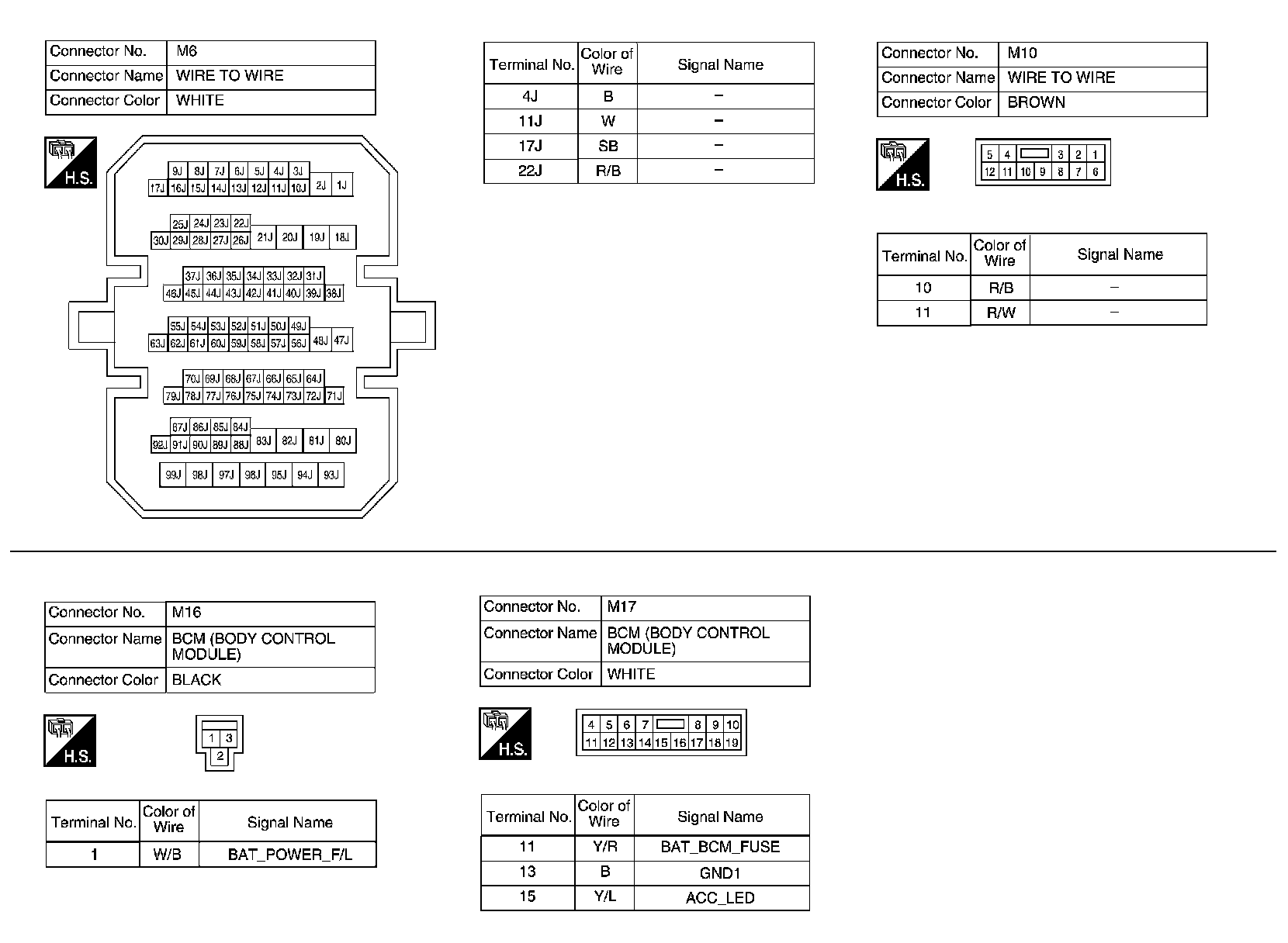

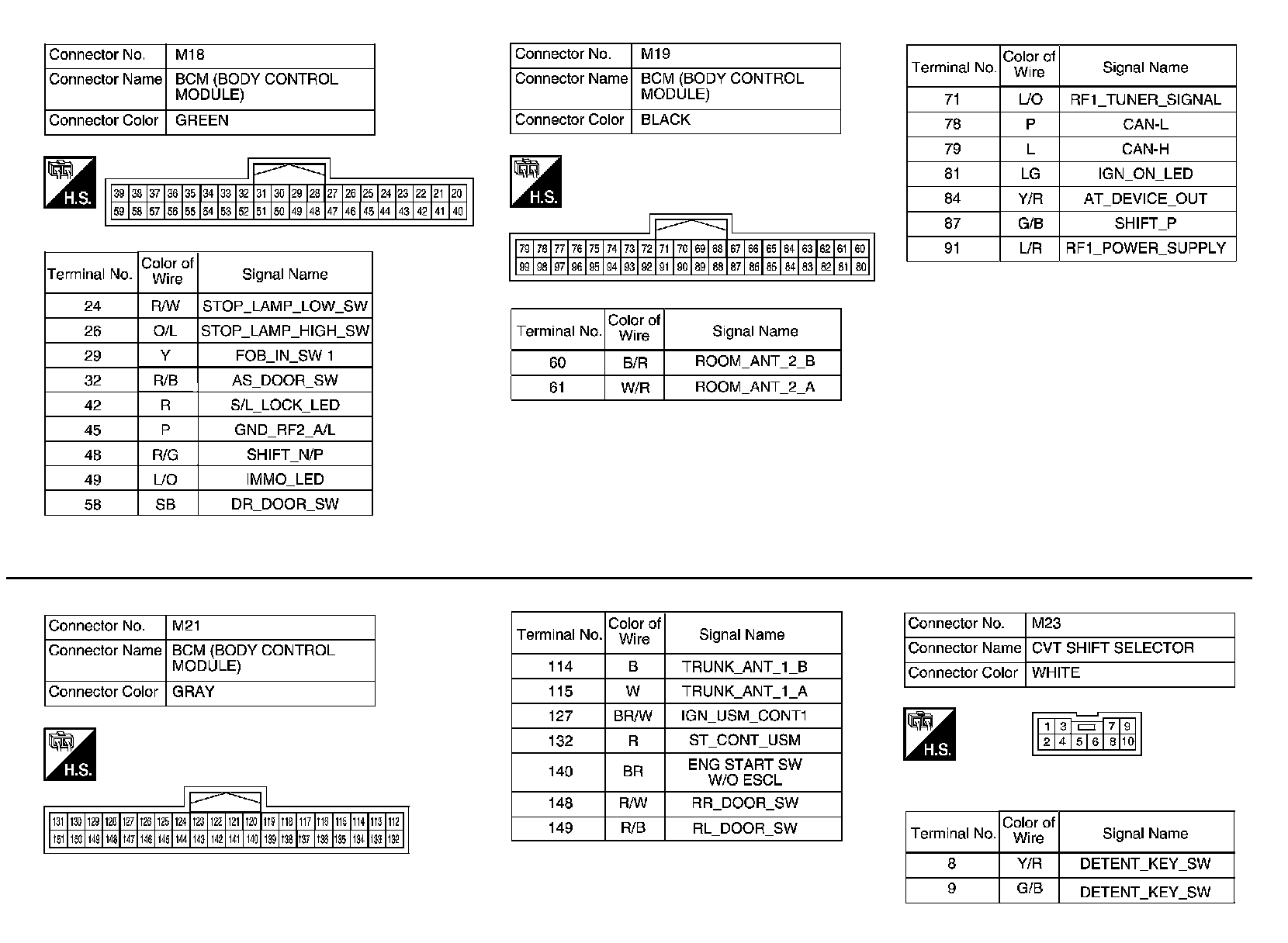

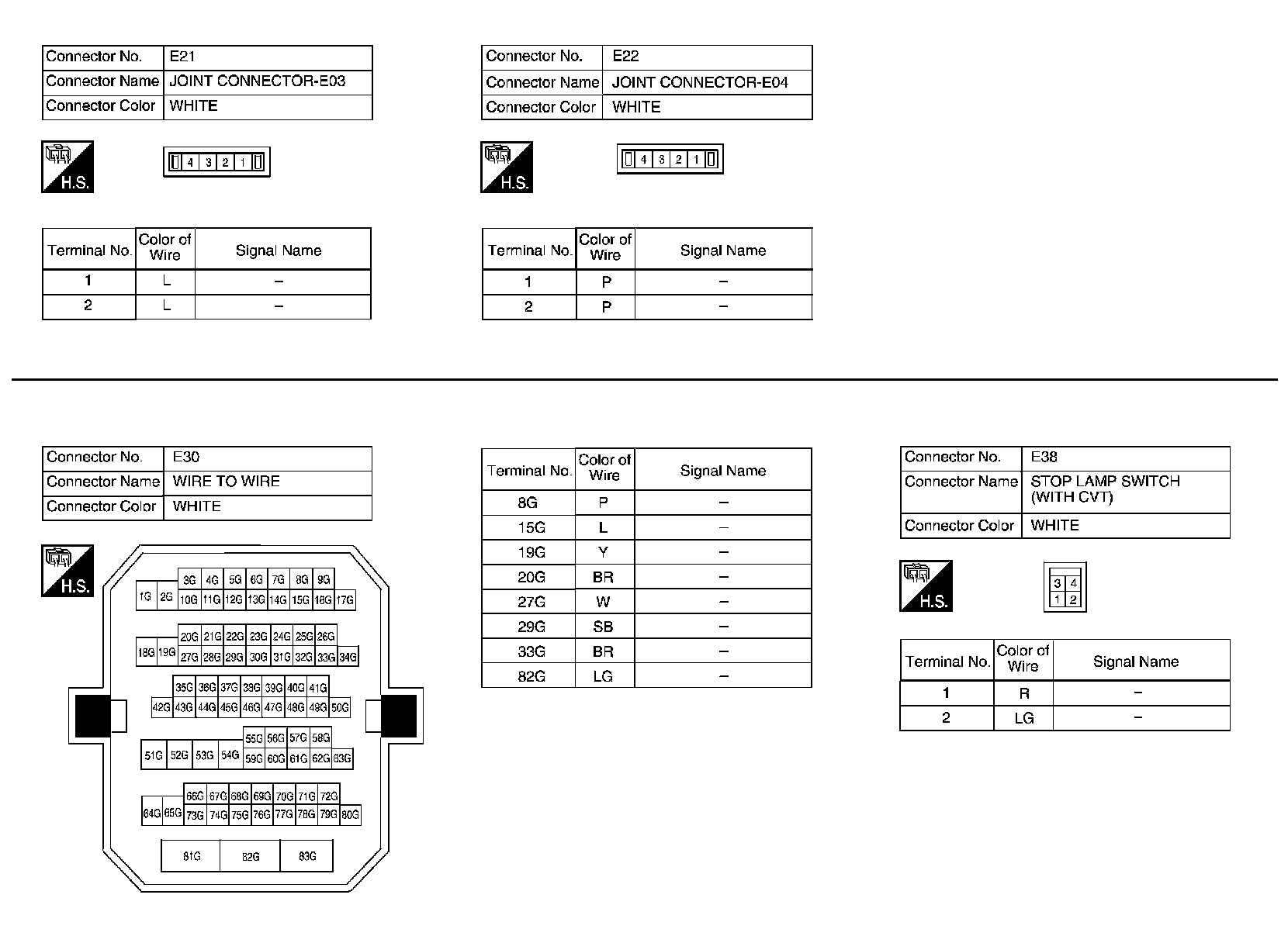

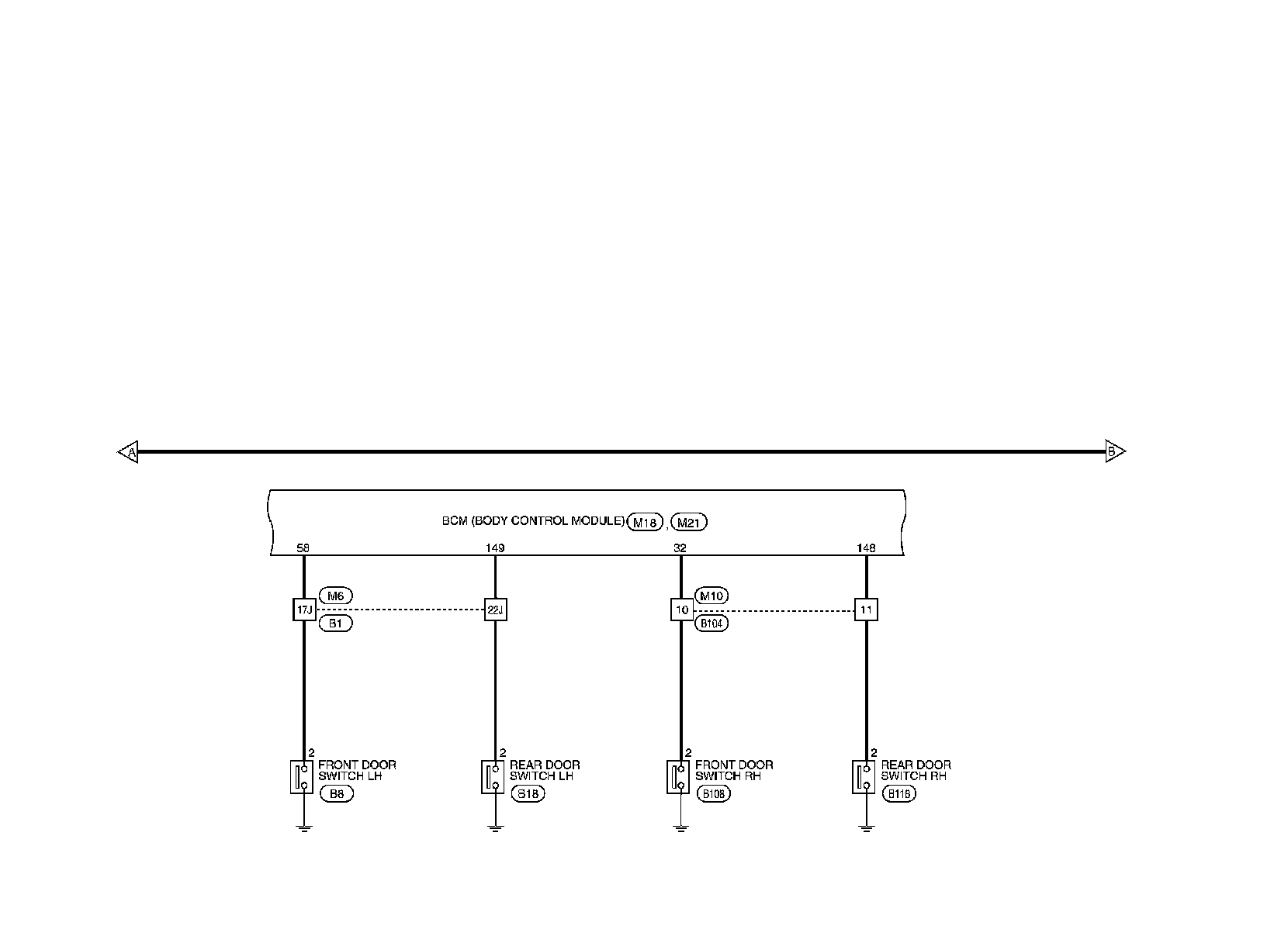

Wiring Diagram - Sedan With Remote Keyless Entry
