Power Door Lock System Sedan
>>
With Intelligent Key
With Intelligent Key
POWER DOOR LOCK SYSTEM

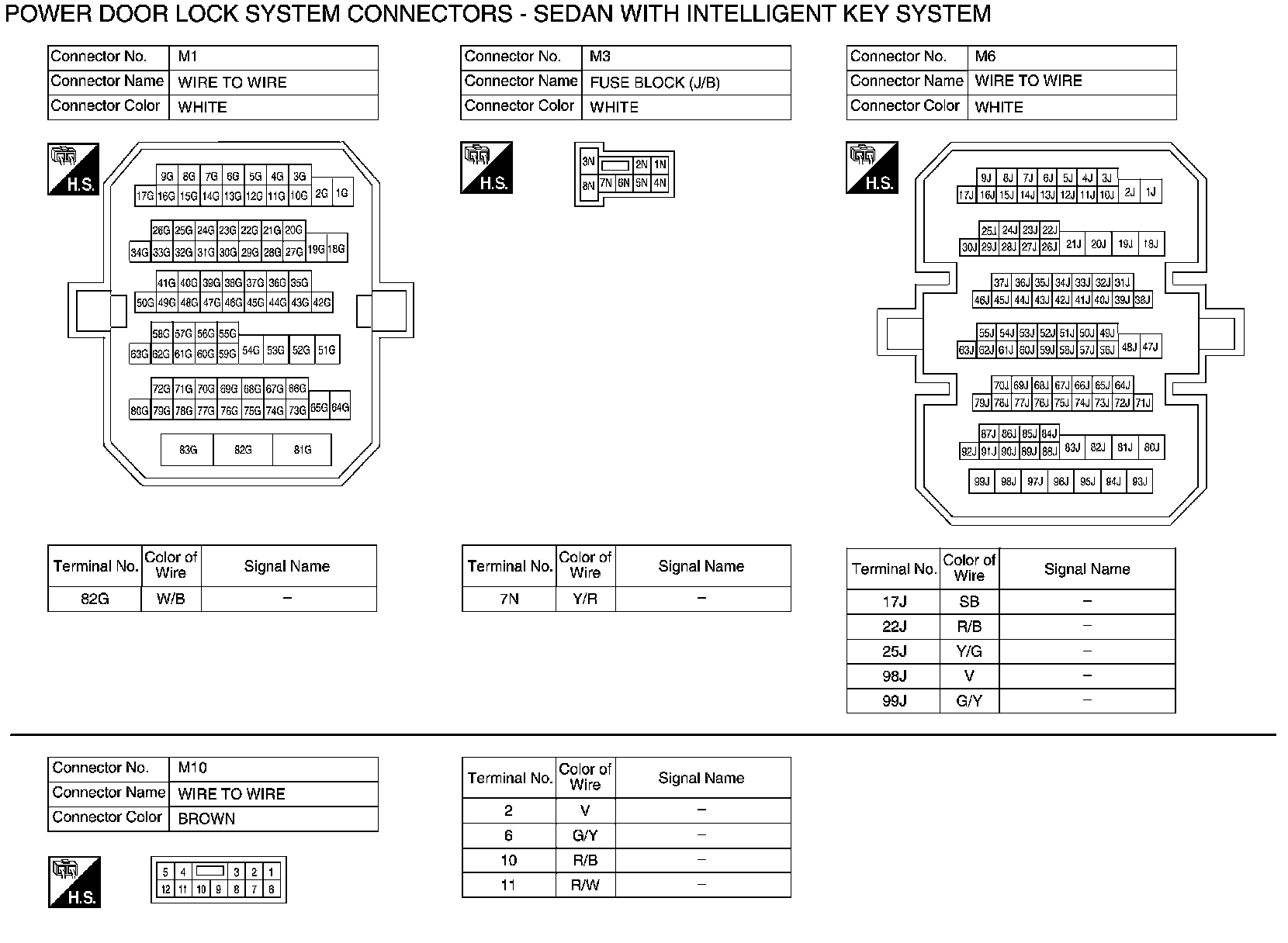

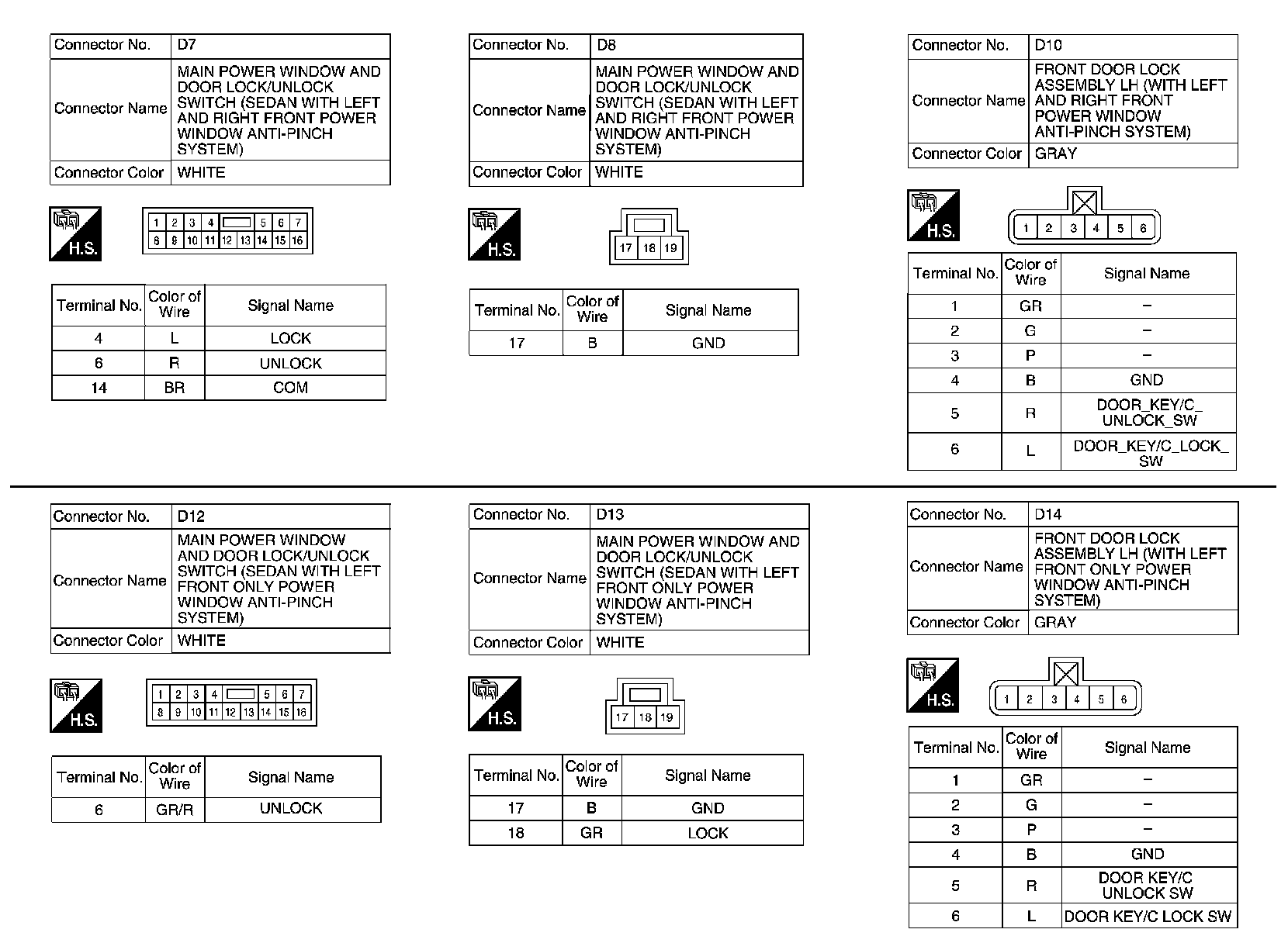

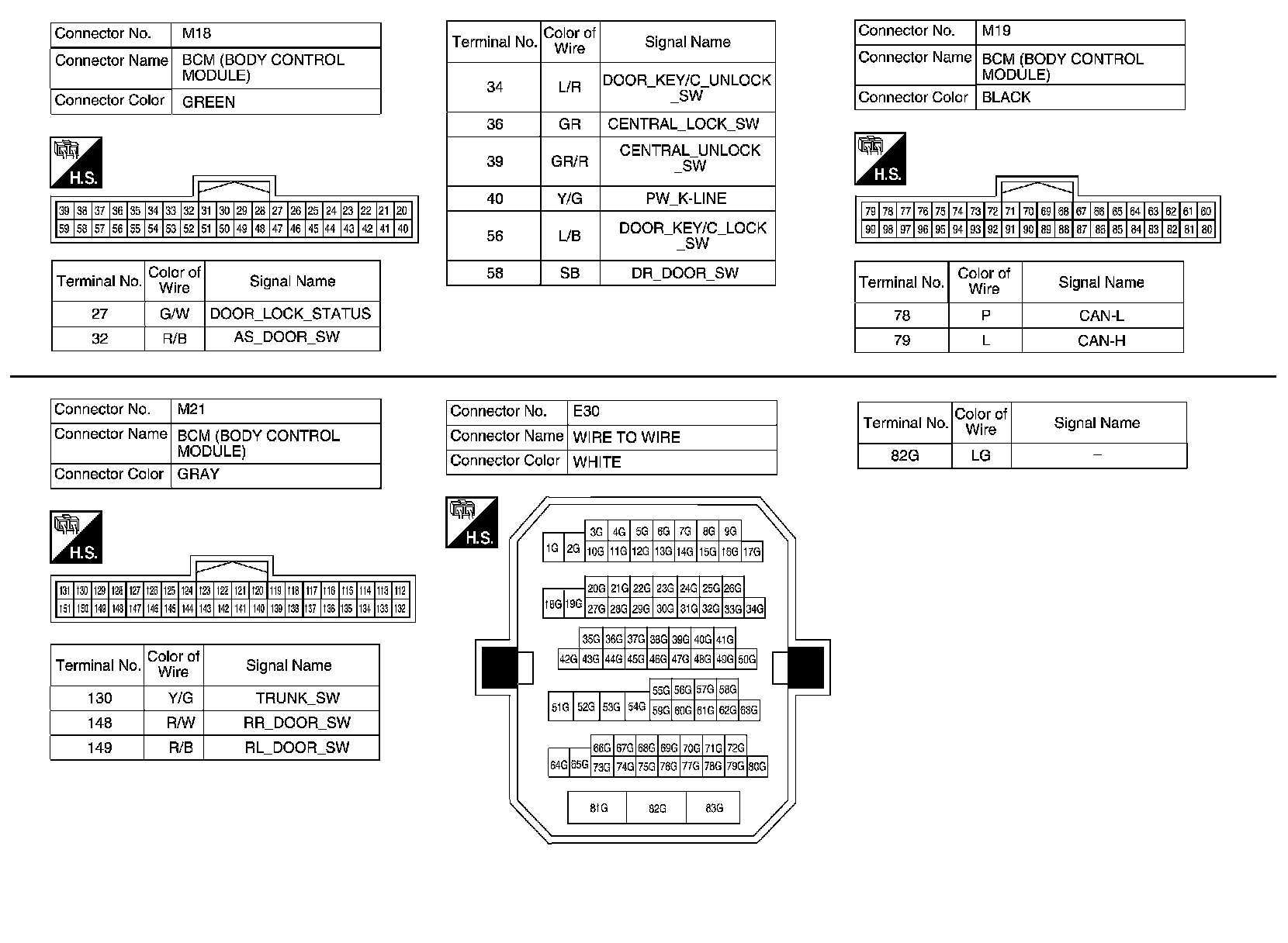

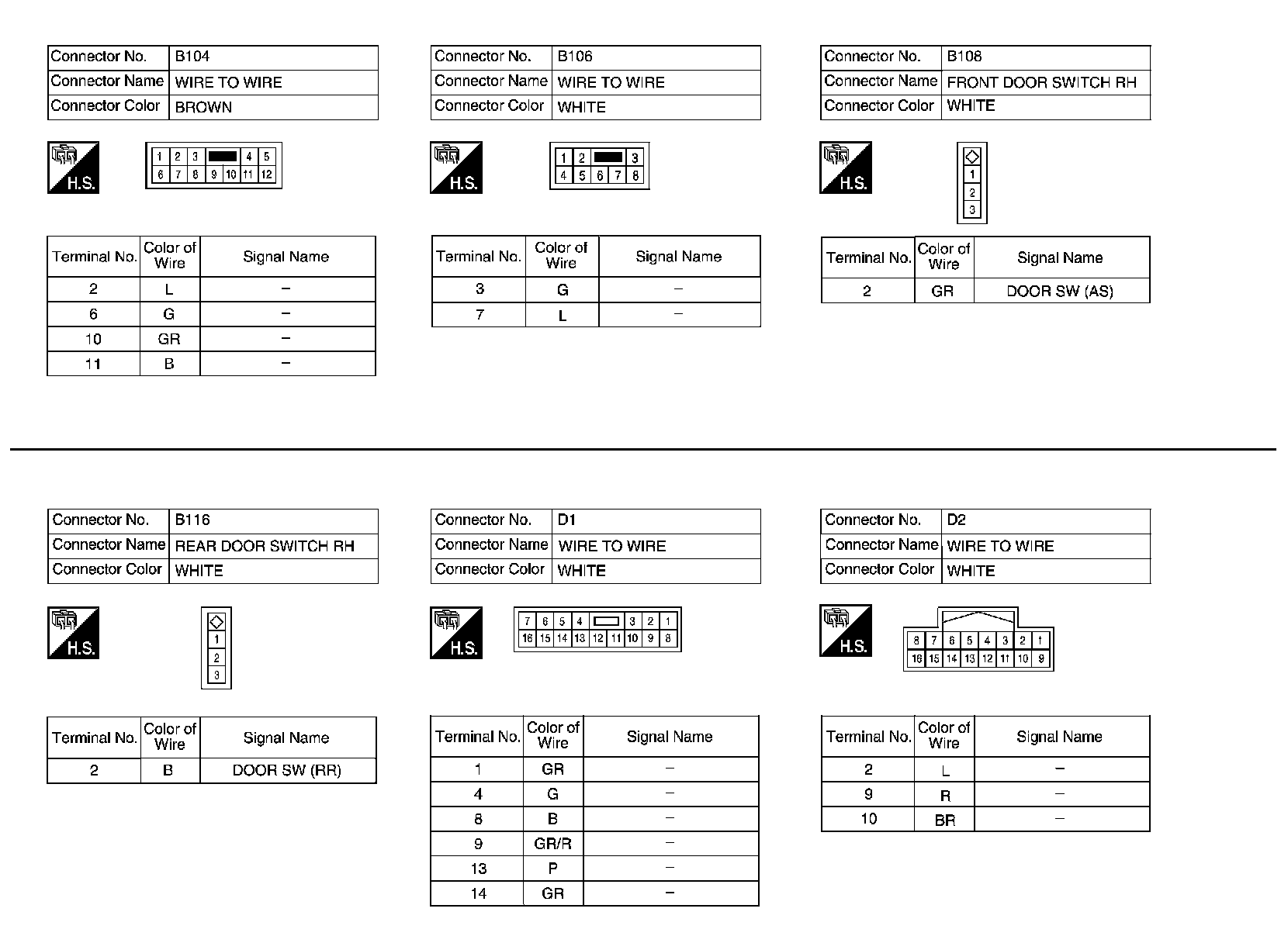

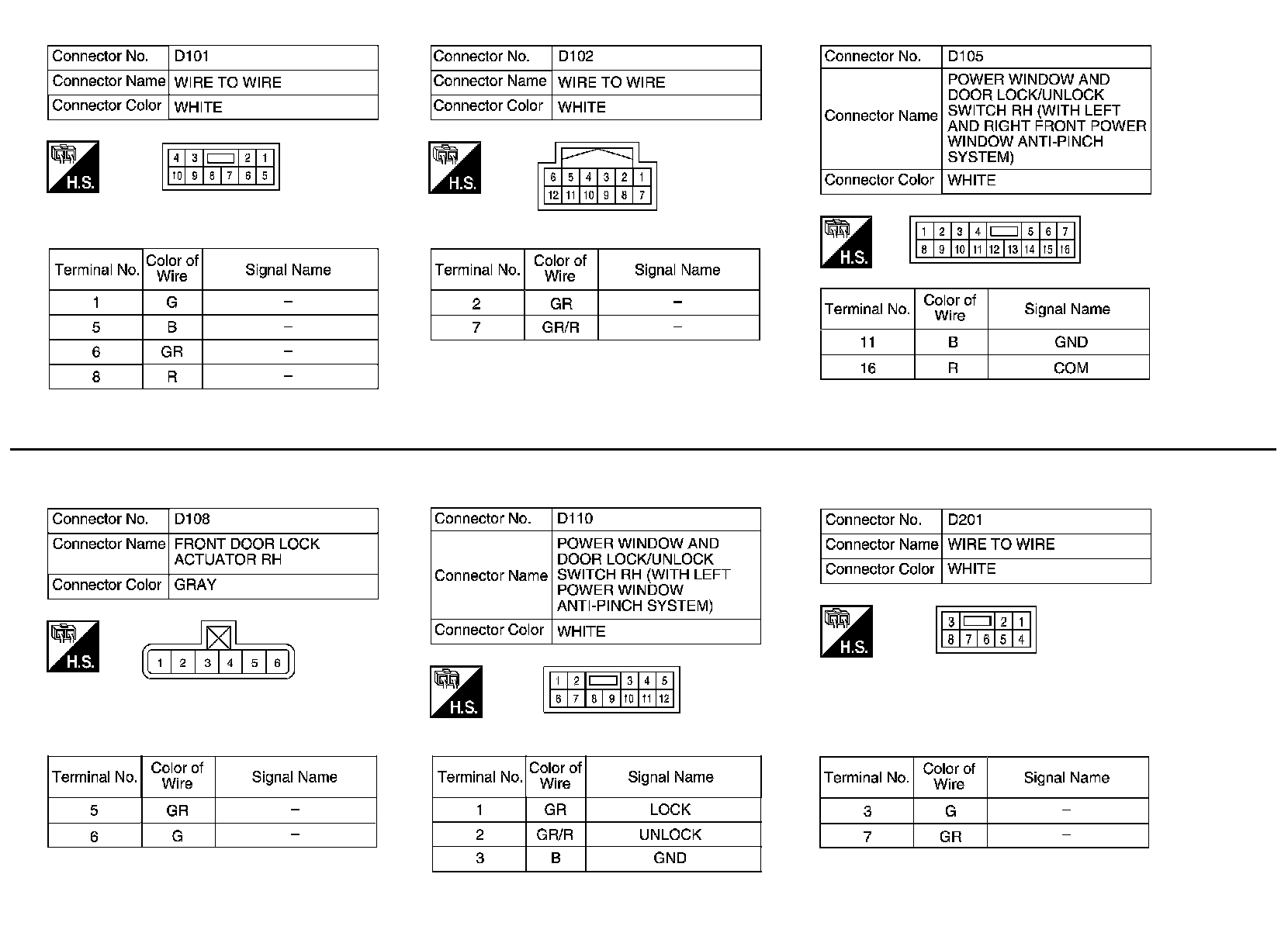

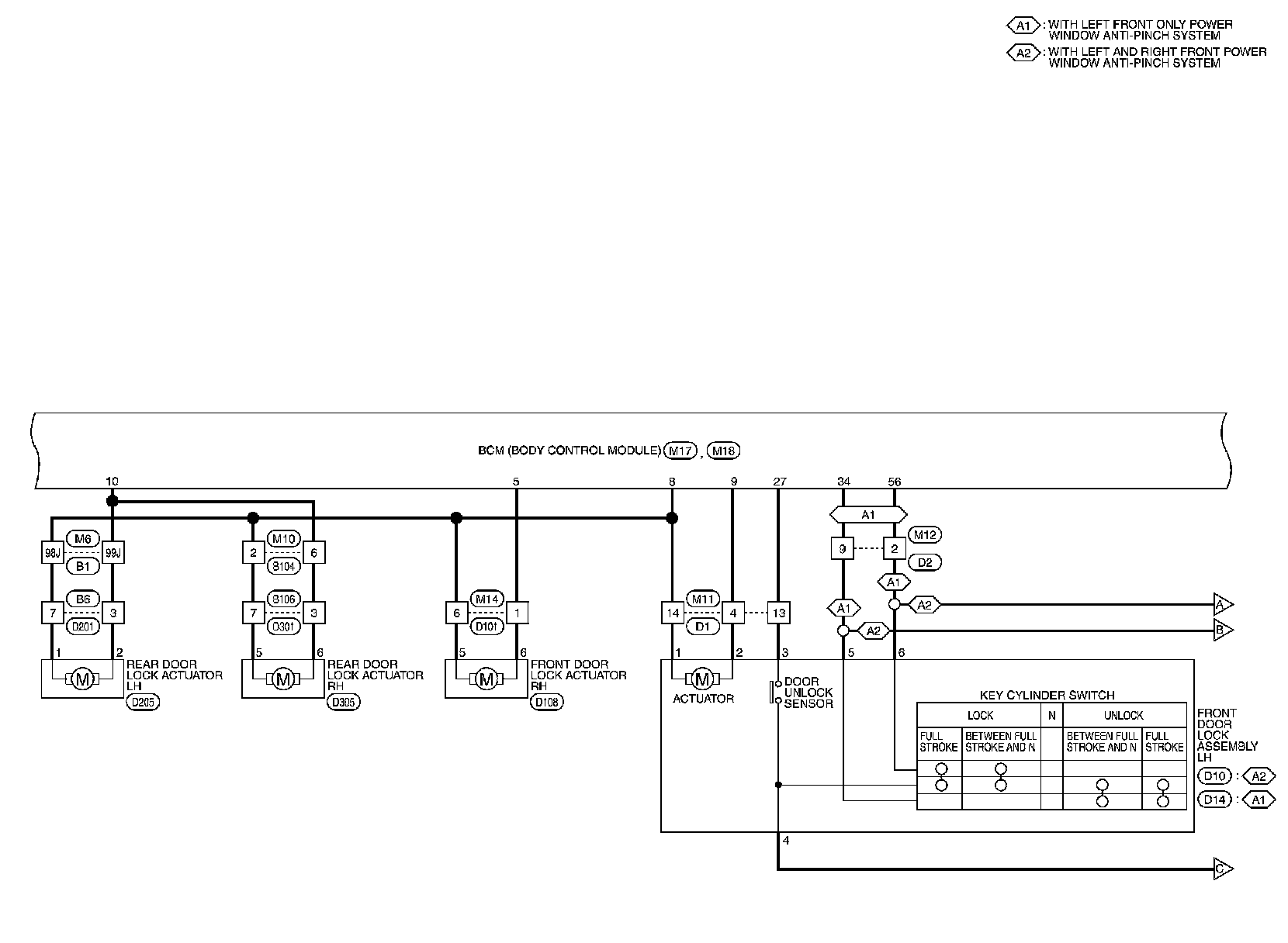

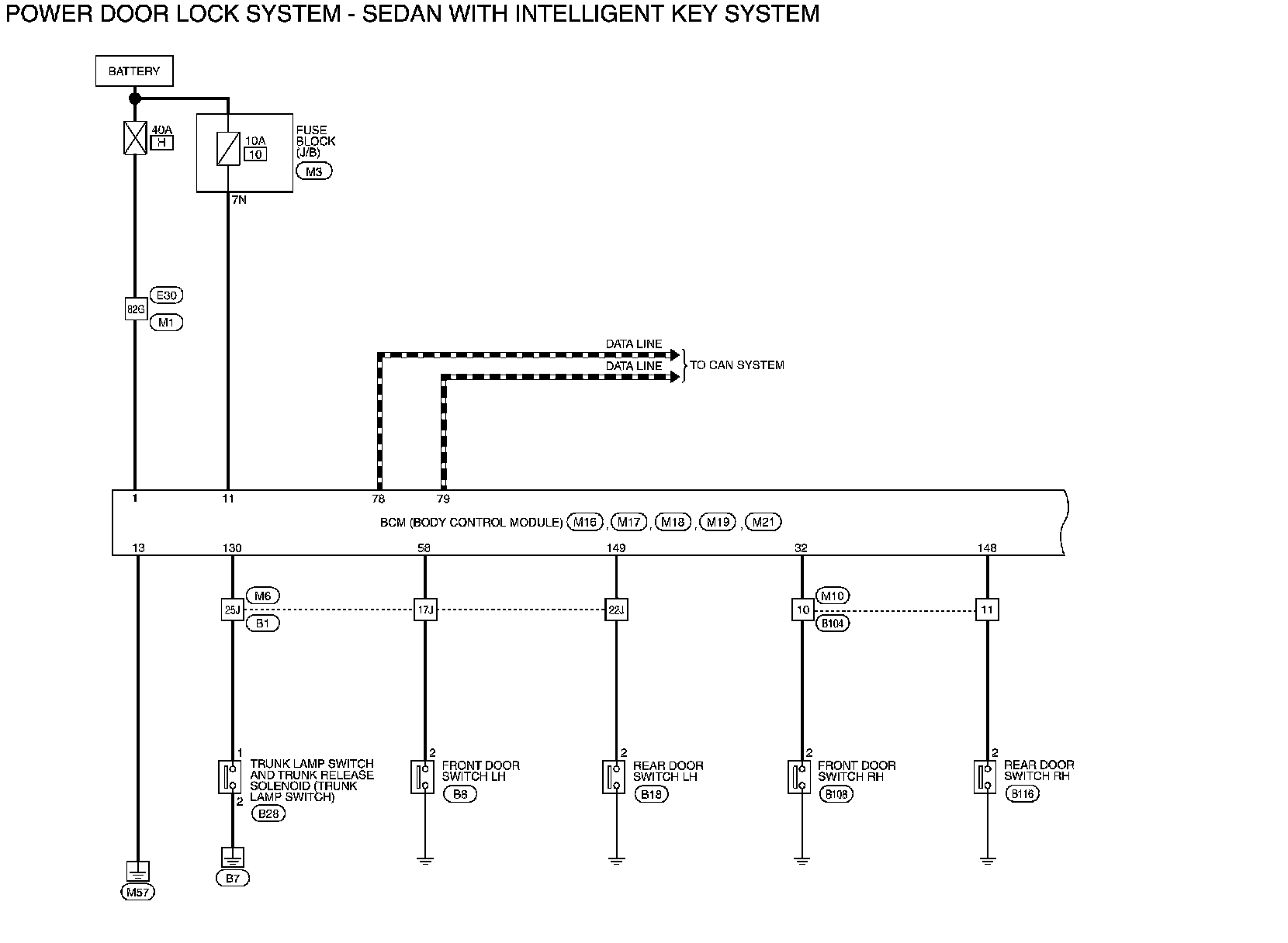

Wiring Diagram - Sedan With Intelligent Key
