Automatic Air Conditioning




AIR CONDITIONER CONTROL

Reference Value


VALUES ON THE DIAGNOSIS TOOL

Display Item List






TERMINAL LAYOUT

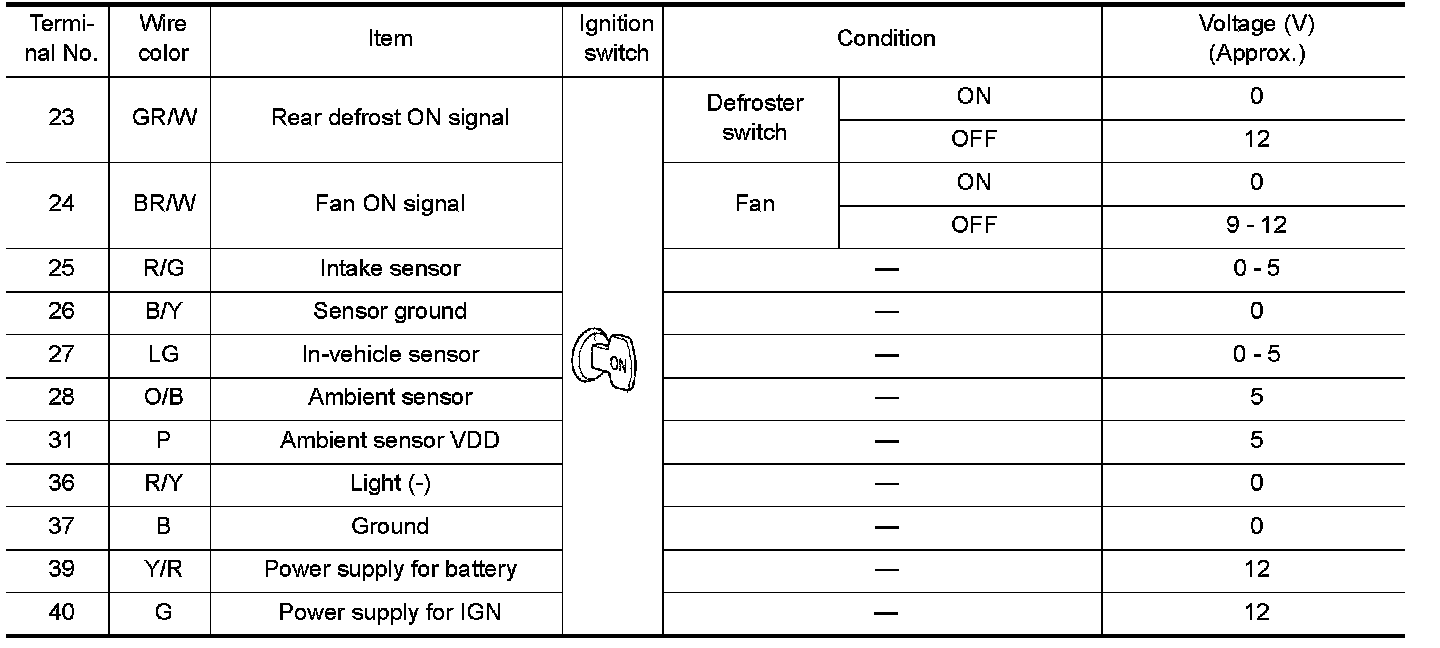

PHYSICAL VALUES
