Removal and Replacement

FRONT COMBINATION LAMP

Removal and Installation


FRONT COMBINATION LAMP

Removal
1.Disconnect battery negative terminal (xenon only).
2.Remove the front bumper fascia. Coupe.
3.Ensure lighting switch is OFF.

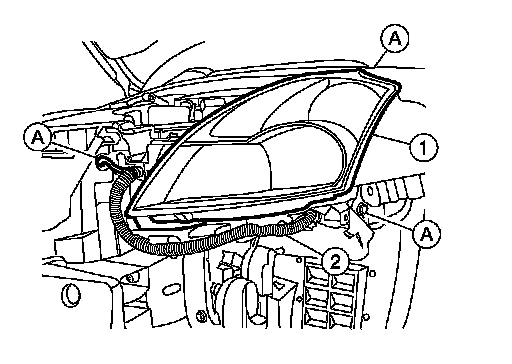

4.Remove the front combination lamp bolts (A).
5.Pull the front combination lamp (1) toward the front of the vehicle.
6.Disconnect the bulb connectors and remove the front combination lamp harness (2) from the front combination lamp (1).
Installation
Installation is in the reverse order of removal.
NOTE:
Confirm headlamp aiming adjustment. Adjustments.
