Ground Distribution Coupe




GROUND

Ground Distribution

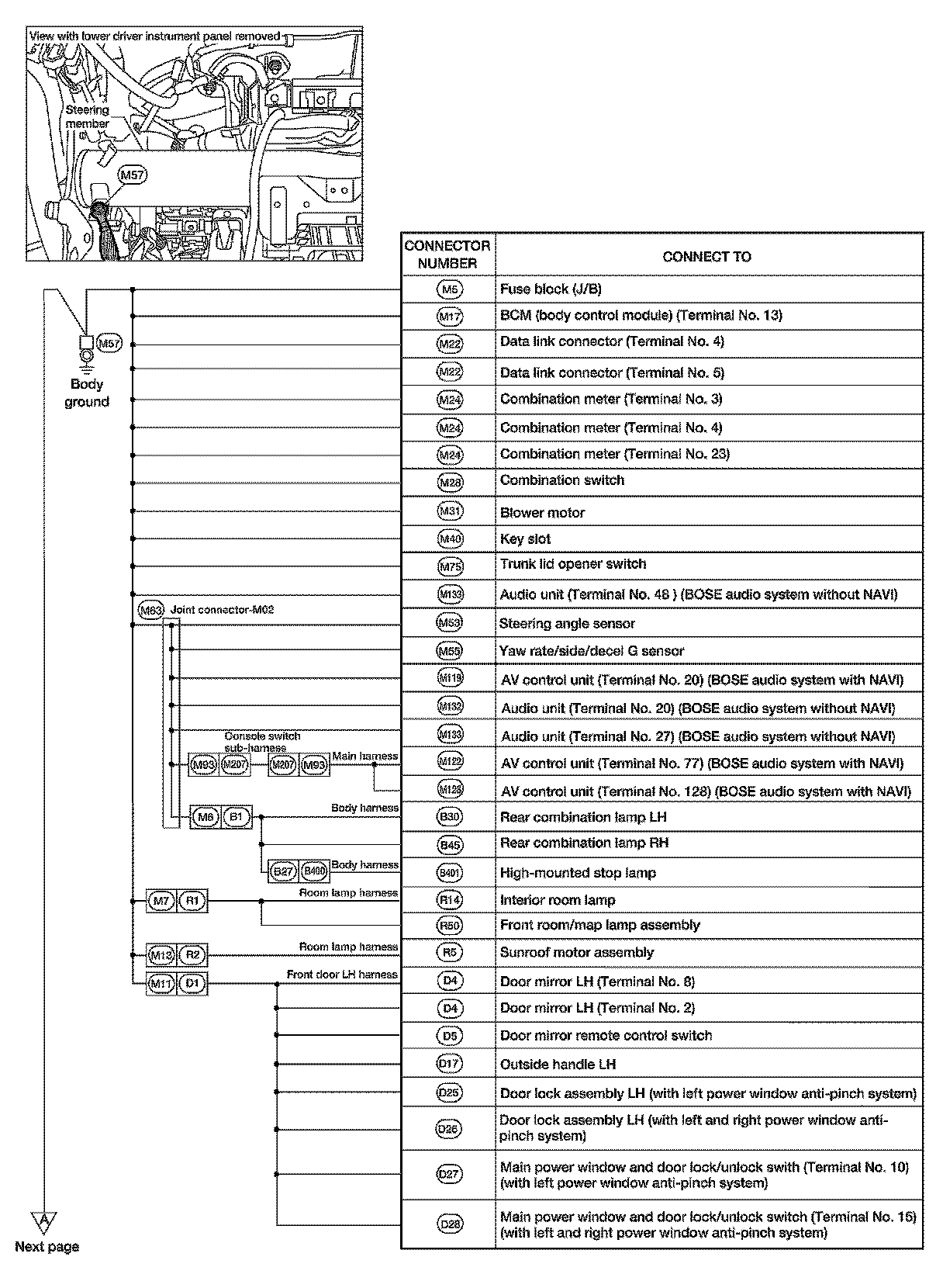

MAIN HARNESS












ENGINE ROOM HARNESS












FRONT END MODULE HARNESS

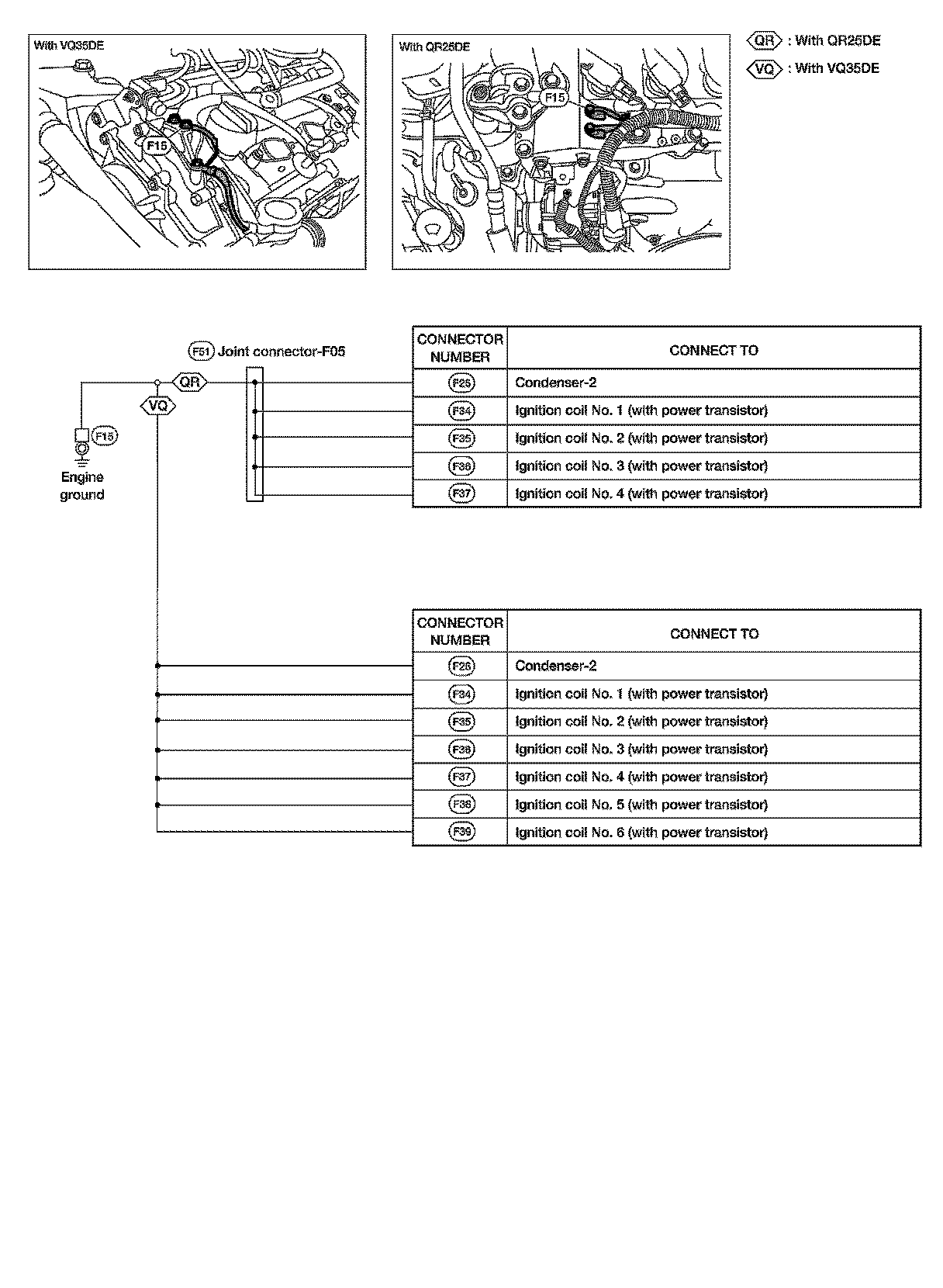

ENGINE CONTROL HARNESS

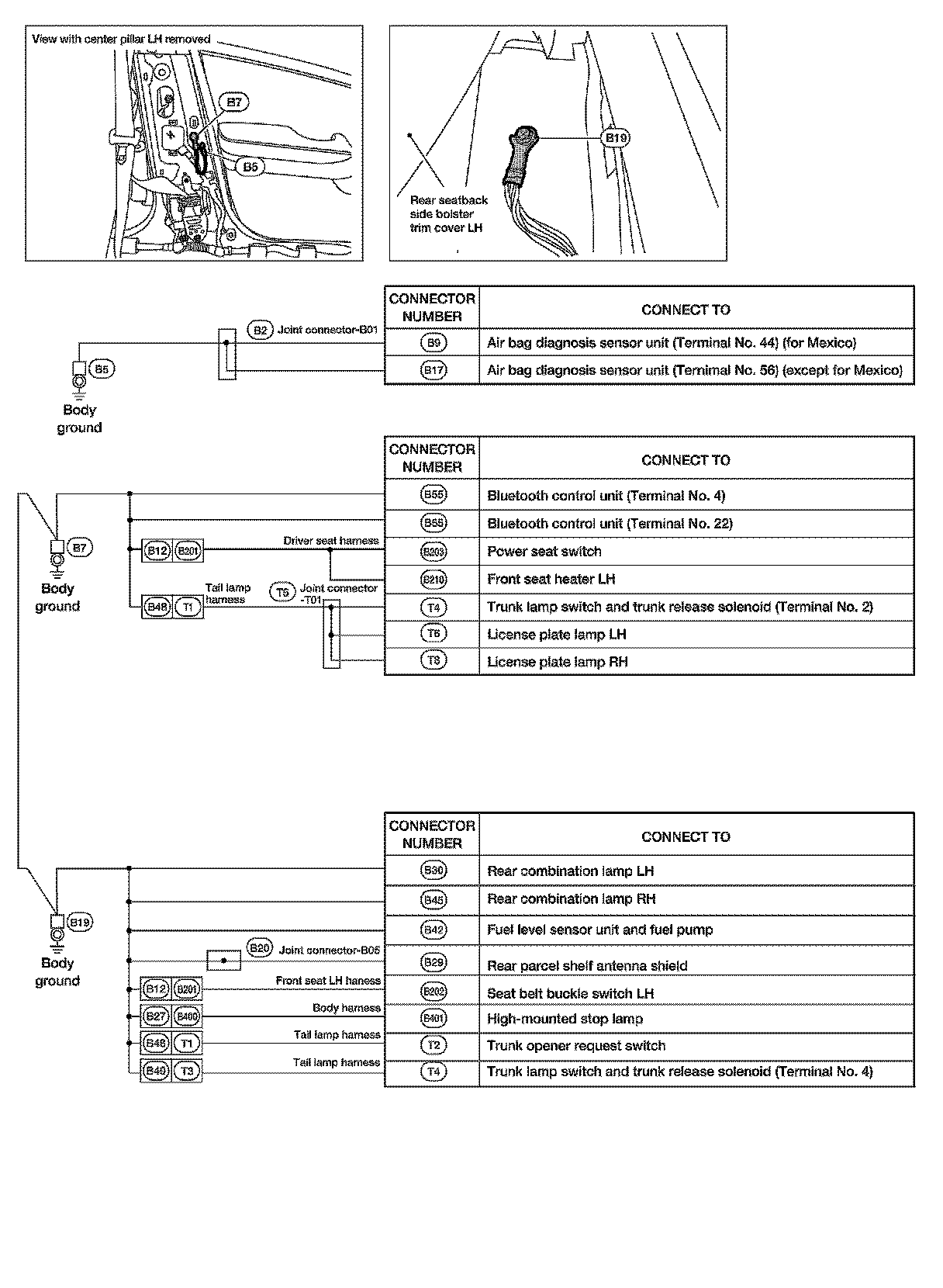

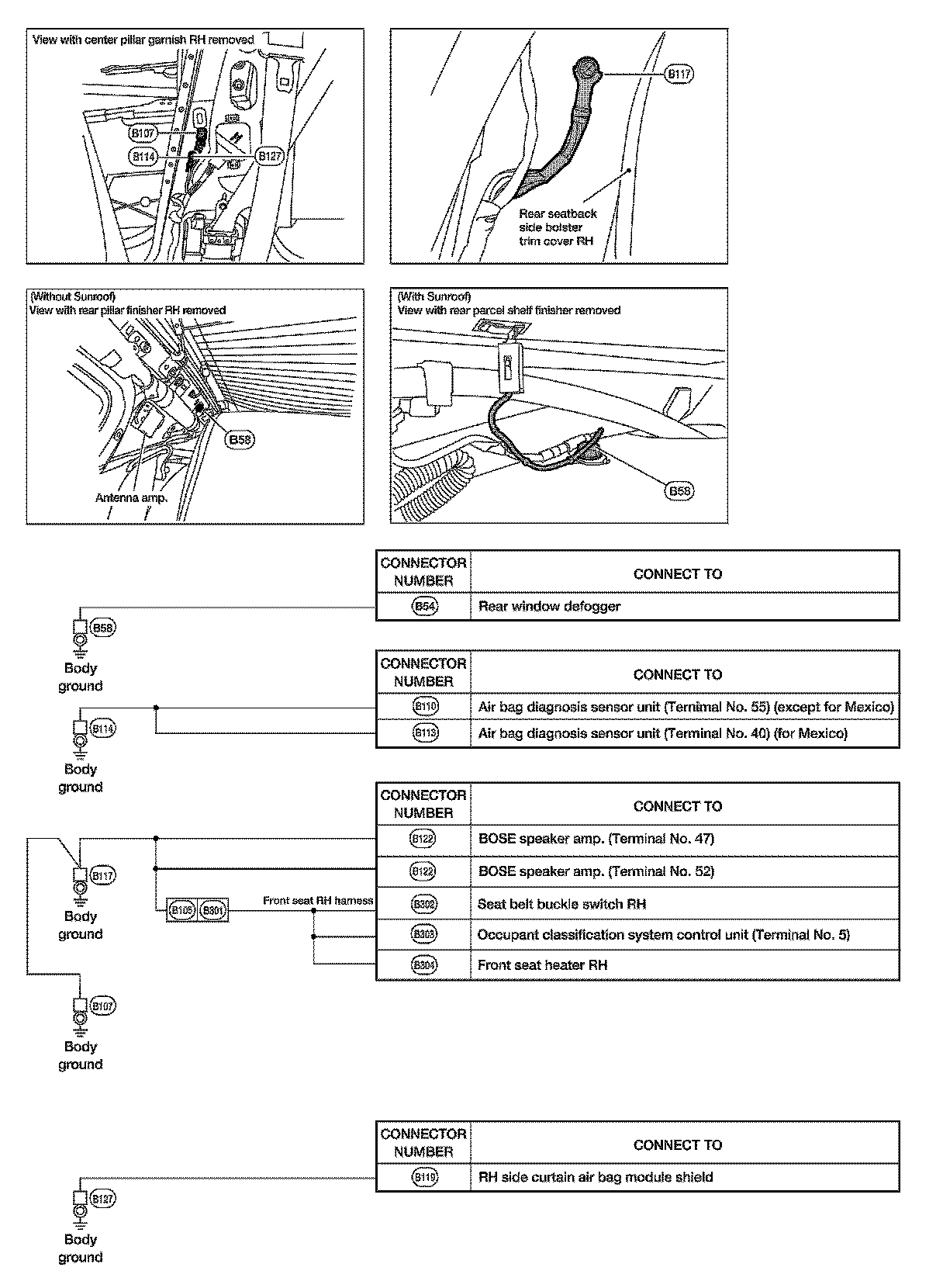

BODY HARNESS







BODY NO. 2 HARNESS
