B2267

Description

The engine speed signal is transmitted from ECM to the combination meter via CAN communication.


DTC Logic

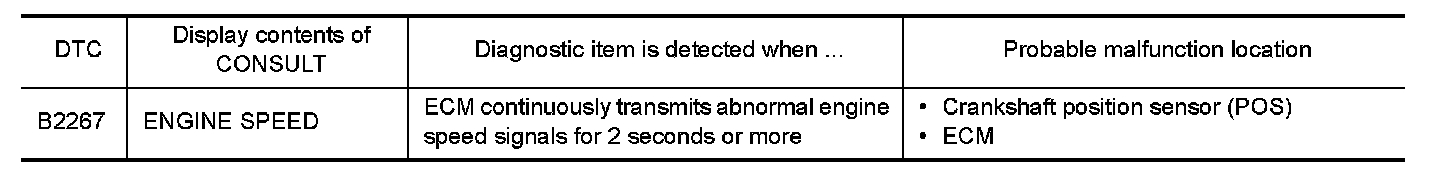

DTC DETECTION LOGIC








Diagnosis Procedure


1. PERFORM SELF-DIAGNOSIS OF ECM

Perform "Self Diagnostic Result" of ECM, and repair or replace malfunctioning parts.
- Testing and Inspection (Except for California) or Testing and Inspection (For California).
