B26FC

B26FC KEY REGISTRATION

Description

When door request switch or push-button ignition switch is pressed, BCM verifies Intelligent Key that is registered to the vehicle. If verification result is OK, door lock, door unlock, and engine start are allowed.


DTC Logic

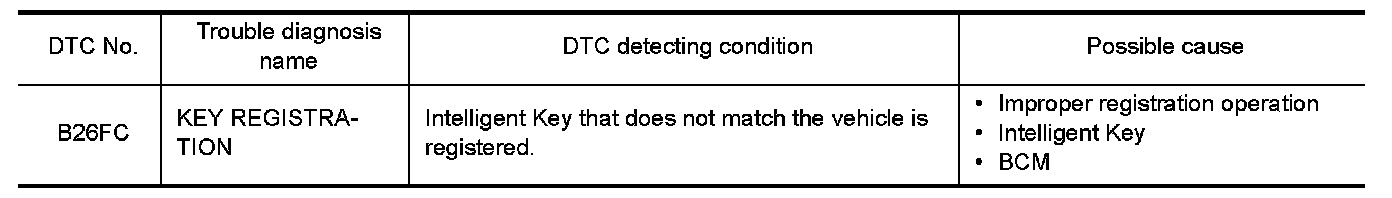

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
2.Check "Self-diagnosis result" using CONSULT.
Is DTC detected?
YES- Go to
NO- INSPECTION END


Diagnosis Procedure


1. REPLACE INTELLIGENT KEY

1.Replace Intelligent Key that matches the vehicle.
2.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
3.Check "Self-diagnosis result" using CONSULT.
Is DTC detected?
YES- Replace BCM. Removal And Installation.
NO- INSPECTION END
