C1609

DTC Logic

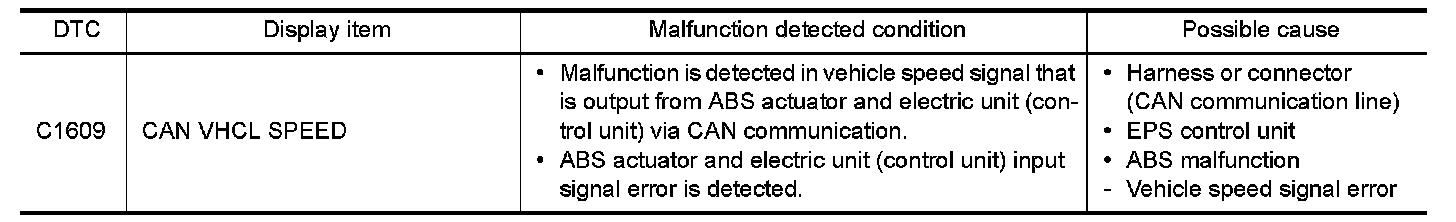

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. DTC REPRODUCTION PROCEDURE

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform "EPS" self-diagnosis.
Is DTC "C1609" detected?
YES- Proceed to diagnosis procedure. .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform "ABS" self-diagnosis.
Is any DTC detected?
YES- Check the DTC. Testing and Inspection.
NO- GO TO 2.

2. CHECK TERMINALS AND HARNESS CONNECTORS

Check EPS control unit pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace error-detected parts.

3. PERFORM SELF-DIAGNOSIS

With CONSULT
Perform "EPS" self-diagnosis.
Is DTC "C1609" detected?
YES- Replace EPS control unit. Removal And Installation.
NO- Check intermittent incident. Intermittent Incident.
