ASCD INDICATOR

Description

ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two indicators, CRUISE and
SET, and is integrated in combination meter.
CRUISE lamp illuminates when MAIN switch on ASCD steering switch is turned ON to indicated that ASCD
system is ready for operation.
SET lamp illuminates when following conditions are met.
- CRUISE lamp is illuminated.
- SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of ASCD
setting.
SET lamp remains lit during ASCD control.
For California for the ASCD function.


Component Function Check


1. ASCD INDICATOR FUNCTION

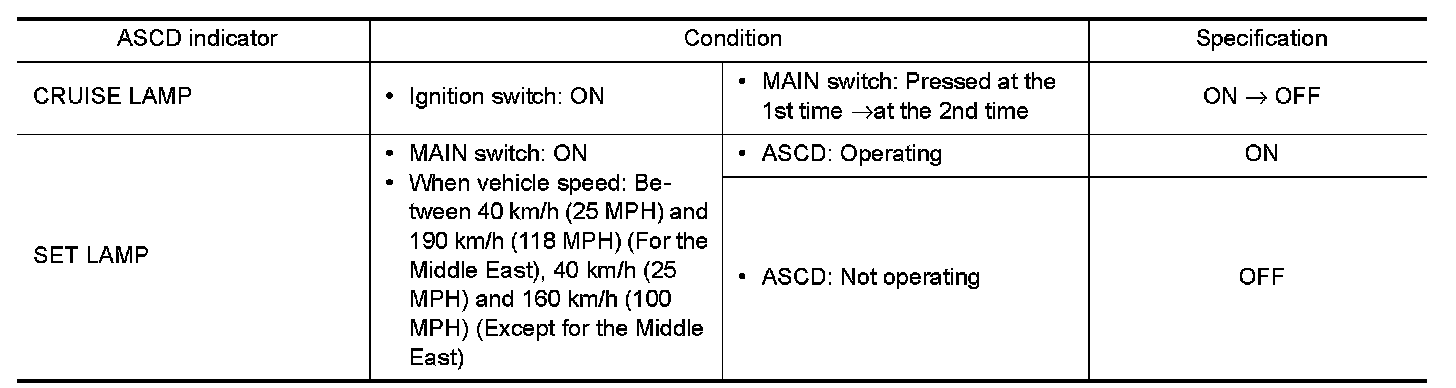

Check ASCD indicator under the following conditions.





Is the inspection result normal?
YES- INSPECTION END
NO- Go to .


Diagnosis Procedure


1. CHECK DTC

Check that DTC U1001 is not displayed.
Is DTC detected?
NO- GO TO 2.
YES- Perform trouble diagnosis for DTC U1001. For California.

2. CHECK COMBINATION METER OPERATION

System Description.
Is the inspection result normal?
YES- GO TO 3.
NO- Check combination meter circuit. Refer to System Diagram.

3. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
