Mirrors

DOOR MIRROR

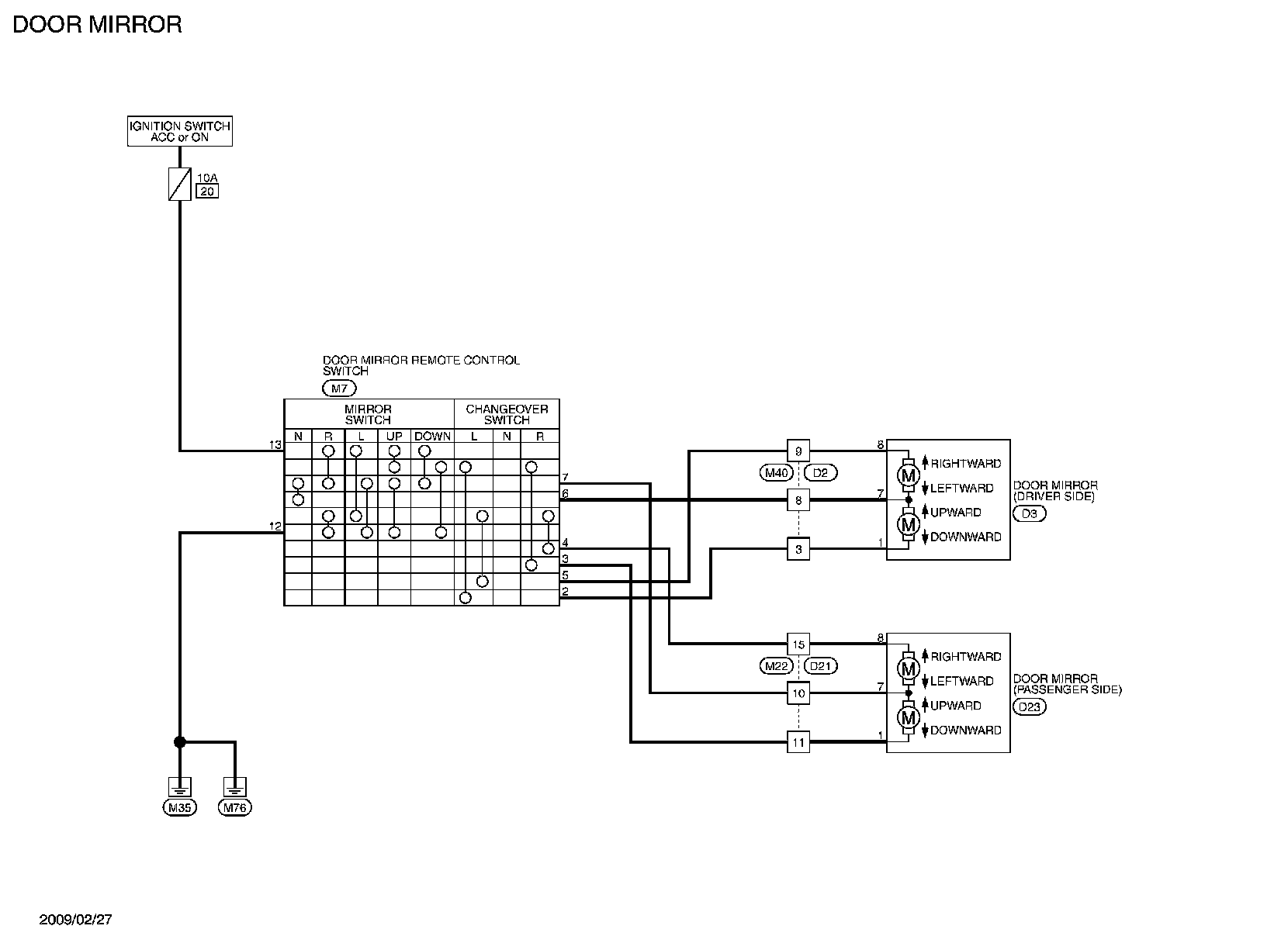

Wiring Diagram - MIRROR SYSTEM

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
