Transmission Control Systems
TCM

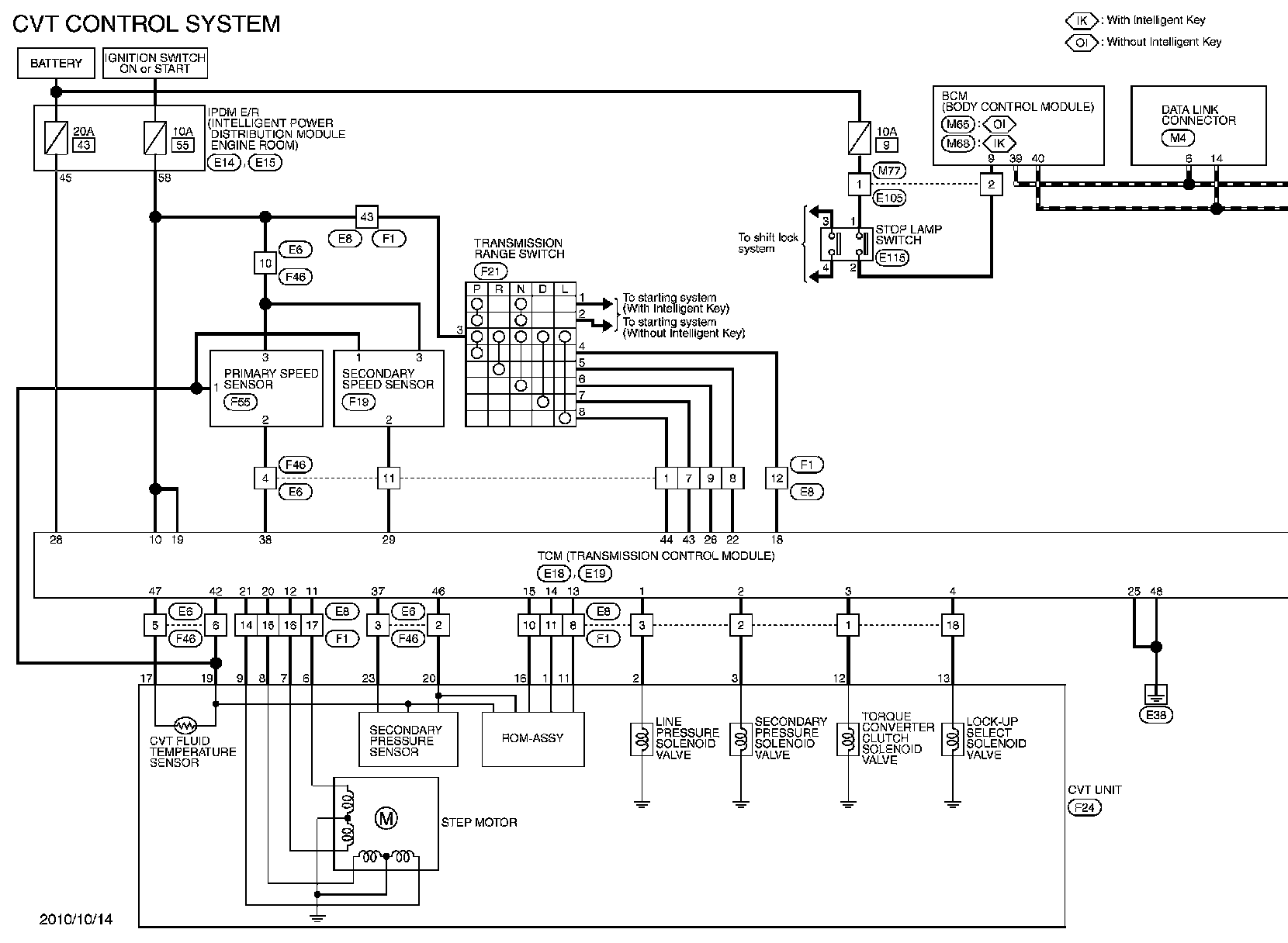

Wiring Diagram - CVT CONTROL SYSTEM
For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
TCM
Wiring Diagram - CVT CONTROL SYSTEM
For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
