Blower Motor Switch: Description and Operation

VENTILATION SYSTEM

System Description


OUTLINE

Ventilation system is controlled by A/C auto amp. (AUTOMATIC AIR CONDITIONING) or A/C control (MANUAL AIR CONDITIONING and MANUAL HEATER). For details of air conditioning system, System Description (AUTOMATIC AIR CONDITIONING), System Description (MANUAL AIR
CONDITIONING).

AIR FLOW

Front

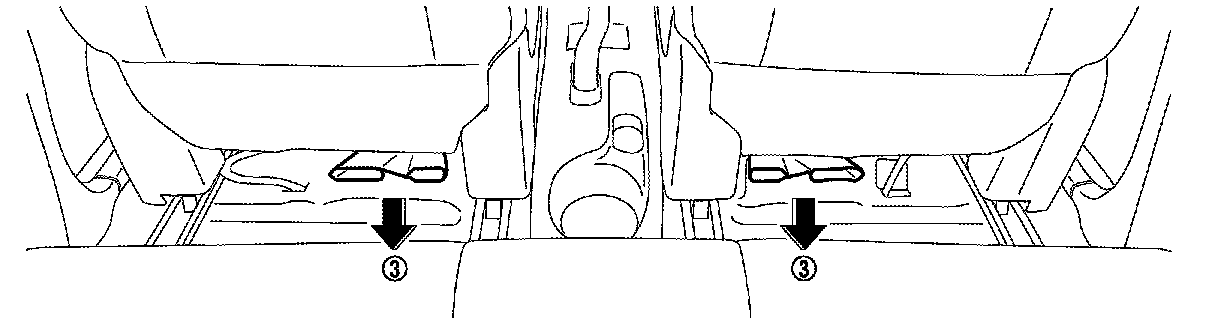

Rear

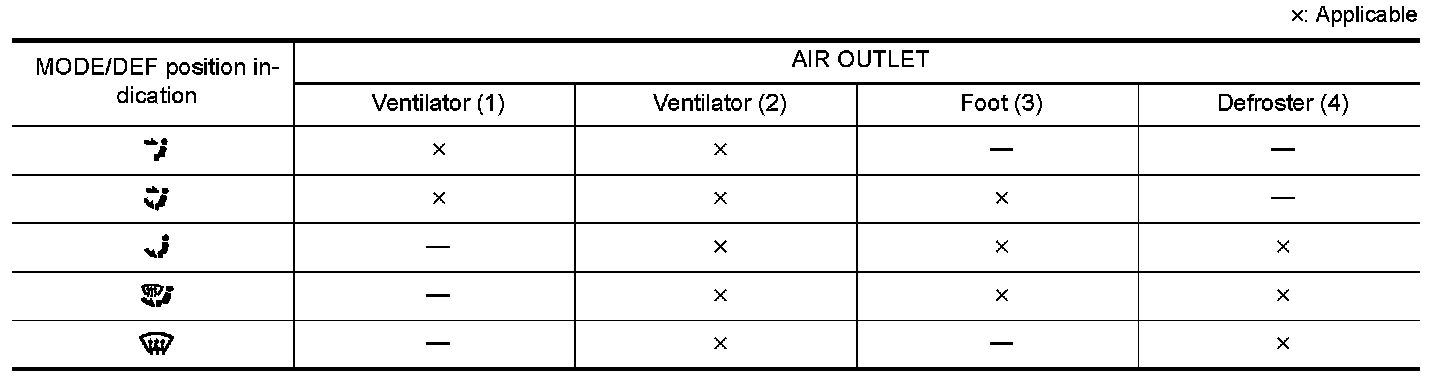

x: Applicable
