Manual Air Conditioning System

MANUAL AIR CONDITIONING SYSTEM

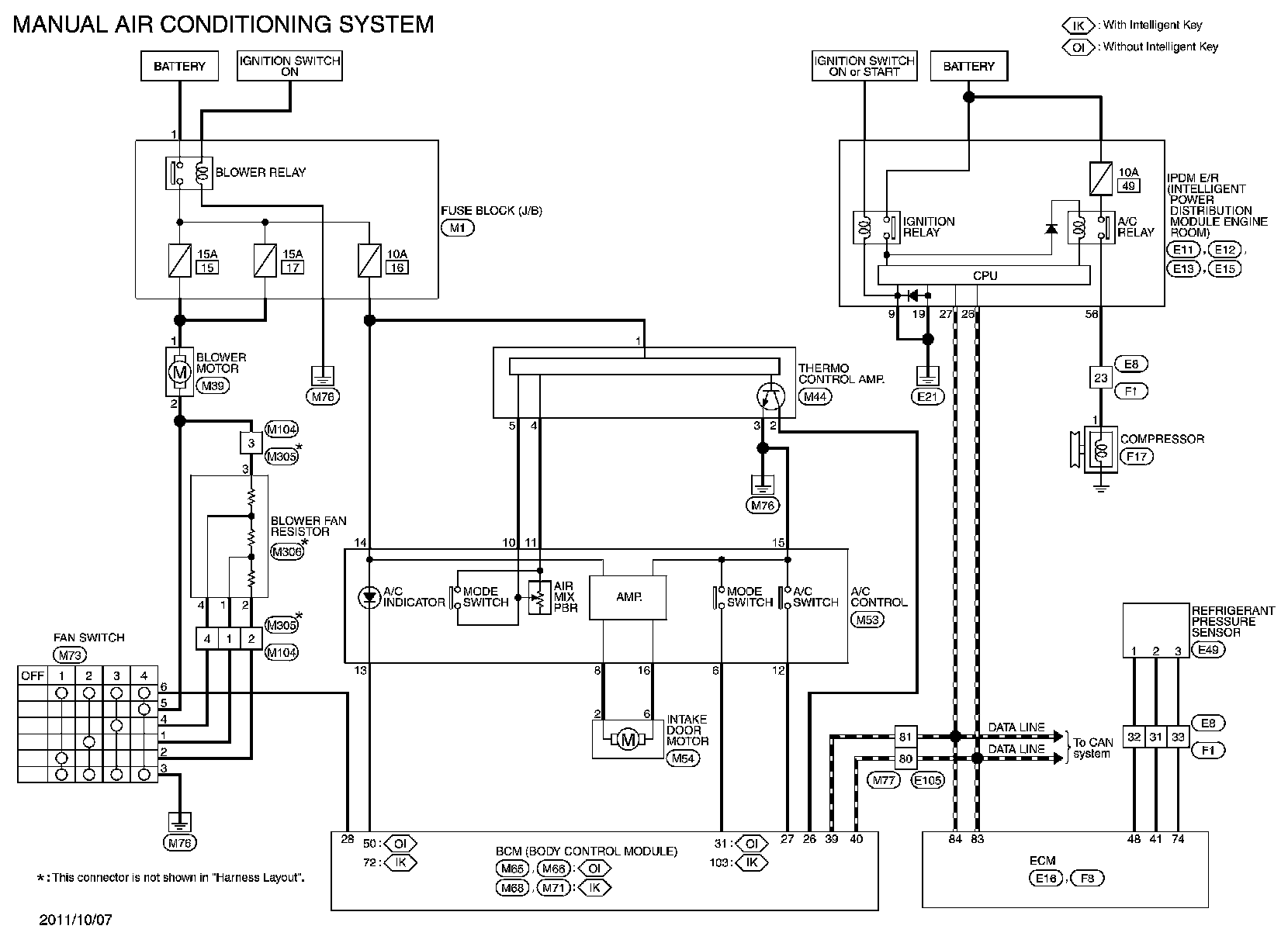

Wiring Diagram - MANUAL AIR CONDITIONING SYSTEM

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
