Timing Component Alignment Marks: Locations

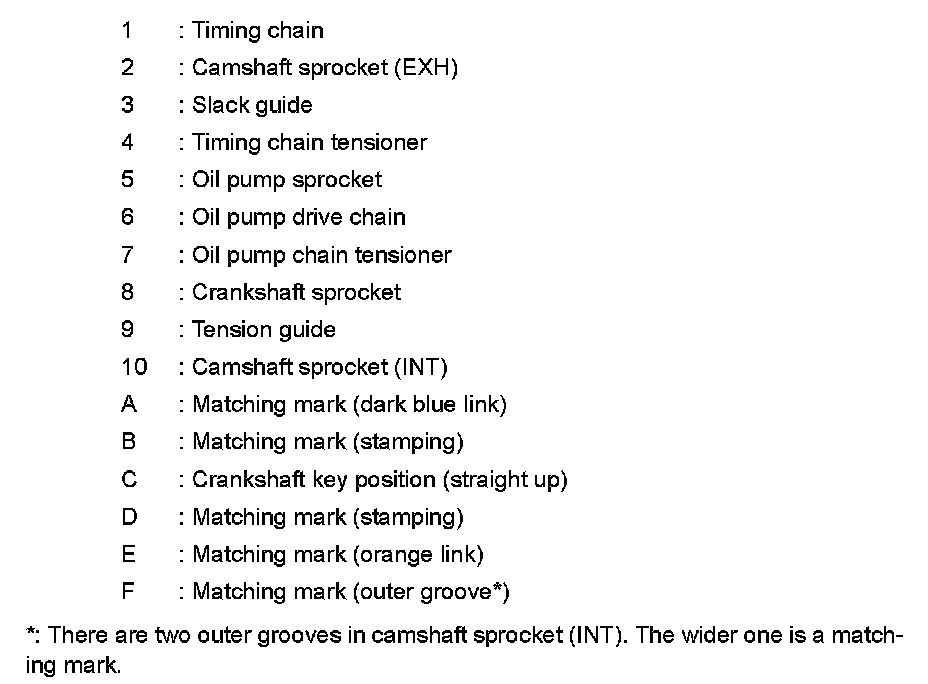

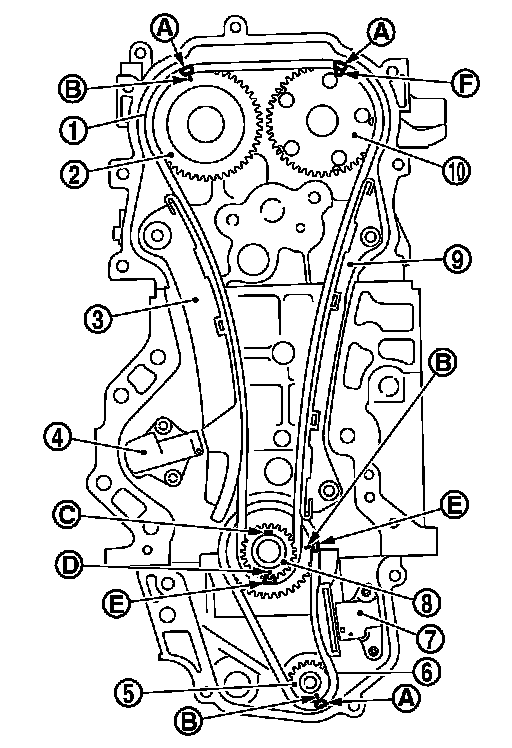

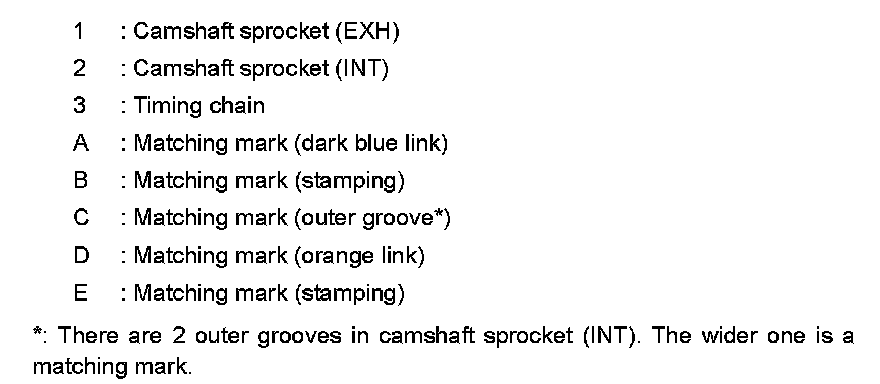

-Align the matching marks of each sprockets with the matching marks of timing chain.
