Exhaust Manifold

SERVICE DATA AND SPECIFICATIONS (SDS)

Exhaust Manifold

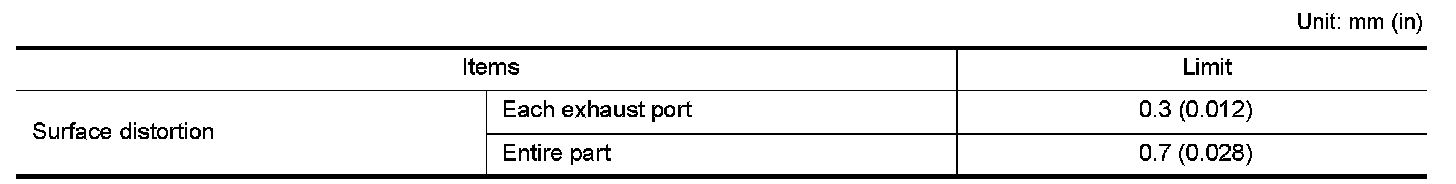

EXHAUST MANIFOLD

Unit: mm (in)

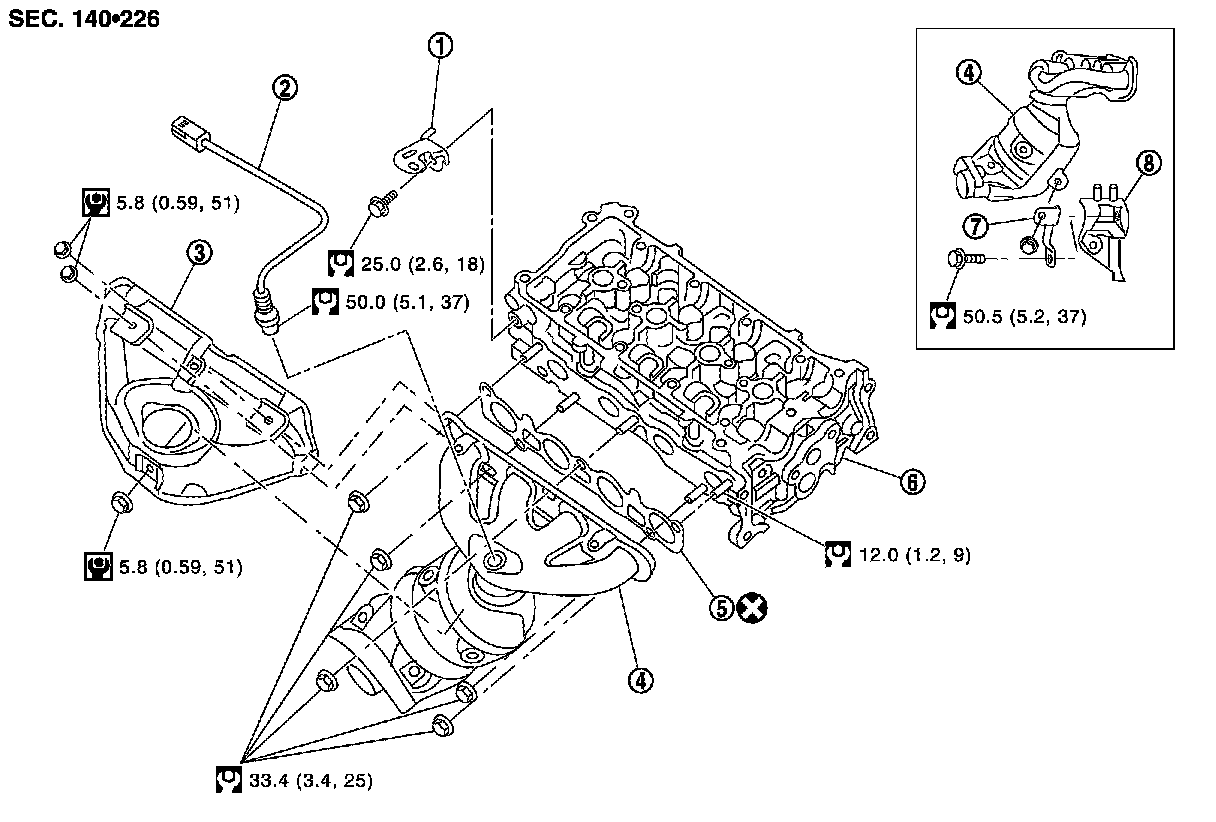

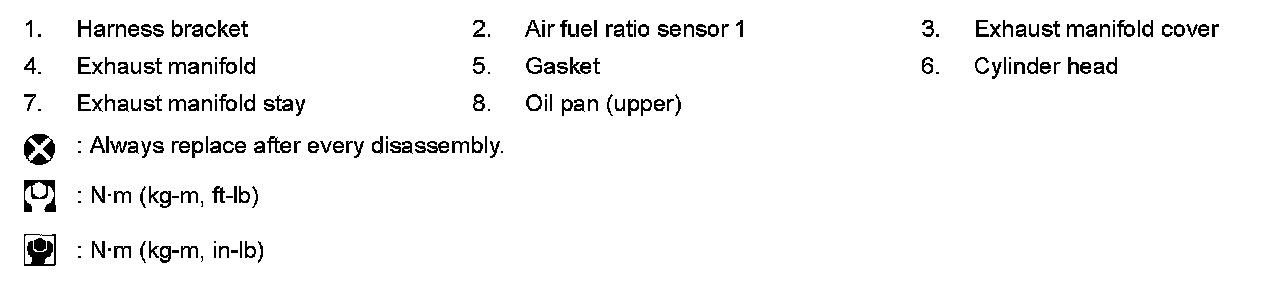

Exhaust manifold






Tighten nuts in the order of 1 to 8 as shown in the figure.

White arrow indicates : Engine front

NOTE:
- The figure shows except for CALIFORNIA as an example.
- No. 6 to 8 mean double tightening of nuts No. 1 to 3.








For CALIFORNIA










Except for CALIFORNIA
