Flex Plate

Drive plate (CVT models) 108 N.m (11 kg-m, 80 ft-lb)



Drive plate (CVT models)

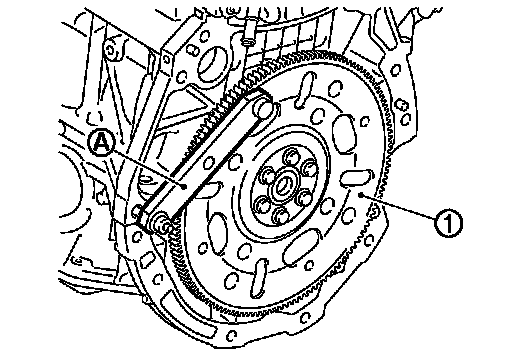

Secure crankshaft with a stopper plate [SST: KV-11105210 (J44716)], (A) and tighten mounting bolts crosswise over several times.
