B2192

B2192 ID DISCORD, IMMU-ECM

DTC Logic

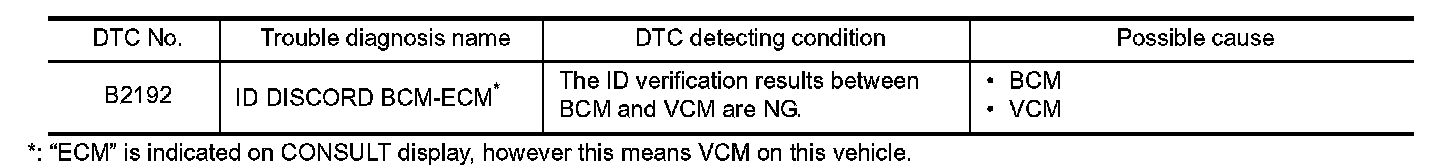

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn power switch ON.
2.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM INITIALIZATION

1.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
2.Check that the vehicle can be set to READY using registered Intelligent Key.
Is the inspection result normal?
YES- INSPECTION END
NO- GO TO 2.

2. CHECK SELF-DIAGNOSIS RESULT

1.Select "Self Diagnostic Result" mode of "BCM" using CONSULT.
2.Erase DTC.
3.Perform DTC CONFIRMATION PROCEDURE for DTC B2192. Refer to "DTC Logic" .
Is DTC detected?
YES- GO TO 3.
NO- INSPECTION END

3. REPLACE BCM

1.Replace BCM. Refer to "Removal and Installation" Service and Repair.
2.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
3.Check that the vehicle can be set to READY using registered Intelligent Key.
Is the inspection result normal?
YES- INSPECTION END
NO- GO TO 4.

4. REPLACE VCM

Replace VCM. Refer to "Removal and Installation" Removal And Installation.
- INSPECTION END
