B2195

B2195 ANTI-SCANNING

DTC Logic

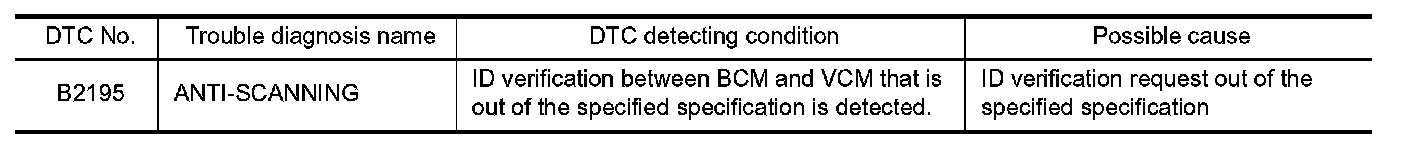

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn power switch ON.
2.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Refer to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK SELF DIAGNOSTIC RESULT 1

1.Select "Self Diagnostic Result" mode of "BCM" using CONSULT.
2.Erase DTC.
3.Perform DTC CONFIRMATION PROCEDURE for DTC B2195. Refer to "DTC Logic" .
Is DTC detected?
YES- GO TO 2.
NO- INSPECTION END

2. CHECK EQUIPMENT OF THE VEHICLE

Check that unspecified accessory part related to set vehicle to READY is not installed.
Is unspecified accessory part installed?
YES- GO TO 3.
NO- GO TO 4.

3. CHECK SELF DIAGNOSTIC RESULT 2

1.Obtain the customers approval to remove unspecified accessory part related to set vehicle to READY, and then remove it.
2.Select "Self Diagnostic Result" of "BCM" using CONSULT.
3.Erase DTC.
4.Perform DTC CONFIRMATION PROCEDURE for DTC B2195. Refer to "DTC Logic" .
Is DTC detected?
YES- GO TO 4.
NO- INSPECTION END

4. REPLACE BCM

1.Replace BCM. Refer to "Removal and Installation" Service and Repair.
2.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
- INSPECTION END
