B26F7

B26F7 BCM

DTC Logic

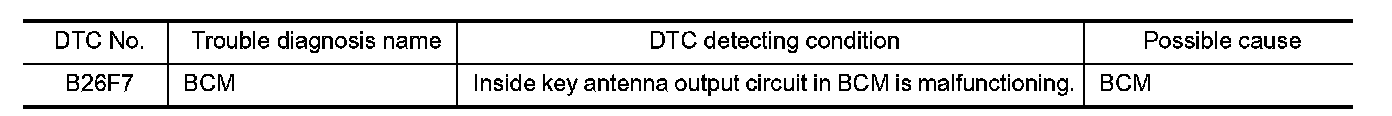

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Press door request switch.
2.Turn power switch ON.
3.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. INSPECTION START

1.Turn power switch ON.
2.Select "Self Diagnostic Result" mode of "BCM" using CONSULT.
3.Touch "ERASE".
4.Perform DTC CONFIRMATION PROCEDURE for DTC B26F7. Refer to "DTC Logic" .
Is DTC detected?
YES- GO TO 2.
NO- INSPECTION END

2. REPLACE BCM

1.Replace BCM. Refer to "Removal and Installation" Service and Repair.
2.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
- INSPECTION END
