B2821

DTC Logic

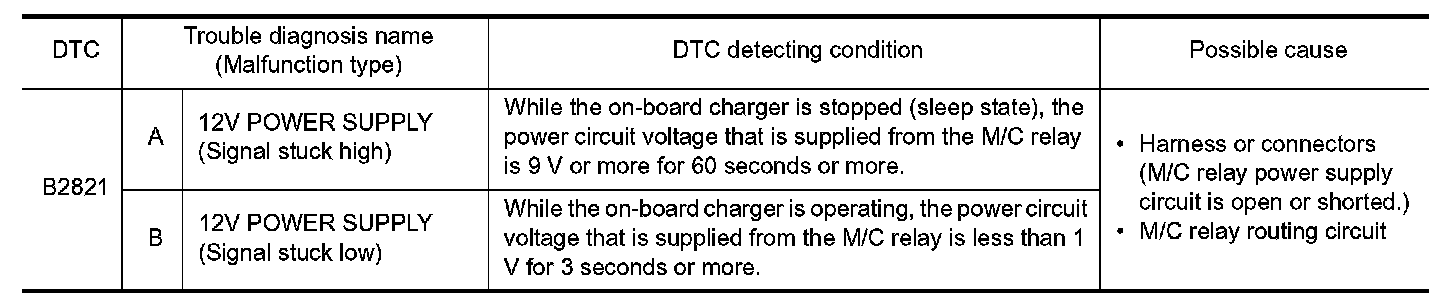

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE

TYPE A

1. PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT
1.Turn power switch ON and wait at least 10 seconds.
2.Turn power switch OFF and wait at least 90 seconds.
3.Turn power switch ON.
4.Check "SELF-DIAG RESULTS" of "CHARGER".
Is DTC detected?
YES- Proceed to "Diagnosis Procedure" .
NO- INSPECTION END
TYPE B

1. PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT
1.Turn power switch ON and wait at least 10 seconds.
2.Check "SELF-DIAG RESULTS" of "CHARGER".
Is DTC detected?
YES- Proceed to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM TROUBLE DIAGNOSIS FOR POWER SUPPLY CIRCUIT

Perform trouble diagnosis for power supply circuit. Refer to "Diagnosis Procedure" Power Supply And Ground Circuit.
Is the inspection result normal?
YES- Check intermittent incident. Refer to "Intermittent Incident" Intermittent Incident.
NO- Repair or replace error-detected parts.
