C10E0
DTC Logic
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1. PRECONDITIONING
If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn power switch OFF and wait at least 10 seconds before conducting the next test.
- GO TO 2.
2. CHECK DTC DETECTION
With CONSULT
1.Turn the power switch OFF to ON.
2.Press the parking brake switch.
CAUTION:
- Put the select lever in the P position.
- Depress the brake pedal.
3.Pull the parking brake switch.
4.Perform self-diagnosis for "EHS/PKB".
Is DTC "C10E0" detected?
YES (ACTUATOR ACTUATOR SLIPPING)-Proceed to "ACTUATOR SLIPPING : Diagnosis Procedure" .
YES (ACTUATOR COMMANDED POS NOT REACH)-Proceed to "COMMANDED POS NOT
REACH : Diagnosis Procedure".
YES (ACTUATOR MECHANICAL LINKAGE MALFNCTN)-Proceed to "MECHANICAL LINKAGE
MALFNCTN : Diagnosis Procedure".
YES (ACTUATOR PERFORMANCE/INCRRCT OPERAT)-Proceed to "PERFORMANCE/INCRRCT OPERAT : Diagnosis Procedure" .
YES (ACTUATOR UNEXPECTED OPERATION)-Proceed to "UNEXPECTED OPERATION : Diagnosis Procedure" .
NO- INSPECTION END
ACTUATOR SLIPPING : Diagnosis Procedure
1. CHECK THE CABLE
1.Turn the power switch OFF.
2.Check the each cable to see if it is stuck or broken.
Is the inspection result normal?
YES- GO TO 2.
NO-Replace the parking brake actuator or parking brake rear cable.
- Parking brake actuator: Refer to "Removal and Installation" Removal And Installation.
- Parking brake rear cable: "Removal and Installation" Removal And Installation.
2. CHECK PARKING BRAKE ACTUATOR CIRCUIT (1)
1.Disconnect parking brake actuator harness connector.
2.Disconnect electric parking brake control module harness connector.

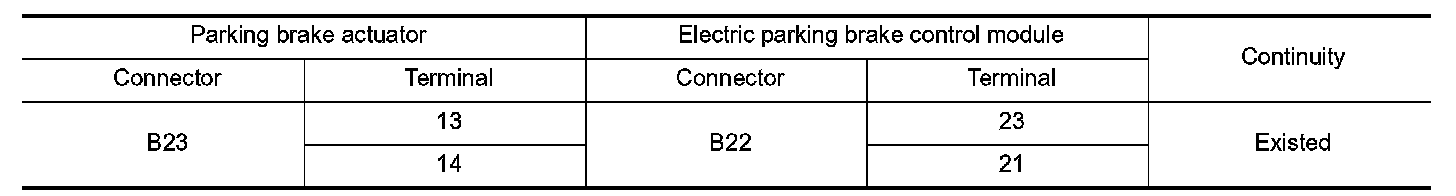

3.Check the continuity between parking brake actuator and electric parking brake control module harness connector.

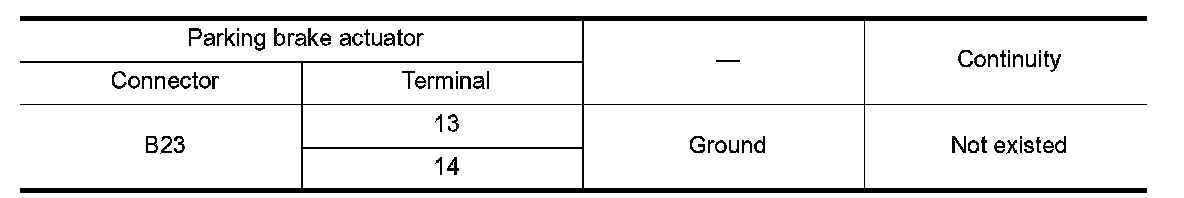

4.Check the continuity between parking brake actuator and ground.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace error-detected parts.
3. CHECK PARKING BRAKE ACTUATOR CIRCUIT (2)

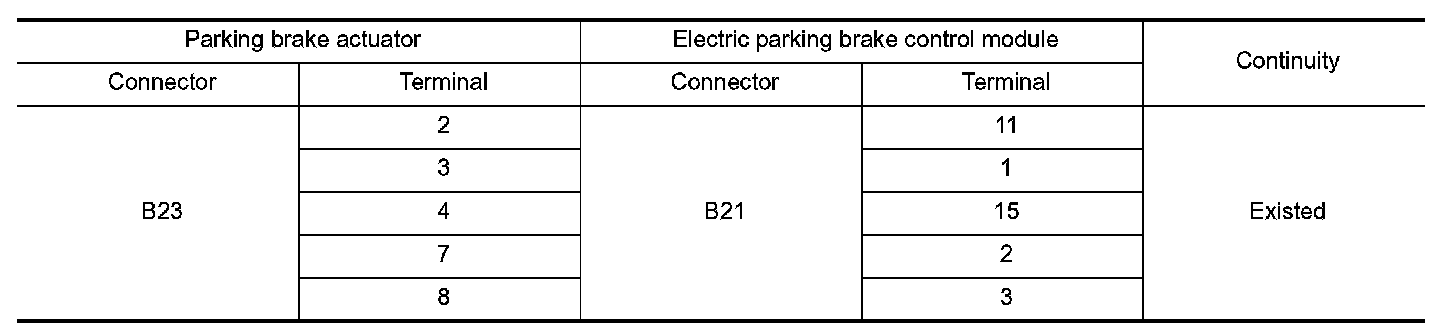

1.Check the continuity between parking brake actuator and electric parking brake control module harness connector.

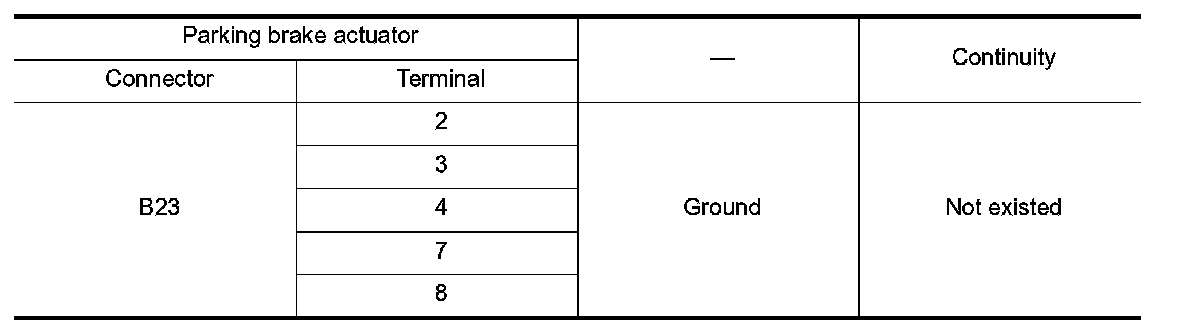

2.Check the continuity between parking brake actuator and ground.
Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace error-detected parts.
4. PERFORM SELF-DIAGNOSIS
With CONSULT
1.Connect parking brake actuator harness connector.
2.Connect electric parking brake control module harness connector.
3.Turn the power switch OFF to ON.
4.Erase self-diagnosis result for "EHS/PKB".
5.Turn the power switch OFF, and wait 10 seconds or more.
CAUTION:
Be sure to perform the operation above.
6.Turn the power switch ON.
7.Pull parking brake switch to activate electric parking brake.
8.Push parking brake switch to release electric parking brake.
9.Perform self-diagnosis for "EHS/PKB".
Is any DTC detected?
YES ("C11E0")-Replace parking brake actuator. Refer to "Removal and Installation" Removal And Installation.
YES (Except "C11E0")-Check the DTC.
NO- INSPECTION END
COMMANDED POS NOT REACH : Diagnosis Procedure
1. CHECK THE CABLE
1.Turn the power switch OFF.
2.Check the each cable to see if it is stuck or broken.
Is the inspection result normal?
YES- GO TO 2.
NO-Replace the parking brake actuator or parking brake rear cable.
- Parking brake actuator: Refer to "Removal and Installation" Removal And Installation.
- Parking brake rear cable: "Removal and Installation" Removal And Installation.
2. CHECK PARKING BRAKE ACTUATOR CIRCUIT (1)
1.Disconnect parking brake actuator harness connector.
2.Disconnect electric parking brake control module harness connector.

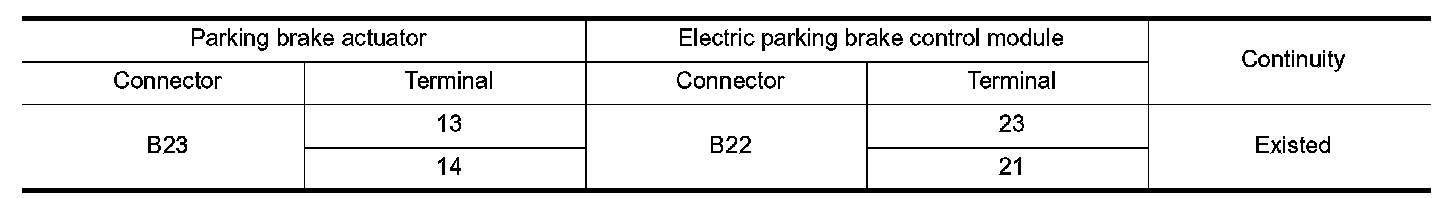

3.Check the continuity between parking brake actuator and electric parking brake control module harness connector.

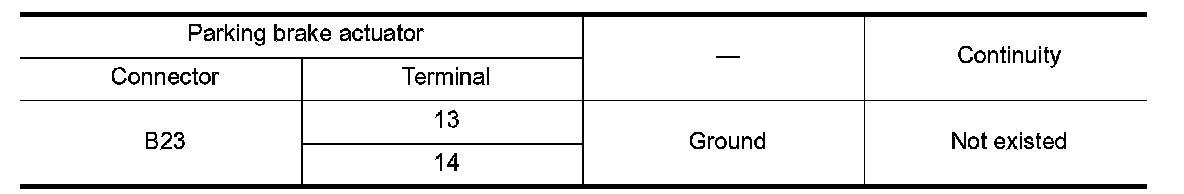

4.Check the continuity between parking brake actuator and ground.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace error-detected parts.
3. CHECK PARKING BRAKE ACTUATOR CIRCUIT (2)

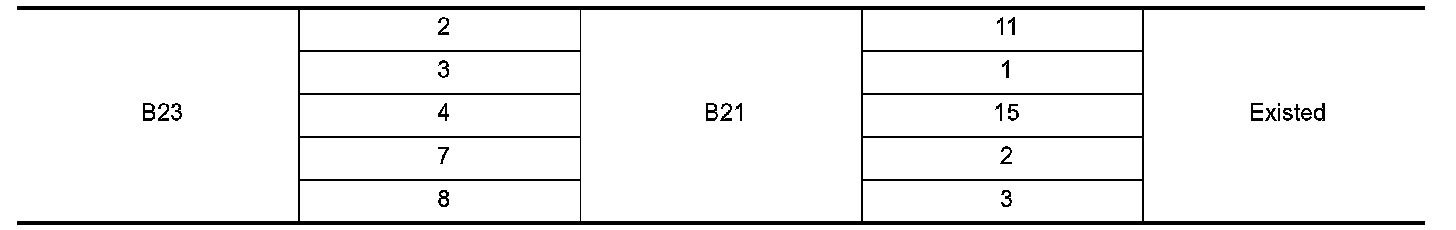

1.Check the continuity between parking brake actuator and electric parking brake control module harness connector.
2.Check the continuity between parking brake actuator and ground.
Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace error-detected parts.
4. PERFORM SELF-DIAGNOSIS
With CONSULT
1.Connect parking brake actuator harness connector.
2.Connect electric parking brake control module harness connector.
3.Turn the power switch OFF to ON.
4.Erase self-diagnosis result for "EHS/PKB".
5.Turn the power switch OFF, and wait 10 seconds or more.
CAUTION:
Be sure to perform the operation above.
6.Turn the power switch ON.
7.Pull parking brake switch to activate electric parking brake.
8.Push parking brake switch to release electric parking brake.
9.Perform self-diagnosis for "EHS/PKB".
Is any DTC detected?
YES ("C11E0")-Replace parking brake actuator. Refer to "Removal and Installation" Removal And Installation.
YES (Except "C11E0")-Check the DTC.
NO- INSPECTION END
MECHANICAL LINKAGE MALFNCTN : Diagnosis Procedure
1. CHECK THE CABLE
1.Turn the power switch OFF.
2.Check the each cable to see if it is stuck or broken.
Is the inspection result normal?
YES- GO TO 2.
NO-Replace the parking brake actuator or parking brake rear cable.
- Parking brake actuator: Refer to "Removal and Installation" Removal And Installation.
- Parking brake rear cable: "Removal and Installation" Removal And Installation.
2. CHECK PARKING BRAKE ACTUATOR CIRCUIT (1)
1.Disconnect parking brake actuator harness connector.
2.Disconnect electric parking brake control module harness connector.
3.Check the continuity between parking brake actuator and electric parking brake control module harness connector.
4.Check the continuity between parking brake actuator and ground.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace error-detected parts.
3. CHECK PARKING BRAKE ACTUATOR CIRCUIT (2)
1.Check the continuity between parking brake actuator and electric parking brake control module harness connector.
2.Check the continuity between parking brake actuator and ground.
Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace error-detected parts.
4. PERFORM SELF-DIAGNOSIS
With CONSULT
1.Connect parking brake actuator harness connector.
2.Connect electric parking brake control module harness connector.
3.Turn the power switch OFF to ON.
4.Erase self-diagnosis result for "EHS/PKB".
5.Turn the power switch OFF, and wait 10 seconds or more.
CAUTION:
Be sure to perform the operation above.
6.Turn the power switch ON.
7.Pull parking brake switch to activate electric parking brake.
8.Push parking brake switch to release electric parking brake.
9.Perform self-diagnosis for "EHS/PKB".
Is any DTC detected?
YES ("C11E0")-Replace parking brake actuator. Refer to "Removal and Installation" Removal And Installation.
YES (Except "C11E0")-Check the DTC.
NO- INSPECTION END
PERFORMANCE/INCRRCT OPERAT : Diagnosis Procedure
1. CHECK THE CABLE
1.Turn the power switch OFF.
2.Check the each cable to see if it is stuck or broken.
Is the inspection result normal?
YES- GO TO 2.
NO-Replace the parking brake actuator or parking brake rear cable.
- Parking brake actuator: Refer to "Removal and Installation" Removal And Installation.
- Parking brake rear cable: "Removal and Installation" Removal And Installation.
2. CHECK PARKING BRAKE ACTUATOR CIRCUIT (1)
1.Disconnect parking brake actuator harness connector.
2.Disconnect electric parking brake control module harness connector.
3.Check the continuity between parking brake actuator and electric parking brake control module harness connector.
4.Check the continuity between parking brake actuator and ground.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace error-detected parts.
3. CHECK PARKING BRAKE ACTUATOR CIRCUIT (2)
1.Check the continuity between parking brake actuator and electric parking brake control module harness connector.
2.Check the continuity between parking brake actuator and ground.
Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace error-detected parts.
4. PERFORM SELF-DIAGNOSIS
With CONSULT
1.Connect parking brake actuator harness connector.
2.Connect electric parking brake control module harness connector.
3.Turn the power switch OFF to ON.
4.Erase self-diagnosis result for "EHS/PKB".
5.Turn the power switch OFF, and wait 10 seconds or more.
CAUTION:
Be sure to perform the operation above.
6.Turn the power switch ON.
7.Pull parking brake switch to activate electric parking brake.
8.Push parking brake switch to release electric parking brake.
9.Perform self-diagnosis for "EHS/PKB".
Is any DTC detected?
YES ("C11E0")-Replace parking brake actuator. Refer to "Removal and Installation" Removal And Installation.
YES (Except "C11E0")-Check the DTC.
NO- INSPECTION END
UNEXPECTED OPERATION : Diagnosis Procedure
1. CHECK THE CABLE
1.Turn the power switch OFF.
2.Check the each cable to see if it is stuck or broken.
Is the inspection result normal?
YES-Replace the parking brake actuator or parking brake rear cable.
- Parking brake actuator: Refer to "Removal and Installation" Removal And Installation.
- Parking brake rear cable: "Removal and Installation" Removal And Installation.
NO- GO TO 2.
2. CHECK PARKING BRAKE ACTUATOR CIRCUIT (1)
1.Disconnect parking brake actuator harness connector.
2.Disconnect electric parking brake control module harness connector.
3.Check the continuity between parking brake actuator and electric parking brake control module harness connector.
4.Check the continuity between parking brake actuator and ground.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace error-detected parts.
3. CHECK PARKING BRAKE ACTUATOR CIRCUIT (2)
1.Check the continuity between parking brake actuator and electric parking brake control module harness connector.
2.Check the continuity between parking brake actuator and ground.
Is the inspection result normal?
YES- Replace parking brake actuator. Refer to "Removal and Installation" Removal And Installation.
NO- Repair or replace error-detected parts.
