C10E6

DTC Logic


DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn power switch OFF and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. CHECK DTC DETECTION

With CONSULT
1.Turn the power switch OFF to ON.
2.Perform self-diagnosis for "EHS/PKB".
Is DTC "C10E6" detected?
YES- Proceed to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK ELECTRIC PARKING BRAKE CONTROL MODULE POWER ON POWER SUPPLY

1.Turn the power switch OFF.
2.Disconnect electric parking brake control module harness connector.

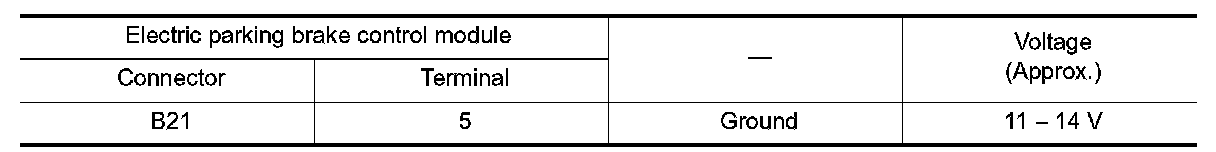

3.Check the voltage between electric parking brake control module harness connector and ground.





4.Turn the power switch ON.

CAUTION:
Never set the vehicle to READY.
5.Check the voltage between electric parking brake control module harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK ELECTRIC PARKING BRAKE CONTROL MODULE POWER ON POWER SUPPLY CIRCUIT

1.Turn the power switch OFF.
2.Check the 10A fuse (#3).
3.Check the continuity and short circuit between electric parking brake control module harness connector terminal (5) and 10A fuse (#3).
Is the inspection result normal?
YES- Perform trouble diagnosis for power ON power supply. Refer to "Wiring Diagram ON POWER SUPPLY -" On Power Supply
NO- Repair or replace error-detected parts.

3. CHECK DATA MONITOR

With CONSULT
Select "EHS/PKB", "DATA MONITOR", "IGNITION SWITCH FROM IPDM" according to this order. Check that data monitor displays when power switch is ON or OFF. Refer to "Reference Value" Pinout Values and Diagnostic Parameters.
Is the inspection result normal?
YES- INSPECTION END
NO- Check the BCM. Refer to "BCM : CONSULT Function (BCM BCM)" BCM.
