Traction Motor Inverter

TRACTION MOTOR INVERTER

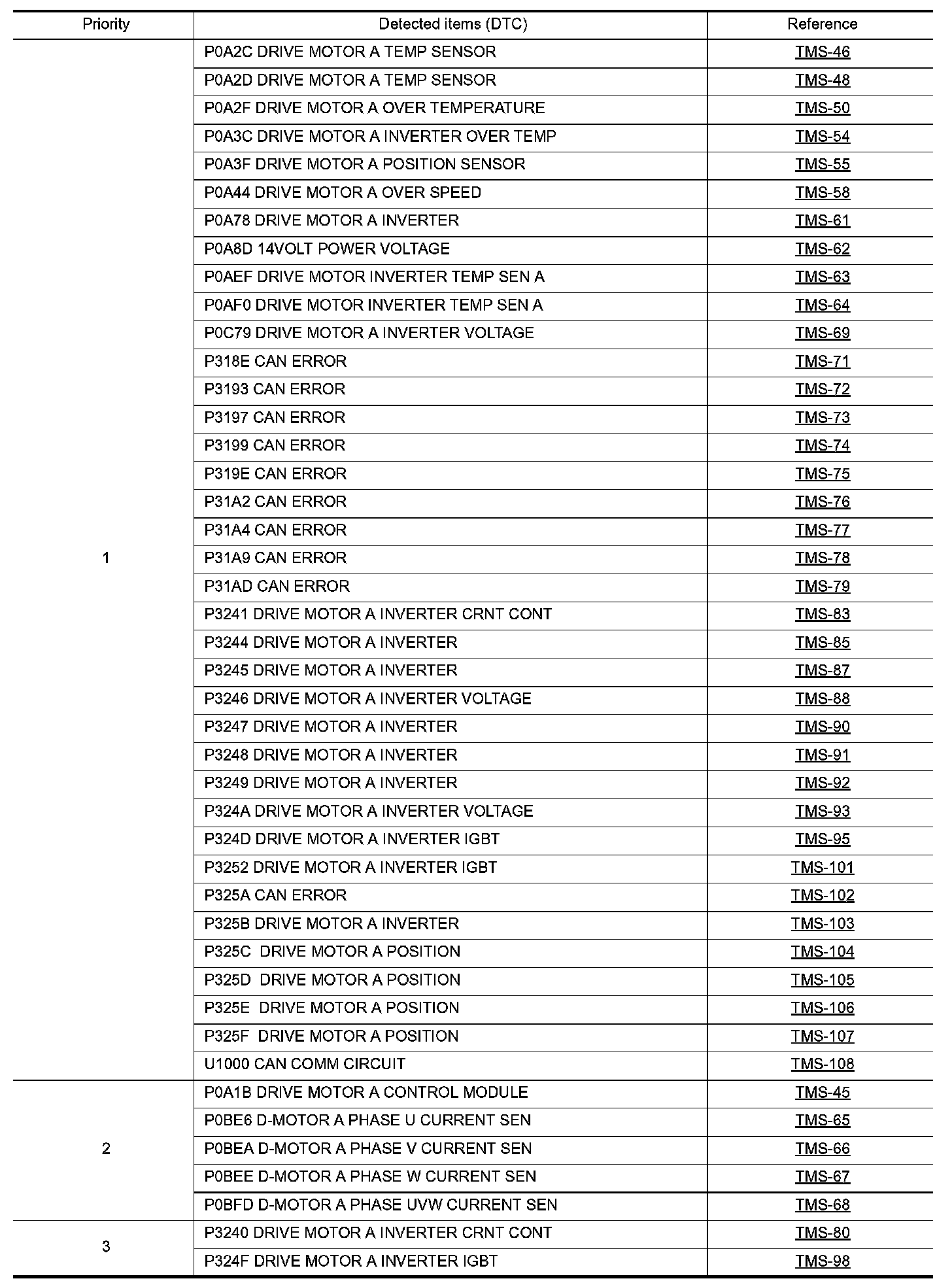

DTC Inspection Priority Chart

If some DTCs are displayed at the same time, perform inspections one by one based on the priority as per thefollowing list.
