P325A

DTC Logic

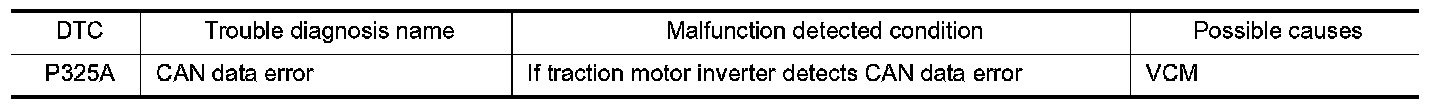

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always power switch OFF and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. CHECK DTC DETECTION

With CONSULT
1.Power switch ON and wait for 5 seconds or more.
2.Check DTC.
Is "P325A" detected?
YES- Go to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. REPLACE VCM

Replace the VCM. Refer to "Removal and Installation" Removal And Installation.
- END
