Antilock Brakes / Traction Control Systems: Service and Repair

VDC OFF SWITCH

Removal and Installation


REMOVAL

1.Remove lower instrument panel. Refer to "Removal and Installation" Removal And Installation.
2.Remove switch panel. Refer to "Removal and Installation" Removal And Installation.

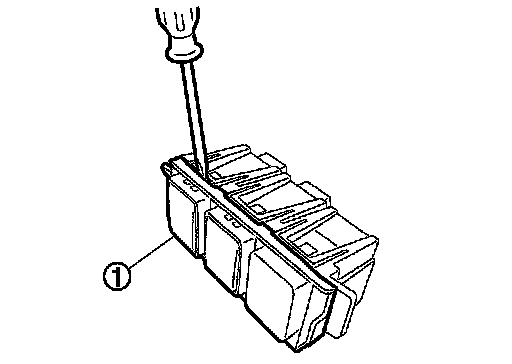

3.Push the pawl of VDC OFF switch (1) and remove VDC OFF
switch from switch panel.

INSTALLATION

Installation is the reverse order of removal.
