Brake System
PRECAUTIONS
Precaution for Brake System
WARNING:
Since dust covering the front and rear brakes has an affect on human body, the dust must be removed with a dust collector. Never splatter the dust with an air blow gun.
- Never reuse drained brake fluid.
- Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off immediately and wash with water if it gets on a painted surface. For brake component parts, never wash them with water.
- Always confirm the specified tightening torque when installing the brake pipes.
- After pressing the brake pedal more deeply or harder than normal driving, such as air bleeding, check each item of brake pedal. Adjust brake pedal if it is outside the standard value.
- Always clean with new brake fluid when cleaning the brake caliper and other components.
- Never use mineral oils such as gasoline or light oil to clean. They may damage rubber parts and cause improper operation.
- Always loosen the brake tube flare nut with a flare nut wrench.

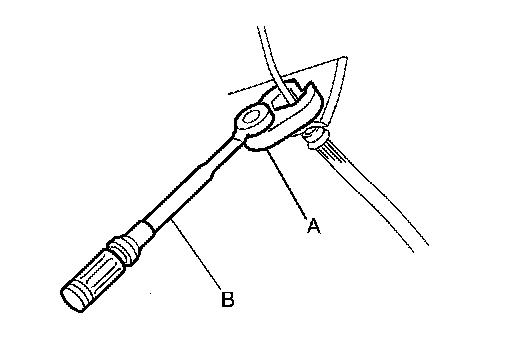

- Tighten the brake tube flare nut to the specified torque with a crowfoot (A) and torque wrench (B).
- Turn the power switch OFF and disconnect the ABS actuator and electric unit (control unit) harness connector or the 12V battery negative terminal before performing the work. Refer to "Precaution for Removing 12V Battery" Precaution For Removing 12V Battery.
- Check that no brake fluid leakage is present after replacing the parts.
- Burnish the brake contact surfaces after refinishing or replacing rotors, after replacing pads, or if a soft pedal occurs at very low mileage.
- Front brake pad: Refer to "BRAKE PAD : Inspection and Adjustment" Inspection.
- Front disc rotor: Refer to "DISC ROTOR : Inspection and Adjustment" Front Disc Brake.
- Rear brake pad: Refer to "BRAKE PAD : Inspection and Adjustment" Inspection.
- Rear disc rotor: Refer to "DISC ROTOR : Inspection and Adjustment" Rear Disc Brake.
- When the brake pedal is operated, an operating sound may be heard from the electrically-driven intelligent brake unit. This occurs when the electrically-driven intelligent brake unit is operating normally and is not a malfunction.
- When the brake pedal is depressed when the EV system is not started, the brake pedal will feel heavy and the stroke will be shorter. When the unfamiliar feeling disappears and the brake warning lamp is OFF after the brake pedal was depressed, then this is not a malfunction. When the brake warning lamp is ON, use
CONSULT and perform the "BRAKE" self diagnosis.
- When there is a malfunction in the power system of the electrically-driven intelligent brake unit (no voltage is generated), voltage is temporarily supplied to the electrically-driven intelligent brake unit from the brake power supply backup unit. At the same time, the brake warning lamp (red) and brake system warning lamp (yellow) turn ON, and the warning buzzer sounds.
- When a malfunction occurs in the electrically-driven intelligent brake unit, the VDC function performs control (boost operation).
- When a malfunction occurs in the DC/DC-J/B and 12V battery, the braking force is determined by the force pressing on the brake pedal (no boost operation). At the same time, the brake warning lamp (red) and the brake system warning lamp (yellow) turns ON.
- When a malfunction occurs in the electrically-driven intelligent brake and in the VDC function, the braking force is determined by the force pressing on the brake pedal (no boost operation). At the same time, the brake warning lamp (red) and brake system warning lamp (yellow) turn ON.
- When a malfunction occurs in the electrically-driven intelligent brake, VDC function, and power system, then cooperative regenerative brake control is not performed.
- When a malfunction occurs in the brake power supply backup unit, the brake system warning lamp (yellow)
turns ON.
