Door Harness




HARNESS LAYOUT

Door Harness


FRONT DOOR HARNESS (LH SIDE)

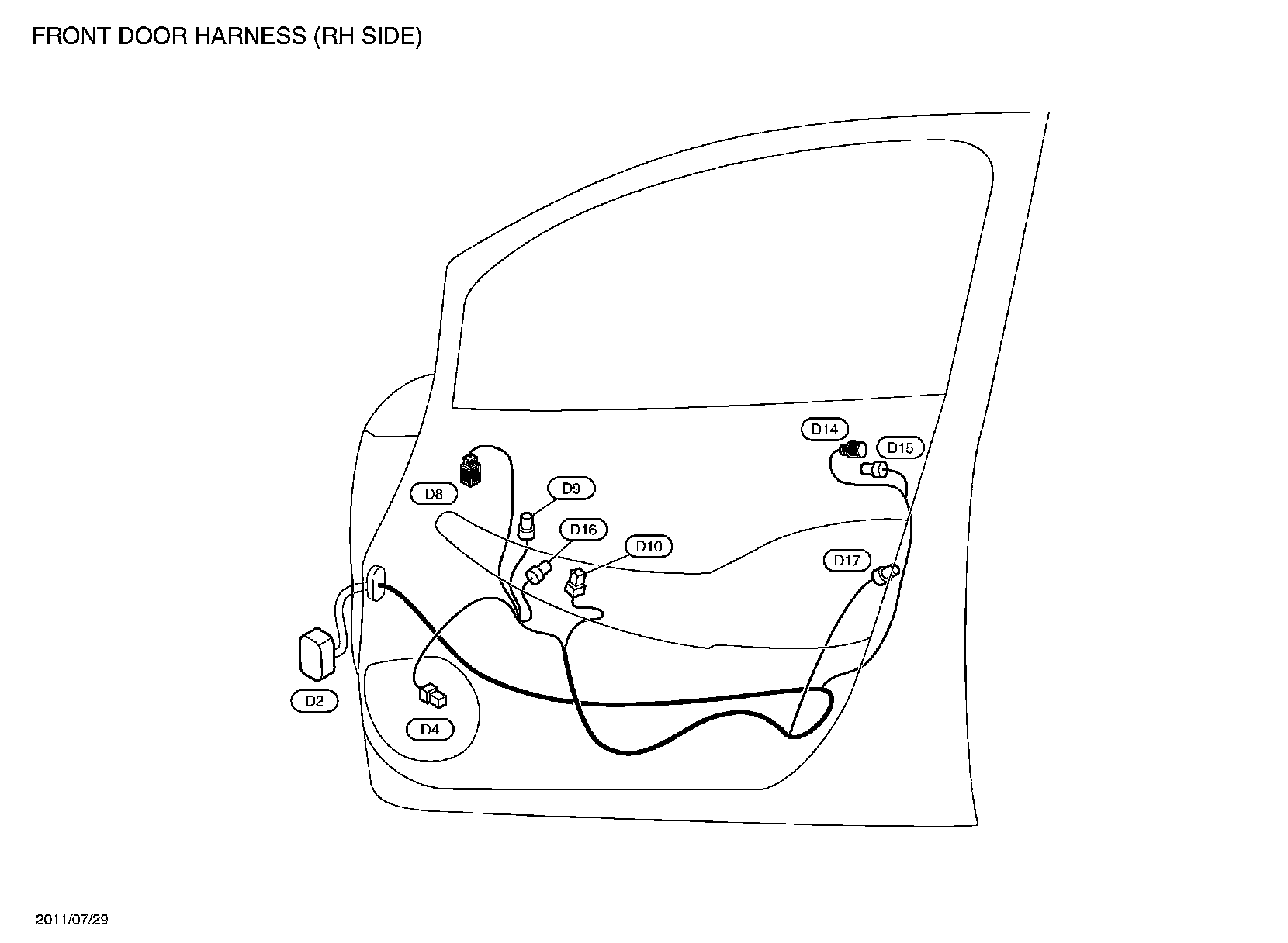

FRONT DOOR HARNESS (RH SIDE)

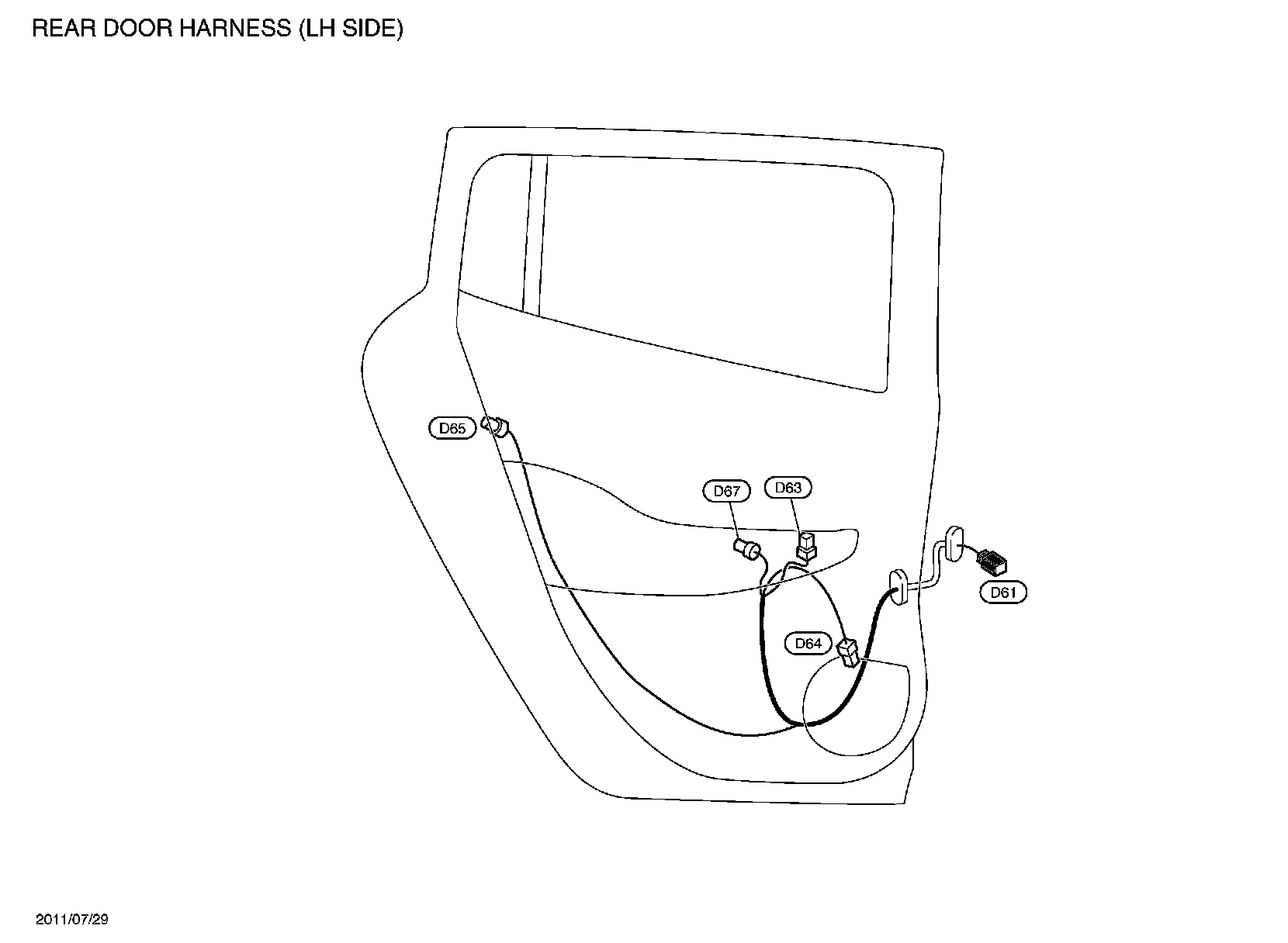

REAR DOOR HARNESS (LH SIDE)







REAR DOOR HARNESS (RH SIDE)

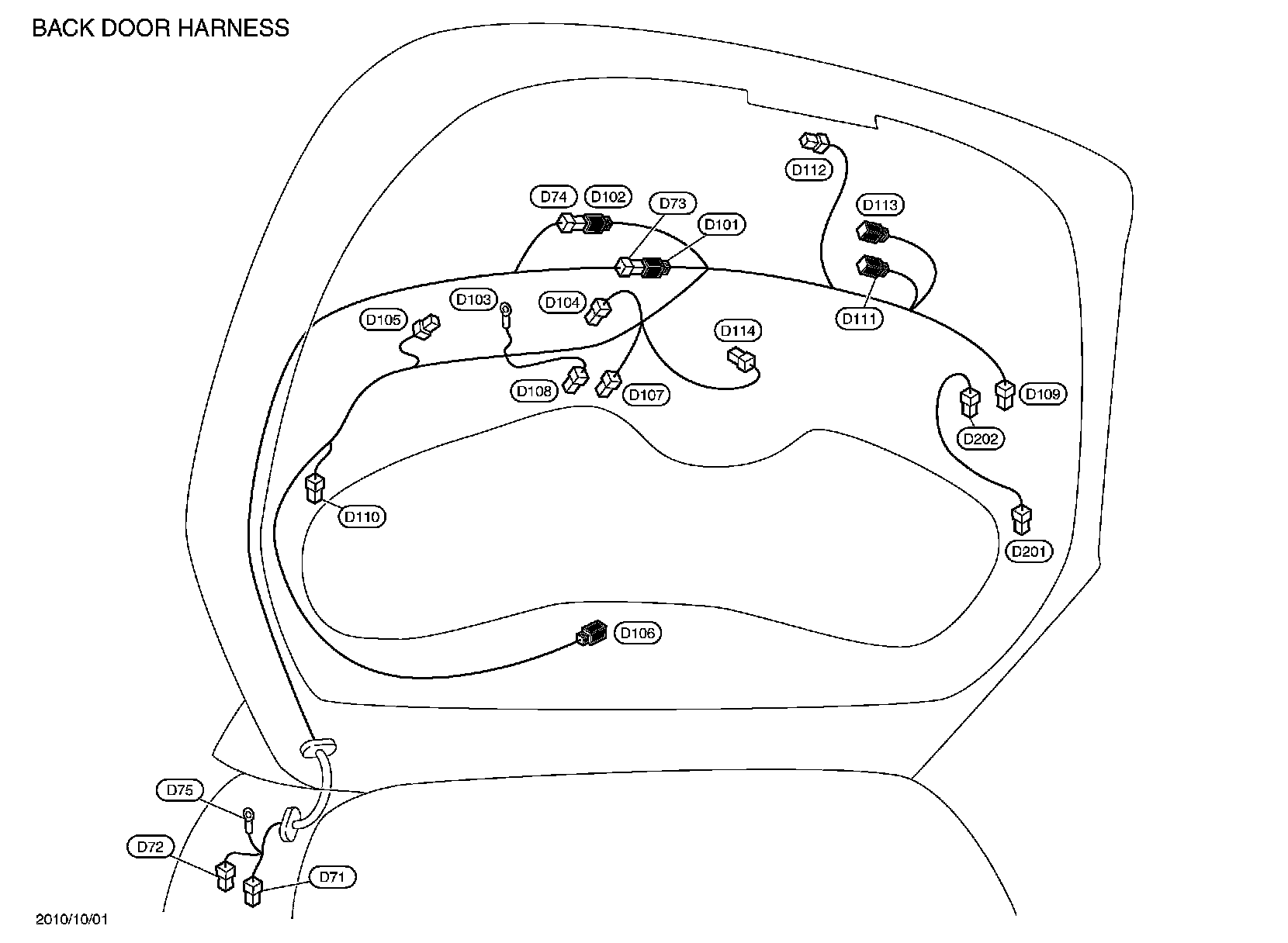

BACK DOOR HARNESS
