Coolant Temperature Sensor

COMPONENT PARTS

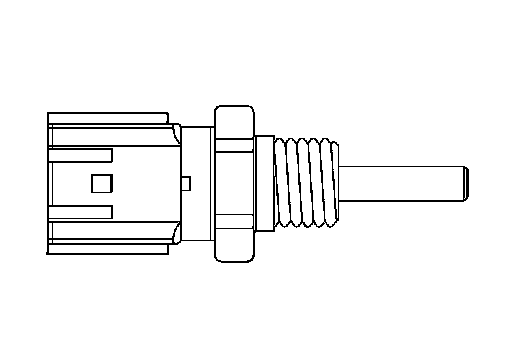

Coolant Temperature Sensor






The coolant temperature sensor is detects the coolant temperature.

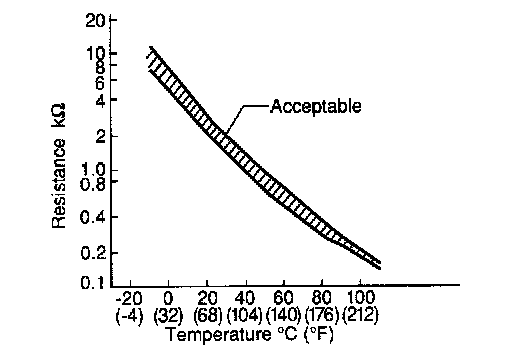

This sensor uses a thermistor that changes its electrical resistance according to the temperature. VCM detects a voltage change according to electrical resistance change.
