Cabin Air Filter / Purifier: Description and Operation

COMPONENT PARTS

In-cabin Microfilter


COMPONENT DESCRIPTION






- For improving visibility during work to replace the in-cabin microfilter, a glove box mask (1) is adopted inside the glove box.





- The A/C unit utilizes a filter cover (1) and in-cabin microfilter.

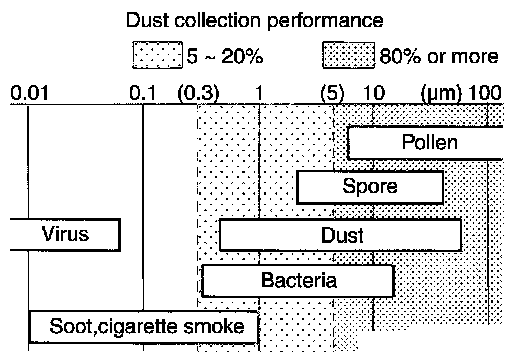

- The in-cabin microfilter used can remove dust, pollen, and dirt that is approximately 0.3 micrometers in size or larger.
- The in-cabin microfilter is replaced regularly at the following times. However, the filter lifetime may be lower depending on the region of use and how often the A/C is used. If the discharged air flow significantly decreases or glass fogging occur more often when the A/C is used, the filter needs to be replaced.
