How To Disconnect High Voltage

CAUTIONS AS TO HIGH VOLTAGE

How to Disconnect High Voltage

PROCEDURE FOR DISCONNECTING HIGH VOLTAGE

Be sure to follow the procedure below and disconnect the high voltage before performing inspection or servicing of the high voltage system.
1.Turn power switch OFF.

CAUTION:
The worker must keep the intelligent key on his/her person.
2.Disconnect 12V battery negative terminal.
3.Remove service plug, following below procedure.

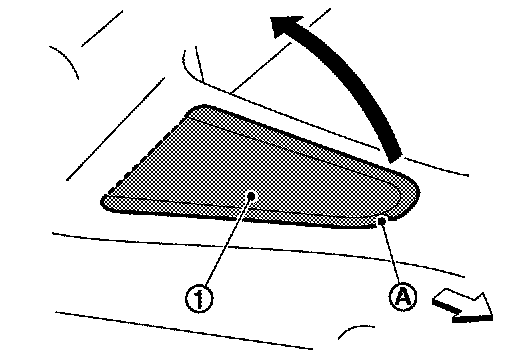

a.Put finger to the notched part (A), and pull of the floor carpet (1).

White arrow indicates : Vehicle front

b.Remove inspection hole cover installation bolt (A) and take the inspection hole cover (1) off.

White arrow indicates : Vehicle front

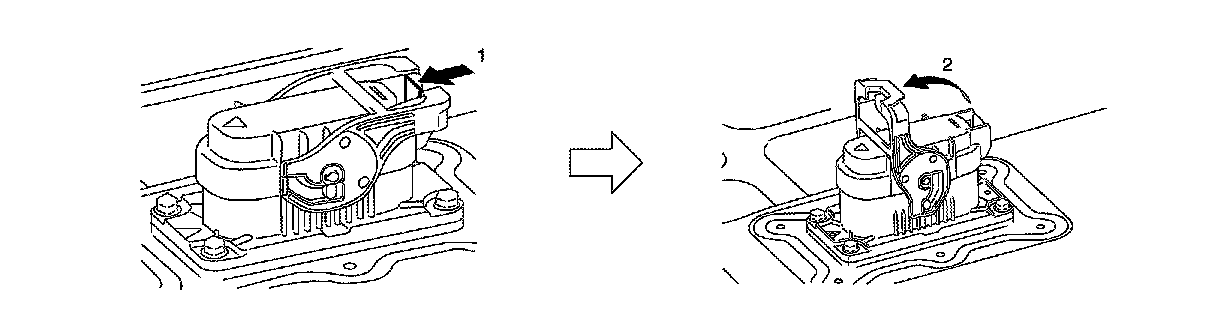

c.Remove the service plug.

WARNING:
- Immediately insulate removed high voltage connectors and terminals with insulating tape.
- Be sure to put the removed service plug in your pocket and carry it with you so that another person does not accidentally connect it while work is in progress.
4.Wait for a minimum of approximately 10 minutes after the service plug is removed.

PROCEDURE FOR CONNECTING HIGH VOLTAGE

1.Check that 12V battery negative terminal is disconnected.
2.Install service plug as per the following steps.
