High Voltage Safety Measures

2-2 - High Voltage Safety Measures
The above safety measures are set against the high voltage system.





2-2.1 - Warning Label

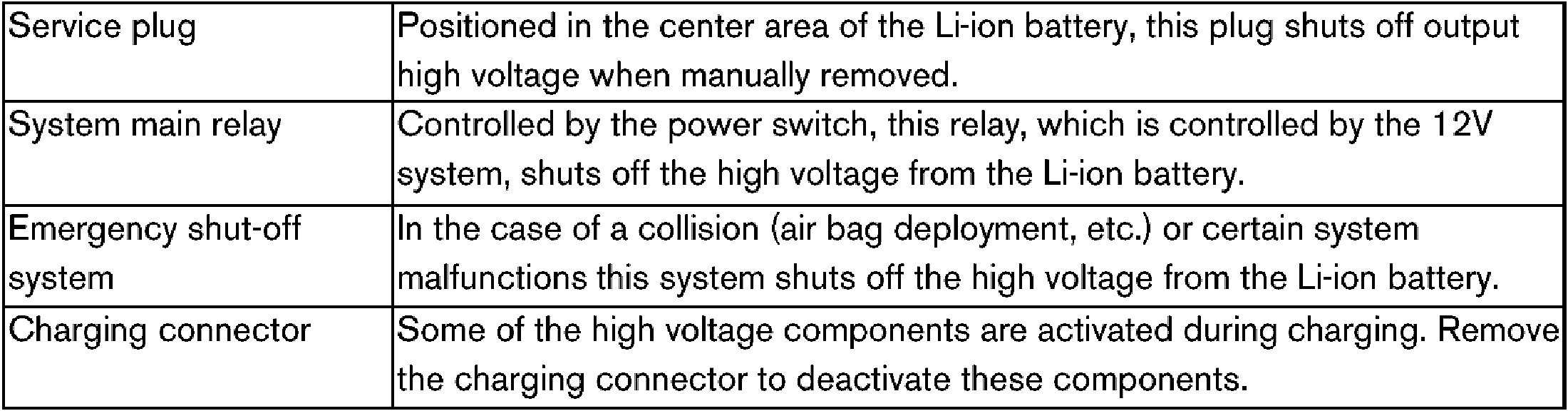

2-3 - High Voltage Circuit Shut-Off System
The high voltage can be shut off by the above methods.

2-4 - Preventing Electrical Shock
1. If it is necessary to touch any of the high voltage harnesses or components, please wear appropriate PPE and shut off the high voltage system by referring to the High Voltage System Shut-Down Procedure.
2. To avoid the risk of electrocution, do not touch the inside of the Li-ion battery with bare hands after shutting of the high voltage system. The Li-ion battery maintains charge even though the high voltage system is shut down.
3. Cover damaged high voltage components with insulated tape.
