Procedure A: Turning Off the Power Switch

Procedure A: Turning OFF the Power Switch
1. Check the READY indicator status. If it is ON, the high voltage system is active.





2. Press the power switch once to turn OFF the high voltage system. The verify whether the READY Indicator is OFF.

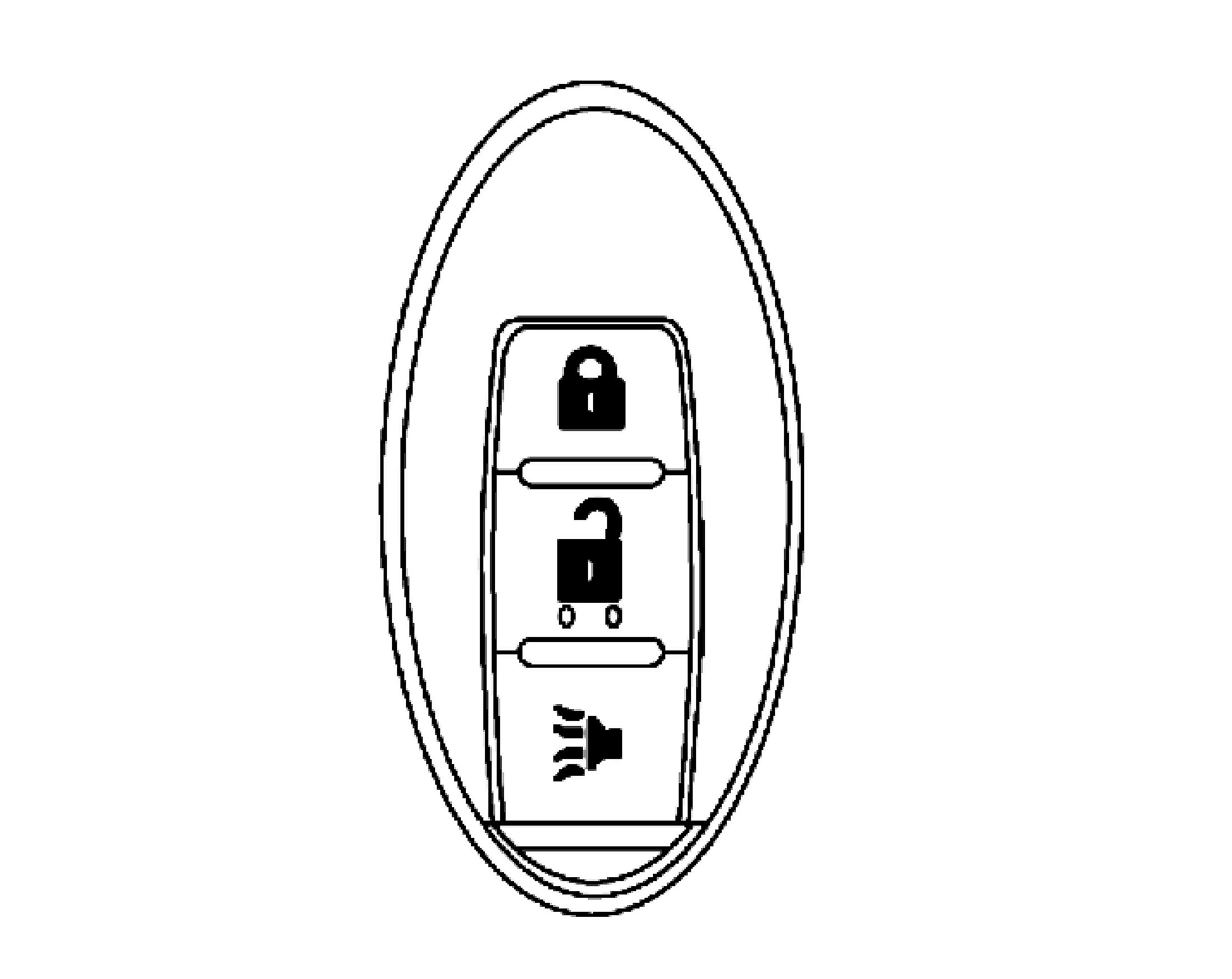

3. If possible, keep the Nissan Intelligent Key at least 5 meters (16 feet) away from the vehicle.





4. Open the hood.





5. Disconnect the negative (-) 12V battery cable (1). Insulate the negative (-) battery cable terminal with insulated tape.
6. Wait ten (10) minutes for complete discharge of the high voltage condenser after the power switch has been turned OFF and the battery cable has been disconnected.
7. Perform the first response action.
